Description
Professional laser projector, DLP, WUXGA (1920x1200), 7000 lm, 16:10, 36 dB, IP6X, 366 W, 100-240 V, 50/60 Hz, 374 x 302 x 117 mm, 6.3 kg
At 7000 lumens, with 4K and HDR compatibility, the ZU707T features a dust-resistant IP6X certified optical engine for 24/7 operational capabilities and low maintenance. The ZU707T projector features an extremely long-life laser technology, manual horizontal and vertical lens shift and built-in 15W speakers.
Suitable for a wide variety of applications, this projector is perfect for anywhere that requires a clean bright image including large venues, classrooms, lecture theatre's, museums, houses of worship, digital signage, simulation and immersive installations.
The added control flexibility of HDBaseT 3.0 and LAN make this projctor an affordable set and forget solution.
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
Superior contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.
HDR and HLG compatible
Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.
IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
Auto keystone
Auto keystone automatically adjusts the trapezoid effect to create a perfectly aligned image when a projector is off-axis, or the desired projection surface is not perfectly flat.
Game mode
Game mode optimises your projector for maximum contrast and vivid colours to capture every detail - leaving you time to focus on winning.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control systems
MHL
Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
USB-Power
Use the USB-A port to power external devices (5V/1.5A)
Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used.
Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.
24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.
360 projection
With 360° projection, images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.
Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Key Features
- Control with HDBaseT 3.0, RS232 and OMSL
- 30,000 hours maintenance-free laser light source
- 4K, HDR and HLG Compatibility
Description
High brightness professional laser projectorAt 7000 lumens, with 4K and HDR compatibility, the ZU707T features a dust-resistant IP6X certified optical engine for 24/7 operational capabilities and low maintenance. The ZU707T projector features an extremely long-life laser technology, manual horizontal and vertical lens shift and built-in 15W speakers.
Suitable for a wide variety of applications, this projector is perfect for anywhere that requires a clean bright image including large venues, classrooms, lecture theatre's, museums, houses of worship, digital signage, simulation and immersive installations.
The added control flexibility of HDBaseT 3.0 and LAN make this projctor an affordable set and forget solution.
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
Superior contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.
HDR and HLG compatible
Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.
IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
Auto keystone
Auto keystone automatically adjusts the trapezoid effect to create a perfectly aligned image when a projector is off-axis, or the desired projection surface is not perfectly flat.
Game mode
Game mode optimises your projector for maximum contrast and vivid colours to capture every detail - leaving you time to focus on winning.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control systems
MHL
Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
USB-Power
Use the USB-A port to power external devices (5V/1.5A)
Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used.
Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.
24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.
360 projection
With 360° projection, images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.
Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.073 billion colours |
| Projector native resolution | WUXGA (1920x1200) |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 800.1 - 7665.7 mm (31.5 - 301.8") |
| Projection distance | 1.3 - 7.8 m |
| Contrast ratio (typical) | 300000:1 |
| Zoom capability | Yes |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 5 - 140 kHz |
| Uniformity | 85% |
| Keystone correction, vertical | -30 - 30° |
| Keystone correction, horizontal | -30 - 30° |
| Projection technology | DLP |
| Projector brightness | 7000 ANSI lumens |
| Zoom type | Manual |
| Lamps | |
| Light source type | Laser |
| Service life of light source | 30000 h |
| Light source | |
| Light source type | Laser |
| Service life of light source | 30000 h |
| Lens system | |
| Zoom capability | Yes |
| Focal length range | 17.63 - 27.9 mm |
| Horizontal lens shift range | -10 - 10% |
| Vertical lens shift range | 100 - 120% |
| Throw ratio | 1.2:1 - 1.92:1 |
| Offset | 120% |
| Zoom type | Manual |
| Scanning frequency | |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 5 - 140 kHz |
| Video | |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 15 W |

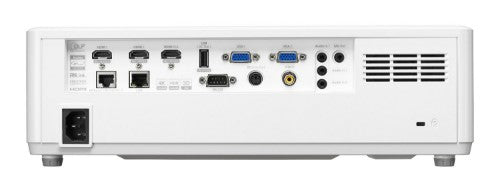

| Ports & interfaces | |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| Composite video in | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Serial interface type | RJ-45, RS-232 |
| Component video (YPbPr/YCbCr) in | 0 |
| 3D sync port | Yes |
| USB 2.0 Type-A ports quantity | 1 |
| Network | |
| Smart TV | No |
| Ethernet LAN | Yes |
| Storage | |
| Card reader integrated | No |
| Sound emission | |
| Noise level | 36 dB |
| Noise level (economic mode) | 33 dB |
| Technical details | |
| Product colour | White |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish, Vietnamese |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Market positioning | Business |
| Password protection | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish, Vietnamese |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 5 - 140 kHz |
| Noise level | 36 dB |
| Noise level (economic mode) | 33 dB |
| Number of OSD languages | 26 |
| Features | |
| Interactive | No |
| Password protection | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish, Vietnamese |
| Noise level | 36 dB |
| Noise level (economic mode) | 33 dB |
| Number of OSD languages | 26 |
| International Protection (IP) code | IP6X |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 15 W |
| Design | |
| Market positioning | Business |
| Product type | Standard throw projector |
| Cable lock slot type | Kensington |
| Product colour | White |
| Cable lock slot | Yes |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 366 W |
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 300 W |
| Packaging data | |
| Package weight | 8.6 kg |
| Security | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Other features | |
| Remote control type | IR |
| Power consumption (economy mode) | 300 W |
| Weight & dimensions | |
| Weight | 6.3 kg |
| Width | 374 mm |
| Depth | 302 mm |
| Height | 117 mm |
| Package weight | 8.6 kg |
| Packaging content | |
| Remote control included | Yes |
| Remote control type | IR |
| Manual | Yes |
| Cables included | AC |
| Batteries included | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
