Description
Miracast, Airplay, Google Cast, 802.11ac, 1000Base-T RJ-45 LAN, 4K30
App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.
Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.
Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.
Multi-Network architecture
No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously, without compromising the security of your internal network.
Multi-View
Up to four presenters in-room can share content simultaneously during a meeting making it easier for real-time editing of materials.
Quick Switch
Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.
Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.
HDMI Input
Combines wireless display and HDMI® switching in a single device for a fully functional for wired and wireless connections.
Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.
Key Features
- Interactive flat panel support. Windows 11 users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications
- Extended desktop. Windows and macOS users can wirelessly extend screens to ensure content privacy
- Multi-View. Up to four presenter devices can share content on-screen simultaneously, making editing materials in real time easier
- Easy guest connections. Unique multi-network architecture ensures employees and guests connect using Miracast™, local Wi-Fi mode, or network, providing flexibility for different network policies and deployment needs
- Quick Switch Mode. Switch between presenters without manually disconnecting a presenter
- Local Wi-Fi, Bridge Mode. Securely leverage wired or wireless network connectivity, avoiding complex network configurations
- Digital Signage. Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability
- Alerts. A powerful tool to enhance your existing Emergency Response Programs, Alerts instantly transmits notifications to any room with a ScreenBeam-enabled display
- Centralized Management and Security. Central Management System – Enterprise (CMS-E) large-scale device deployment and management included free. Alternatively, a web browser can manage the FLEX receiver locally through a Local Management Interface (LMI)
Description

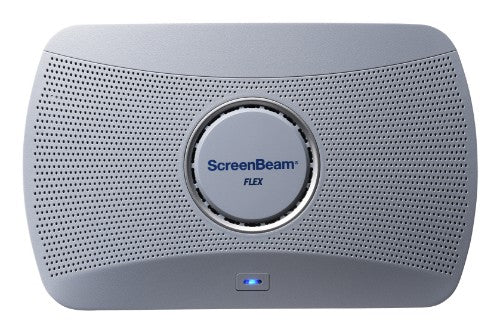

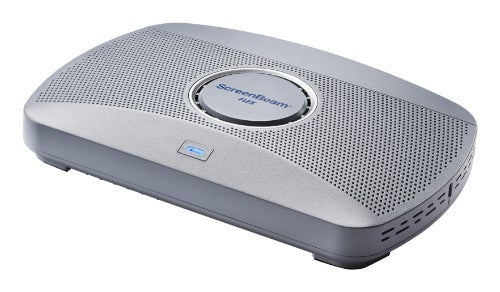

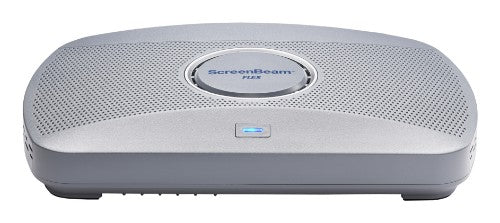

ScreenBeam FLEX delivers 4K wireless presentation, multi-user display, touch/inking support, and digital signage—empowering SMBs and higher ed to affordably turn any space into a secure, dynamic collaboration hub.App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.
Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.
Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.
Multi-Network architecture
No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously, without compromising the security of your internal network.
Multi-View
Up to four presenters in-room can share content simultaneously during a meeting making it easier for real-time editing of materials.
Quick Switch
Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.
Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.
HDMI Input
Combines wireless display and HDMI® switching in a single device for a fully functional for wired and wireless connections.
Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.
Specifications
| Design | |
|---|---|
| Form factor | Desktop |
| Product colour | White |
| Certification | FCC, RED, RoHS, UL |
| Features | |
| AirPlay mirroring | Yes |
| Miracast | Yes |
| Google Cast | Yes |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, EAP-TLS |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Dual-band | Yes |
| Bluetooth | Yes |

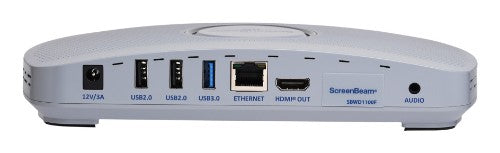

| Ports & interfaces | |
| Interface | HDMI + USB Type-A |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| DC-in jack | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Power | |
| Power source type | DC |
| Input voltage | 12 DC |
| Power consumption (max) | 24.8 W |
| Power consumption (typical) | 8.4 W |
| Input current | 3 A |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mobile operating systems supported | Android 8.0, Android 8.1, Android 9.0, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16 |
| Mac compatibility | Yes |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | 20 - 85 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 144 mm |
| Height | 37.5 mm |
| Weight | 453.5 g |
| Packaging content | |
| Cables included | HDMI |
