Description
L2, 8x RJ-45, 16 Gbps Switching capacity, PoE, 52 W
Key Features
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input*
- 52W PoE availability with the included AC power adapter
Description
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Throughput | 8 Gbit/s |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| Reset button | Yes |
| Product colour | White |
| LED indicators | Activity, Link, PoE, Status |
| Housing material | Polycarbonate (PC) |
| Rack mounting | No |
| Power | |
| Power consumption (max) | 9 W |
| Power supply included | Yes |
| Number of power supply units | 1 |
| Input current | 1.1 A |
| DC input voltage | 44 - 57 V |
| Power source | DC/PoE |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 7 |
| Total Power over Ethernet (PoE) budget | 42 W |
| Power over Ethernet (PoE) ports quantity | 7 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 203 mm |
| Depth | 76 mm |
| Height | 33 mm |
| Weight | 320 g |

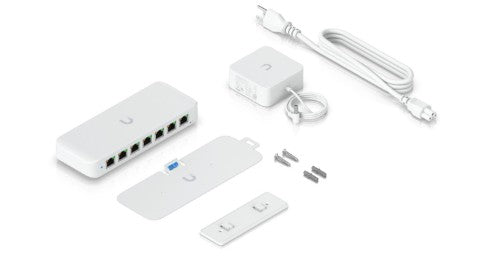

| Packaging content | |
| Manual | Yes |
| Cables included | Power |
| Technical details | |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
| Rack mounting | No |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication | |
| LED indicators | Activity, Link, PoE, Status |
| Packaging data | |
| Manual | Yes |
| Cables included | Power |
