Description
QCA9531, RouterOS v7, 650 MHz, PoE-IN, DC, 802.11b/g/n, Wi-Fi 4, Mini SIM
The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a massive price drop!

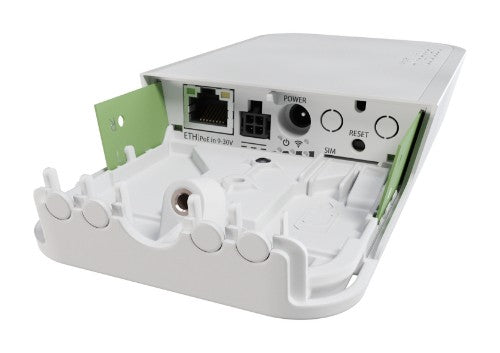

wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.
Description

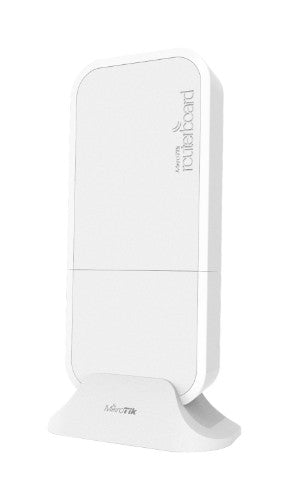

wAP LTE kit is a tiny weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on the tightest budget possible. It features an Ethernet port with passive PoE-in, but there are more ways to power this affordable access point: there’s also a standard DC jack and an automotive plug.The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a massive price drop!
wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Certification | CE, E-MARK, EAC, ROHS |
| Maximum data transfer rate | 300 Mbit/s |
| Operating system installed | RouterOS |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Compatible operating systems | RouterOS v7 |
| Built-in processor | Yes |
| Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Operating system installed | RouterOS |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Compatible operating systems | RouterOS v7 |
| Built-in processor | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 9 - 30 V |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Design | |
| International Protection (IP) code | IP54 |
| Product colour | White |
| Certification | CE, E-MARK, EAC, ROHS |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | CE, E-MARK, EAC, ROHS |
| Mobile network | |
| SIM card slot | Yes |
| SIM card type | MiniSIM |
| Packaging data | |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Packaging content | |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Packaging content | 24V 0.8A power adapter Gigabit PoE injector K-52 fastening set K-50 locking set wAP desktop stand wAP mount 0.35m 4pin Automotive adapter cable wAP ceiling mount bracket |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| System requirements | |
| Compatible operating systems | RouterOS v7 |
