Description

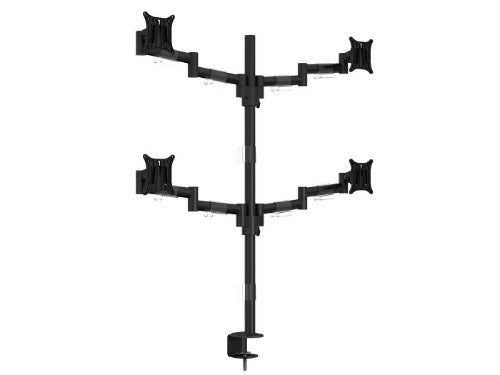

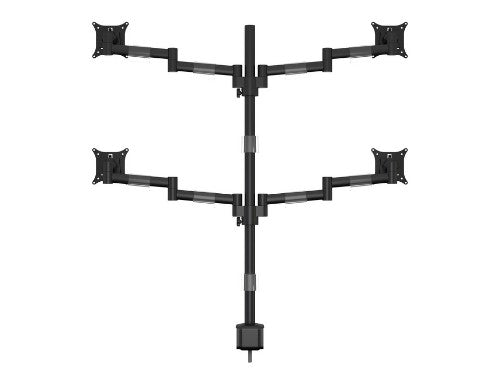

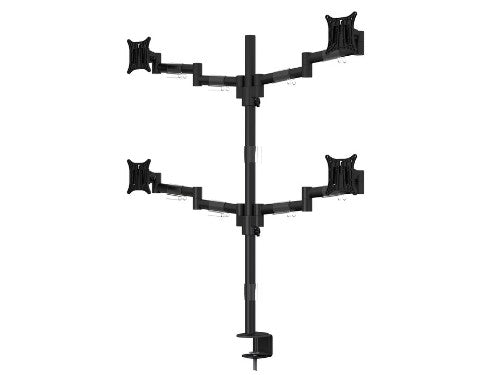

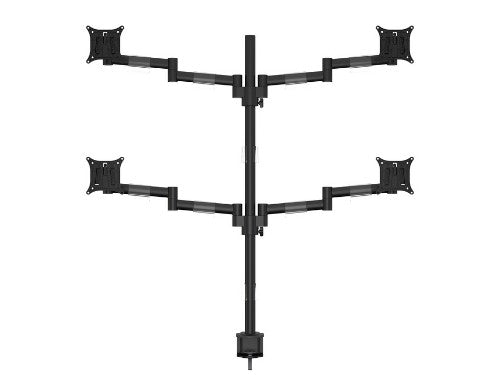

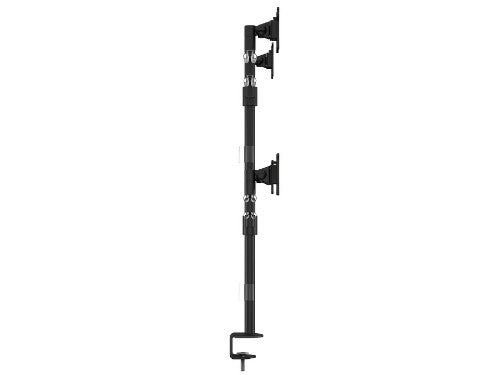

M VESA Deskmount Officeline Quad Black - Mounting kit ( quad -screen, back to back mounting arm ) for LCD display - black - screen size: 15" - 30" - table mount
Now finally comfort and ergonomy is really possible to achieve. With the M VESA Deskmount Officeline Quad Black you can easily set the screen to your specific position. By doing so you save back, neck and eyes. The M VESA Deskmount Officeline Quad Black is your new office partner giving great flexibility and ease of adjustment. The M VESA Deskmount Officeline Quad Black works with almost all LCD screens on the market supporting VESA standards of 75/100mm holding screens weight up to 8 kg each.
Key Features
- A high level designed product line for office use
- Holds up to 4 screens simultaneous
- Made for the semi professional user
- Creates maximum ergonomic comfort for displays up to 30"
- Simplified installation and simple after adjustment possibilities
- Plexi based cable management (included)
- Optional through hole installation with Grommet Base
- M VESA Deskmount Officeline Grommet Base Black - Art: 5884
Description
Flexible, sleek and streamlined, the M VESA Deskmount Officeline Quad Black frees up space and allows positioning of your display for greater productivity. Reposition your LCD with ease. Up, down, forward and back is now just a matter of your choice.Now finally comfort and ergonomy is really possible to achieve. With the M VESA Deskmount Officeline Quad Black you can easily set the screen to your specific position. By doing so you save back, neck and eyes. The M VESA Deskmount Officeline Quad Black is your new office partner giving great flexibility and ease of adjustment. The M VESA Deskmount Officeline Quad Black works with almost all LCD screens on the market supporting VESA standards of 75/100mm holding screens weight up to 8 kg each.
Specifications
| Mounting | |
|---|---|
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5 cm |
| Minimum screen size | 38.1 cm (15") |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 4 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Bolt-through |
| Maximum weight capacity | 32 kg |
| Maximum screen size | 76.2 cm (30") |
| Ergonomics | |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment range | 0 - 900 mm |
| Pivot angle | -90 - 90° |
| Swivel angle | 360° |
| Tilt angle range | 85 - -60° |
| Height adjustment type | Manual |
| Technical details | |
| Mounting type | Desk |
| Product colour | Black |
| Cable management | Yes |
| Design | |
| Easy to install | Yes |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Package width | 395 mm |
| Package depth | 1055 mm |
| Package height | 160 mm |
| Width | 32 mm |
| Depth | 506 mm |
| Height | 500 mm |
| Weight | 4.1 kg |
| Package type | Box |
| Package weight | 7.9 kg |
| Packaging data | |
| Package type | Box |
| Package weight | 7.9 kg |
| Logistics data | |
| Shipping (inner) case width | 39.5 cm |
| Shipping (inner) case length | 105.5 cm |
| Shipping (inner) case height | 16 cm |
| Shipping (inner) case gross weight | 7.9 kg |
| Products per shipping (inner) case | 1 pc(s) |
| Other features | |
| Mounting type | Desk |
| Mounting | Clamp/Bolt-through |
