Description

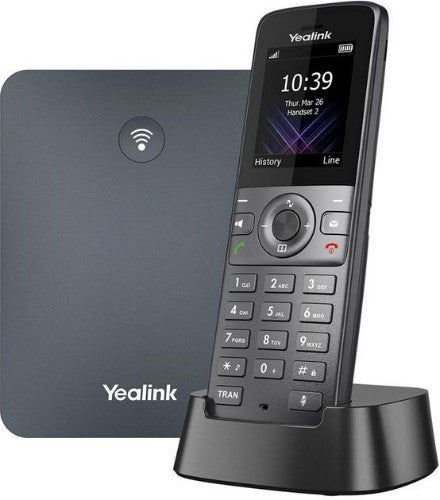

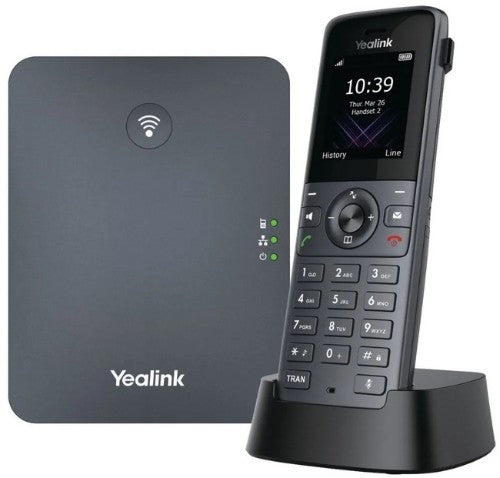

W74P DECT Phone System, 1.8" 128 x 160 TFT color screen
Supporting registration with up to 10 Yealink W74H DECT handsets, the W74P system is launched with robust processing capacity for up to 10 SIP accounts
and 20 silmultaneous calls. More flexibility and mobility could be enabled through up to 6 optional repeaters for extended network coverage.
Clarity and Stability for Premium Mobile Communication
Yealink new W74P embraces upgraded hardware, sophisticated acoustic algorithms, noise cancellation technology and enhanced signal strength, providing the flexible workforces with a high-quality mobile communication environment. Even in complex surroundings,users can have hassle-free conversations through the noise-free conditions and larger volume.
Key Features
- Scalable solution with superior performance
- Optimized wireless communication experience for mobile working
- Easy deployment and efficient management
- Seamlessly compatible with Yealink full-range DECT endpoints
Description
High-performance and Scalable for Productive CommunicationSupporting registration with up to 10 Yealink W74H DECT handsets, the W74P system is launched with robust processing capacity for up to 10 SIP accounts
and 20 silmultaneous calls. More flexibility and mobility could be enabled through up to 6 optional repeaters for extended network coverage.
Clarity and Stability for Premium Mobile Communication
Yealink new W74P embraces upgraded hardware, sophisticated acoustic algorithms, noise cancellation technology and enhanced signal strength, providing the flexible workforces with a high-quality mobile communication environment. Even in complex surroundings,users can have hassle-free conversations through the noise-free conditions and larger volume.
Specifications
| Features | |
|---|---|
| SIP registrar server | Yes |
| Number of function keys | 6 |
| DECT connectable | Yes |
| Maximum outdoor range | 300 m |
| Maximum indoor range | 50 m |
| Handset type | Wireless handset |
| Mounting | Desk/Wall |
| Wall mountable | Yes |
| Keypad number of keys | 25 |
| Headset connectivity | 3.5 mm |
| Handset | Yes |
| Ethernet cable | Yes |
| Product colour | Grey |
| Base station | Yes |
| Backlight keypad | Yes |
| Technical details | |
| SIP registrar server | Yes |
| Number of function keys | 6 |
| DECT connectable | Yes |
| Maximum outdoor range | 300 m |
| Maximum indoor range | 50 m |
| Handset type | Wireless handset |
| Mounting | Desk/Wall |
| Speakerphone | Yes |
| Quick start guide | Yes |
| Keypad number of keys | 25 |
| Headset connectivity | 3.5 mm |
| Handset | Yes |
| Ethernet cable | Yes |
| Base station | Yes |
| Backlight keypad | Yes |
| Security | |
| Security algorithms | SRTP, TLS |
| Design | |
| Product type | IP mobile phone |
| Handset type | Wireless handset |
| Mounting | Desk/Wall |
| Wall mountable | Yes |
| Product colour | Grey |
| Backlight keypad | Yes |
| Performance | |
| DECT connectable | Yes |
| Maximum outdoor range | 300 m |
| Maximum indoor range | 50 m |
| Phone features | |
| Message-waiting indicator (MWI) | Yes |
| Call transfer | Yes |
| SIP registrar server | Yes |
| Number of VoIP accounts | 10 |
| Vibrating alert | Yes |
| Phonebook capacity | 1000 entries |
| Full duplex | Yes |
| Caller ID | Yes |
| Call waiting | Yes |
| Call hold | Yes |
| Call forwarding | Yes |
| Anonymous call rejection | Yes |
| Anonymous call | Yes |
| Call history | Yes |
| Emergency call | Yes |
| Management features | |
| Number of function keys | 6 |
| Keypad number of keys | 25 |
| Display | |
| Touchscreen | No |
| Display resolution | 128 x 160 pixels |
| Display diagonal | 4.57 cm (1.8") |
| Display | TFT |
| Backlight display | Yes |
| Audio | |
| Speakerphone | Yes |
| Noise reduction | Yes |
| Microphone mute | Yes |
| Network | |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Bluetooth version | 5.1 |
| Security algorithms | SRTP, TLS |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Colour | |
| Product colour | Grey |
| Microphone | |
| Microphone mute | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| Ports & interfaces | |
| Headset connectivity | 3.5 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Talk time | 24 h |
| Standby time | 320 h |
| Power over Ethernet (PoE) | Yes |
| AC adapter output voltage | 5 V |
| AC adapter input voltage | 100 - 240 V |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Handset dimensions (WxDxH) | 144.5 x 48 x 21 mm |
| Base dimensions (WxDxH) | 130 x 100 x 25.1 mm |
| Packaging content | |
| AC adapter included | Yes |
| Charger | Yes |
| Number of handles included | 1 pc(s) |
| Quick start guide | Yes |
| Handset | Yes |
| Ethernet cable | Yes |
| Base station | Yes |
| Mounting kit | Yes |
