Description

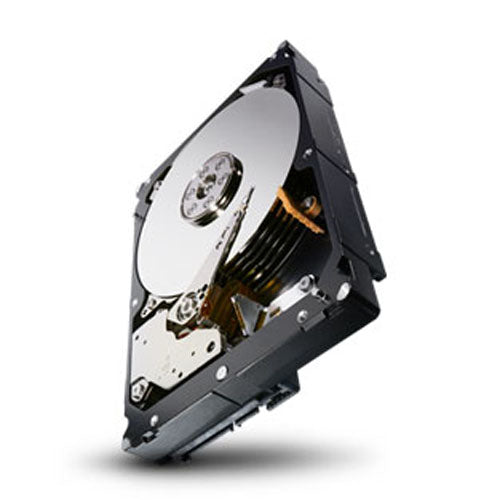

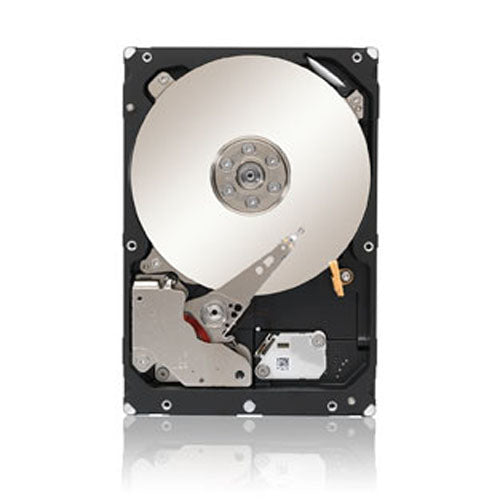

Constellation® ES.3 4TB, 7200rpm, 128MB, SAS 6Gb/s, SED-FIPS
- Highest-capacity enterprise drive, up to 4TB for maximum density server and storage solutions
- Perfect for reliable, 24×7 bulk data storage
- Predictable 7,200-rpm performance even in the most rugged multi-drive SAS or SATA environments
- Best-in-class energy efficiency with low power and cooling requirements
Description
The Seagate® Constellation® ES.3 enterprise HDD delivers the scalability that data centres need to meet their demanding growth of unstructured data reliably.- Highest-capacity enterprise drive, up to 4TB for maximum density server and storage solutions
- Perfect for reliable, 24×7 bulk data storage
- Predictable 7,200-rpm performance even in the most rugged multi-drive SAS or SATA environments
- Best-in-class energy efficiency with low power and cooling requirements
Specifications
| Hard drive | |
|---|---|
| Component for | Server/workstation |
| Average latency | 4.16 ms |
| Mean time between failures (MTBF) | 1400000 h |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| HDD capacity | 4 TB |
| Features | |
| Component for | Server/workstation |
| Interface | SAS |
| Average latency | 4.16 ms |
| Mean time between failures (MTBF) | 1400000 h |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| HDD capacity | 4 TB |
| Storage drive buffer size | 128 MB |
| Power | |
| Power consumption (typical) | 11.86 W |
| Power consumption (idle) | 7.8 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating shock | 70 G |
| Non-operating vibration | 0.25 G |
| Non-operating shock | 300 G |
| Technical details | |
| Harmonized System (HS) code | 84717050 |
| Interface | SAS |
| Mean time between failures (MTBF) | 1400000 h |
| Weight & dimensions | |
| Width | 101.8 mm |
| Weight | 700 g |
| Height | 26.1 mm |
| Depth | 147 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717050 |
| Other features | |
| Interface | SAS |
