Description
VORTEX 360 WHITE
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.

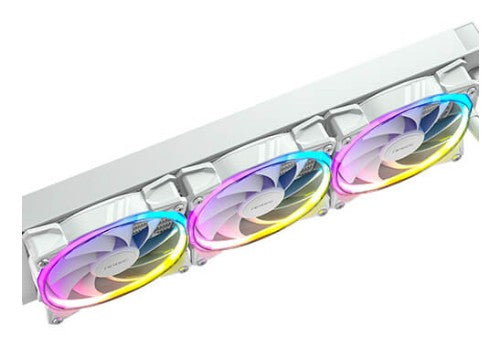

Antec Fusion PWM ARGB Fan
The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.
Description

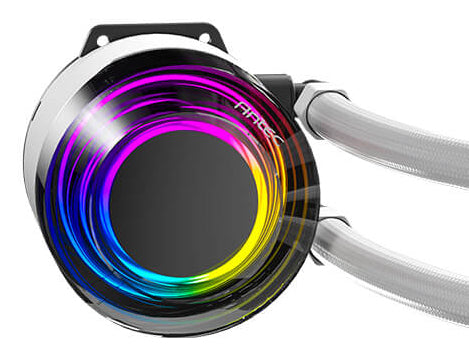

Suspended Spiral Pump Head DesignThe suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.

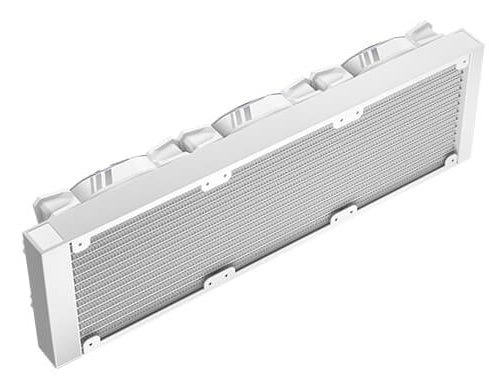

Superior Fin Density
Massive 13 fins dissipate heat rapidly.
Antec Fusion PWM ARGB Fan
The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Bearing type | Hydraulic |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4 |
| Maximum airflow | 57.93 cfm |
| Maximum air pressure | 2.11 mmH2O |
| Quantity per pack | 1 pc(s) |
| Pump connector | 3-pin |
| Fan noise level (max) | 31.24 dB |
| Pump noise level | 28 dB |
| Pump motor speed | 2800 RPM |
| Fan speed (min) | 600 RPM |
| Fan speed (max) | 2000 RPM |
| Pump's mean time to failure (MTTF) | 40000 h |
| Fan's mean time to failure (MTTF) | 40000 h |
| Design | |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Product colour | White |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| LED connector type | 3-pin |
| Technical details | |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4 |
| Maximum airflow | 57.93 cfm |
| Maximum air pressure | 2.11 mmH2O |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Pump connector | 3-pin |
| Power | |
| LED voltage | 5 V |
| Pump power consumption | 3 W |
| Pump voltage | 5 - 12 V |
| Pump current | 0.25 mA |
| Fan voltage | 12 V |
| Fan current | 0.21 A |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Radiator width | 39.7 cm |
| Radiator depth | 2.7 cm |
| Radiator height | 12 cm |
| Pump width | 6.7 cm |
| Pump depth | 4.85 cm |
| Pump height | 6.7 cm |
| Indication | |
| Illumination colour | Multi |
| Other features | |
| Pump connector | 3-pin |
| LED voltage | 5 V |
