Description
1/2.8", 4K, Exmor CMOS, 8MP, 12X/1X, 3.9 mm/46.8 mm, RS-232, RS-422, 100 - 240V, PoE+, 2 kg
12X Optical Zoom.
Adapt Quickly.
The PTZ310UV2’s 12X optical zoom camera, combined with its agile auto-focus, gives every participant the chance to be seen with excellent clarity. Never miss a spectacular moment, no matter how small.
4K Ultra HD Resolution.
Breathtaking
The 4K Ultra HD resolution of the PTZ310UV2 makes every stream impressively clear, thanks to the industry-leading Sony sensor. This excellent image processor is able to automatically adjust video – ensuring great looking scenes no matter the situation or distance.
4K 60 FPS.
HDMI, USB & IP
Recognized by Newtek, the PTZ310UV2 features true 4K 60 fps streaming via HDMI, USB, and IP outputs. No annoying settings or messy cords, you can use multiple devices at the same time through the easier and smoother video streaming process.
Camera Motion.
Adjusted to Perfection
Customizable movement speed settings from 0.1° to 200° per second deliver agile and precise motion control during streaming. The PTZ310UV2 offers sensitive yet smooth multi-angle movement for capturing an astonishing image.
SmartShoot.
People and Content in Focus.
SmartShoot provides real-time Human Detection, which allows the camera to move automatically and smoothly between 4 preset zones without any manual operation. The PTZ310UV2 quickly switches between shooting zones by focusing on a presenter, consistently delivering a clear image of people and their content.
Description

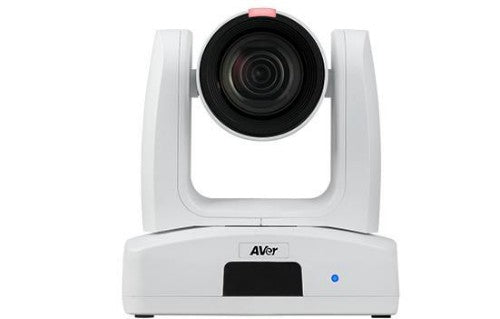

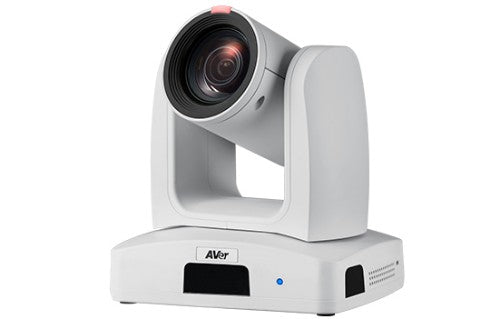

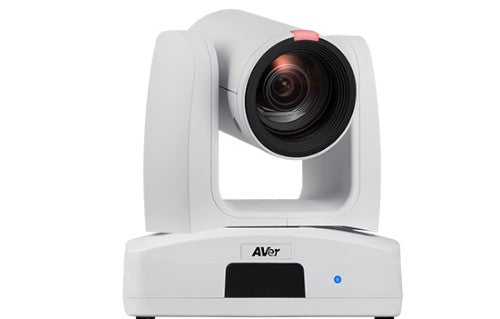

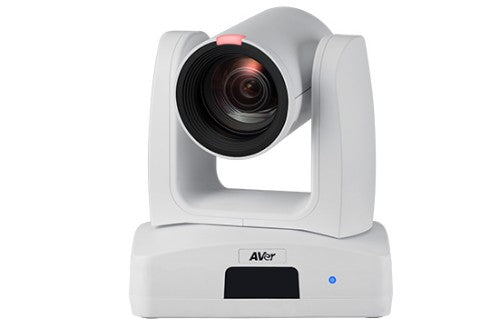

AVer PTZ310UV2 is a cutting edge PTZ Camera that features 4K 60 fps HDMI, USB and IP outputs. The 12X optical zoom lens moves remarkably fluidly to stream seamless video content. Embedded intelligent SmartShoot functionality offers the unprecedented flexibility to shoot anything from one presenter to numerous participants, making for a truly versatile professional streaming solution.12X Optical Zoom.
Adapt Quickly.
The PTZ310UV2’s 12X optical zoom camera, combined with its agile auto-focus, gives every participant the chance to be seen with excellent clarity. Never miss a spectacular moment, no matter how small.
4K Ultra HD Resolution.
Breathtaking
The 4K Ultra HD resolution of the PTZ310UV2 makes every stream impressively clear, thanks to the industry-leading Sony sensor. This excellent image processor is able to automatically adjust video – ensuring great looking scenes no matter the situation or distance.
4K 60 FPS.
HDMI, USB & IP
Recognized by Newtek, the PTZ310UV2 features true 4K 60 fps streaming via HDMI, USB, and IP outputs. No annoying settings or messy cords, you can use multiple devices at the same time through the easier and smoother video streaming process.
Camera Motion.
Adjusted to Perfection
Customizable movement speed settings from 0.1° to 200° per second deliver agile and precise motion control during streaming. The PTZ310UV2 offers sensitive yet smooth multi-angle movement for capturing an astonishing image.
SmartShoot.
People and Content in Focus.
SmartShoot provides real-time Human Detection, which allows the camera to move automatically and smoothly between 4 preset zones without any manual operation. The PTZ310UV2 quickly switches between shooting zones by focusing on a presenter, consistently delivering a clear image of people and their content.
Specifications
| Camera | |
|---|---|
| Megapixel (approx.) | 8 MP |
| Sensor type | Exmor |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 12x |
| Digital zoom | 1x |
| Combined zoom | 12x |
| Focal length range | 3.9 - 46.8 mm |
| Minimum illumination | 0.46 lx |
| White balance | ATW, Auto, Manual, One push |
| Closest focusing distance | 0.3 m |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
| Horizontal field of view (wide) | 72.8° |
| Horizontal field of view (tele) | 6.7° |
| PTZ control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Aperture range (F-F) | 1.6 - 2.8 |
| Auto exposure | Yes |
| Slowest camera shutter speed | 1 s |
| Network streaming | Yes |
| Fastest camera shutter speed | 1/32000 s |
| 3D NR (Noise Reduction) | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Light exposure modes | Aperture priority AE, Auto, Manual, Shutter priority AE |
| Field of view (wide) | 80.6° |
| Field of view (tele) | 7.7° |
| Vertical field of view (wide) | 44.1° |
| Vertical field of view (tele) | 3.8° |
| Flip & mirror | Yes |
| PTZ protocols | ONVIF, Pelco-P/D, VISCA |
| Camera type | Single camera |
| Zoom capability | Yes |
| Video | |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| Resolution at capture speed | 3840x2160@60fps, 1280x720@60fps, 1920x1080@60fps |
| Video formats supported | H.264, H.265, MJPG, YUY2 |
| HD type | 4K Ultra HD |
| Number of TV lines | 1600 |
| Design | |
| Product colour | White |
| Mounting type | Stand |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| LED indicators | Status |
| Country of origin | Taiwan |
| Web-based management | Yes |
| Tilt speed (min) | 0.1 °/sec |
| Tilt speed (max) | 100 °/sec |
| Pan speed (min) | 0.1 °/sec |
| Pan speed (max) | 100 °/sec |
| Tally light | Yes |
| Tilt preset speed | 200 °/sec |
| Pan preset speed | 200 °/sec |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| RS-232 ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| RS-422 ports | 1 |
| 3G-SDI output | Yes |
| Microphone in | Yes |
| USB Type-C connector | Yes |
| Line-in | Yes |
| Power | |
| DC input voltage | 12 V |
| Input current | 2 A |
| Power consumption (typical) | 19 W |
| Power source type | DC, PoE |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Technical details | |
| Harmonized System (HS) code | 8525890000 |
| Warranty period | 5 year(s) |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio codecs | AAC-LC |
| Audio channels | 2 |
| Protocols | |
| Supported network protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported network protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP |
| Network streaming | Yes |
| Multi-stream capability | 4; 4K 60fps: RTSP, HDMI & USB; 1080p 60fps: 3G-SDI |
| Bit rate range | 512 - 120000 Kbit/s |
| Streaming capability | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, DIN 8 to D-Sub 9, RS-232 |
| AC adapter included | Yes |
| Power supply included | Yes |
| Screws included | Yes |
| Number of screws | 8 |
| Number of cable ties | 4 |
| Number of cable fixing plates | 1 |
| Mounting brackets included | Yes |
| Cable ties included | Yes |
| Performance | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Certification | Zoom |
| Logistics data | |
| Products per pallet | 72 pc(s) |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8525890000 |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 145 mm |
| Height | 192 mm |
| Weight | 2 kg |
| Packaging data | |
| Package width | 292 mm |
| Package depth | 245 mm |
| Package height | 303 mm |
| Package weight | 4.9 kg |
