802.11 a/b/g/n/ac/ax/be, 2.4/5/6 GHz, 2GB RAM, 256MB Flash, 110 - 240V, 50 - 60Hz, 1300g
Key Features
- Award-winning meshes bring next-gen WiFi 7 speeds of up to 25 Gbps, extendable coverage of up to 8000 sq. ft. (2pk) for your worry-free smart home
- Quad-band AiMesh unlocks WiFi 7 potential in all bands, plus AI-enhanced dedicated 5 GHz backhaul helps to ensure congestion-free connections
- Smart Home Master inside the ASUS router mobile app provides easy, powerful subnetwork setup and management for IoT devices, VPNs, and parental control
- Twelve internal antennas and sixteen high-power front-end modules correct for WiFi dead zones in all directions, and robust heat dissipation offers enhanced reliability
- 10 Gbps ready home networking empowers unbeatable wired gaming, smoother 4K HDR streaming, and backup VoIP support with dual 10 Gbps ports
- Subscription-free, security with commercial-grade AiProtection Pro powered by Trend Micro™, one-tap security scan and Safe browsing
- Advanced Parental Controls protect your kids online with instant monitoring, content filters, and customized settings – without the need to set up on every device any more, thanks to Kid's Network SSIDs
- Comprehensive VPN features supports multiple protocols, and site-to-site connectivity
Description

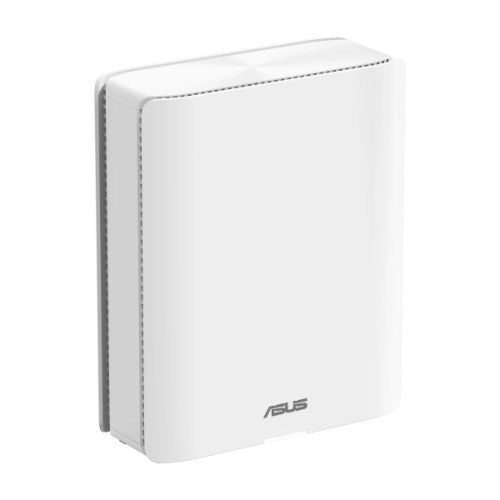

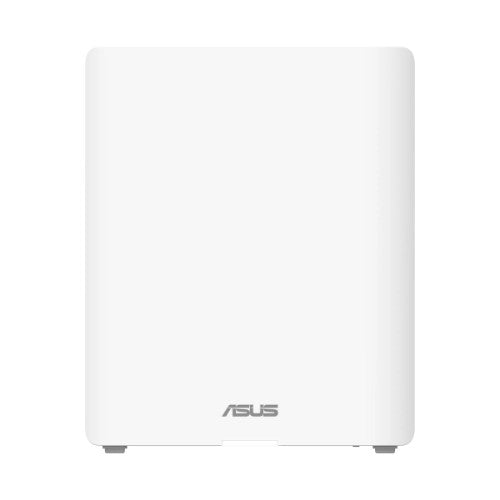

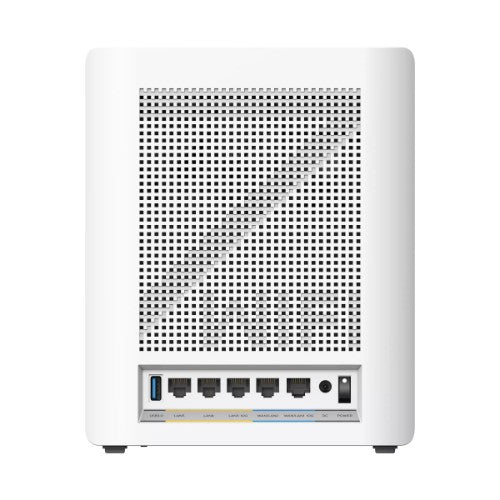

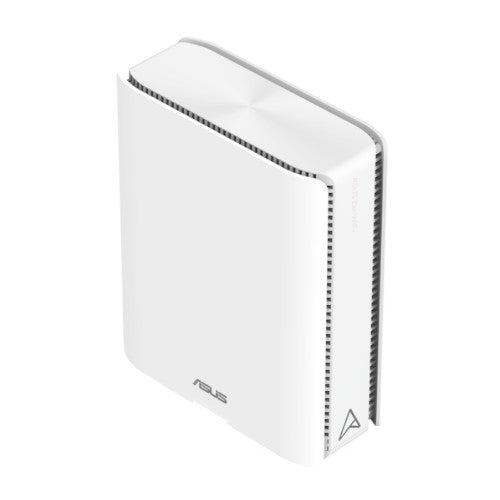

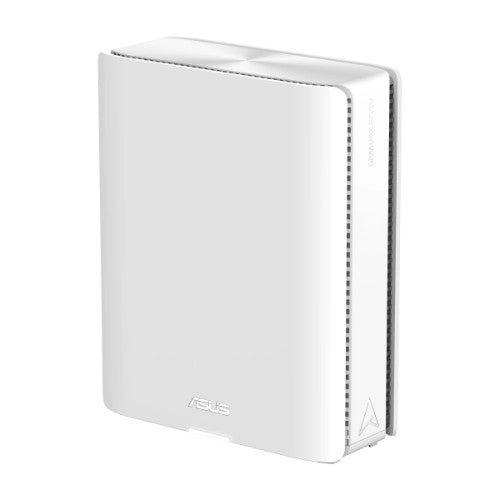

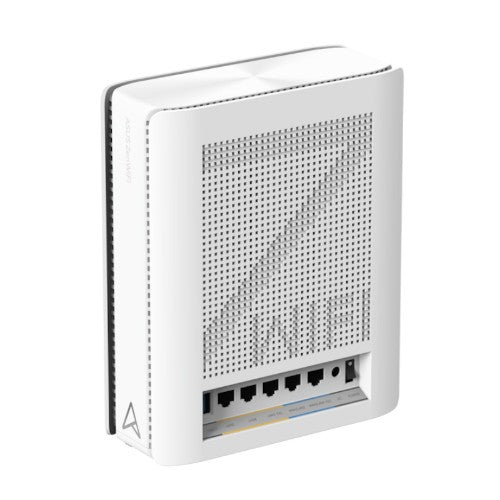

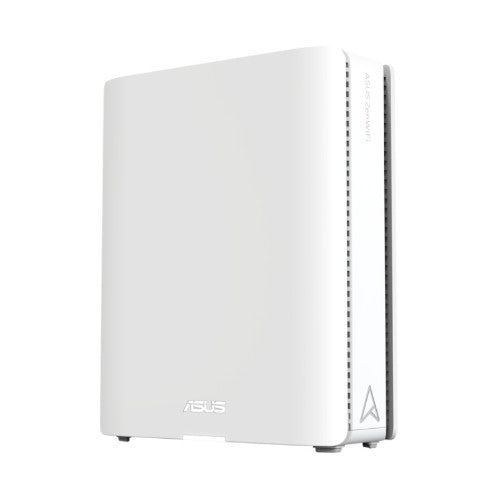

BQ16 Quad Band WiFi 7 (802.11be) BE25000 Mesh WiFi System, support new 320MHz bandwidth & 4096-QAM, Multi-link operation (MLO),dual 10G ports, backup WAN, subscription free network security and AiMesh supportSpecifications
| Design |
|---|
| Product colour |
White |
| LED indicators |
Power |
| Antenna type |
Internal |
| Antennas quantity |
12 |
| Reset button |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi band |
Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Security algorithms |
WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, WPS |
| WLAN data transfer rate (first band) |
1376 Mbit/s |
| WLAN data transfer rate (second band) |
5764 Mbit/s |
| Guest access |
Yes |
| VPN support |
- VPN Client L2TP
- VPN Client Open VPN
- VPN Client PPTP
- VPN Server IPSec
- VPN Server Open VPN
- VPN Server PPTP
- VPN Fusion |
| WLAN data transfer rate (third band) |
11529 Mbit/s |
| WLAN data transfer rate (max) |
11529 Mbit/s |
| Features |
|---|
| BeamForming |
Yes |
| Internal memory |
2048 MB |
| Flash memory |
256 MB |
| Parental control features |
Content filter, Time controls, Time rewards |
| Operating modes |
Wireless Router Mode, AiMesh Node Mode, Access Point Mode |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
5 |
| DC-in jack |
Yes |
| Ethernet WAN |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Power |
|---|
| AC adapter output voltage |
19 V |
| AC adapter output current |
3.42 A |
| AC input voltage |
110 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
|---|
| Width |
177 mm |
| Depth |
72 mm |
| Height |
218 mm |
| Weight |
1.3 kg |
| Package width |
330 mm |
| Package depth |
12 mm |
| Package height |
230 mm |
| Package weight |
2.4 kg |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Ethernet cable |
Yes |
| Number of products included |
1 pc(s) |
| Quick installation guide |
Yes |
| Packaging data |
|---|
| Package width |
330 mm |
| Package depth |
12 mm |
| Package height |
230 mm |
| Package weight |
2.4 kg |
