Description
5P Gen2 UPS, 1550 VA, 1350 W, Input: C14, Outputs: (6) C13, Rack, 1U, Network card
Description
5P 1550iR - Gen 2 - UPS (rack-mountable)Specifications
| Power | |
|---|---|
| Output power | 1350 W |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 294 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 98.2% |
| Power factor | 0.9 |
| Output power capacity | 1.55 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| LED indicators | Yes |
| Noise level | 35 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power | 1350 W |
| Input operation voltage (min) | 150 V |
| Input operation voltage (max) | 294 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 98.2% |
| Power factor | 0.9 |
| Noise level | 35 dB |
| Output power capacity | 1.55 kVA |
| Input frequency | 47/70 Hz |
| Heat dissipation | 654 BTU/h |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |

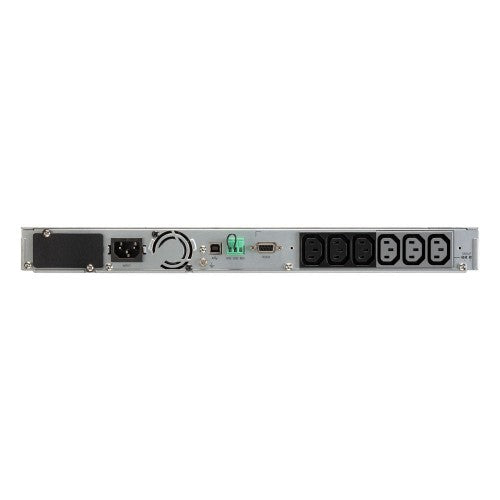

| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Serial ports quantity | 1 |
| USB port type | USB Type-B |

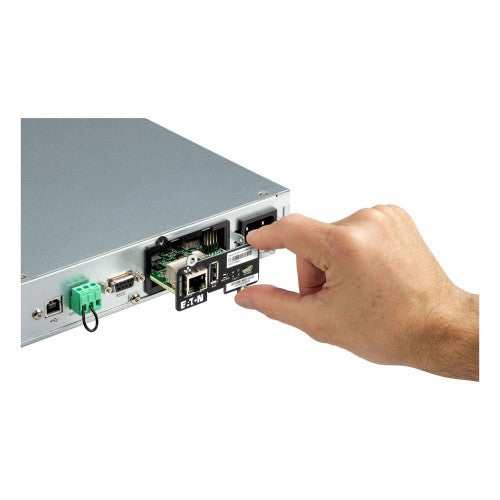

| Network card slot | Yes |
| Battery | |
| Battery voltage | 6 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of battery cells | 6 |
| Typical backup time at half load | 13.5 min |
| Hot-swap battery | Yes |
| Design | |
| Rack capacity | 1U |
| Form factor | Rackmount |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Certification | EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Display type | LCD |
| Network card slot | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Compliance certificates | Low Voltage Directive (LVD), RoHS |
| Certificates | |
| Certification | EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | Low Voltage Directive (LVD), RoHS |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Rack mount kit | Yes |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
| Weight | 18.8 kg |
| Width | 438 mm |
| Height | 43.2 mm |
| Depth | 555 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Rack mount kit | Yes |
