Description
AI-powered 2x8MP dual-sensor camera at 30 fps
See it all - 24/7
Featuring 360° IR illumination with individually controllable LEDs, this panoramic camera delivers clear images even in low light or complete darkness as well as undistorted colors during the day. And Lightfinder and Forensic WDR, ensure sharp, clear images in challenging or poor light conditions. With two 4K channels and a frame rate of 30 fps, you can capture both wide-angle and zoomed-in, detailed views. And, thanks to 2.5x zoom, it delivers wide views, and you can zoom in for all the details. Furthermore, audio input makes it possible to add audio capabilities.
Brilliant design
This compact, multidirectional camera is perfect when you need to see in two directions simultaneously. It offers flexible positioning of both varifocal camera heads, and you can control each head individually allowing you to monitor scenes in two directions in wide or zoomed-in views. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously. In addition, this IP66- and IP67-rated device includes a weather and sun shield, so image quality isn’t impacted by sun reflections or water drops.
Support for AI analytics
Built on ARTPEC-8, this high-performance, AI-based camera enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS P4708-PLVE can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs. In addition, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Secure and cost-efficient
AXIS P4708-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With two camera heads in one camera, this panoramic camera offers cost-effective installation. And, thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine tuning. Furthermore, Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Plus, with storage profile enabled, you’ll enjoy the optimal level of Zipstream for your video storage—regardless of your VMS.
Key Features
- 2x4K, multidirectional camera, with one IP address
- Support for AI analytics
- 360° IR illumination and 2.5x zoom
- Axis Lightfinder and Forensic WDR
- Axis Edge Vault safeguards the device
Description
Compact in design, this dual-sensor, multidirectional camera offers two 8MP channels and a frame rate of 30 fps to deliver excellent wide-angle overviews and zoomed-in detailed coverage 24/7 - even in challenging light conditions.See it all - 24/7
Featuring 360° IR illumination with individually controllable LEDs, this panoramic camera delivers clear images even in low light or complete darkness as well as undistorted colors during the day. And Lightfinder and Forensic WDR, ensure sharp, clear images in challenging or poor light conditions. With two 4K channels and a frame rate of 30 fps, you can capture both wide-angle and zoomed-in, detailed views. And, thanks to 2.5x zoom, it delivers wide views, and you can zoom in for all the details. Furthermore, audio input makes it possible to add audio capabilities.
Brilliant design

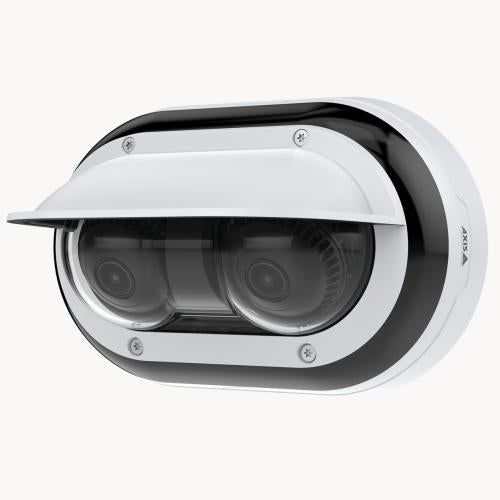

This compact, multidirectional camera is perfect when you need to see in two directions simultaneously. It offers flexible positioning of both varifocal camera heads, and you can control each head individually allowing you to monitor scenes in two directions in wide or zoomed-in views. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously. In addition, this IP66- and IP67-rated device includes a weather and sun shield, so image quality isn’t impacted by sun reflections or water drops.
Support for AI analytics
Built on ARTPEC-8, this high-performance, AI-based camera enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS P4708-PLVE can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs. In addition, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Secure and cost-efficient
AXIS P4708-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With two camera heads in one camera, this panoramic camera offers cost-effective installation. And, thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine tuning. Furthermore, Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Plus, with storage profile enabled, you’ll enjoy the optimal level of Zipstream for your video storage—regardless of your VMS.
Specifications
| Performance | |
|---|---|
| Remote viewing | Yes |
| Processor model | ARTPEC-8 |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Built-in processor | Yes |
| Design | |
| IK code | IK10 |
| Product colour | Black, Silver |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Plastic, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0 lx |
| Tilt angle range | -75 - 75° |
| Pan range | -110 - 110° |
| Angle of rotation | 240° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/16000 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 2 |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Lens system | |
| Number of lenses | 2 |
| Maximum aperture number | 1.9 |
| Auto focus | Yes |
| Recognize distance (wide) | 17.6 m |
| Recognize distance (tele) | 44 m |
| Observe distance (wide) | 34.8 m |
| Observe distance (tele) | 87.3 m |
| Identify distance (wide) | 8.8 m |
| Identify distance (tele) | 22 m |
| Detect distance (wide) | 87.8 m |
| Detect distance (tele) | 220.1 m |
| Closest focusing distance | 0.5 m |
| Minimum aperture number | 3.2 |
| Zoom capability | Yes |
| Focal length range | 3.2 - 8.1 mm |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Gain control type | Auto |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 3840 x 2160 pixels |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 8 MP |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, PCM |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1 |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 4096 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Privacy protection | Yes |
| Security algorithms | EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 18.8 W |
| Power consumption (typical) | 10.2 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 208 mm |
| Depth | 127 mm |
| Height | 133 mm |
| Weight | 975 g |
| Sustainability | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), KC, RCM, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), KC, RCM, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
