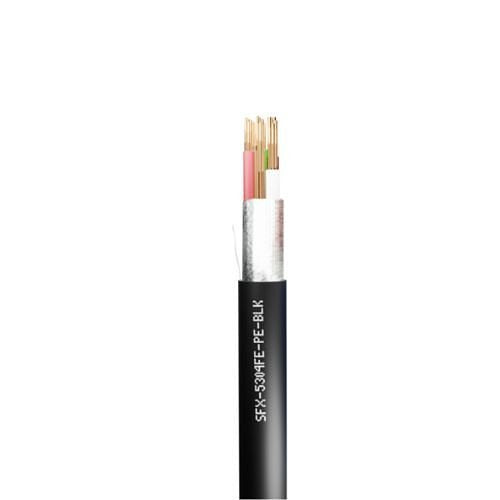

1000m 5304FE 6 x 7 x 0.4 18AWG Black
Key Features
- Available in Blue LSZH Sheath & Black PE Sheath
- Bare Copper Conductors
- Tinned Copper Drain Wire
- 6 Core 18AWG
- Overall Foil Screened
- CPR-Compliant
Description
Alternative to Belden 5304FE, this CPR-Compliant data cable features an overall foil screen, and bare copper conductors. It is suitable for use on card reader systems, enabling the connection between a card reader to the required hardware panel.
Specifications
| Features |
|---|
| Cable diameter |
6.2 mm |
| Product colour |
Black |
| Cable length |
1000 m |
| Connector 1 |
No |
| Connector 2 |
No |
| Connector 1 gender |
No |
| Connector 2 gender |
No |
| Cable material |
Tinned copper |
| Jacket material |
Low smoke zero halogen (LSZH) |
| AWG wire size |
18 |
| Weight & dimensions |
|---|
| Cable diameter |
6.2 mm |
| Packaging data |
|---|
| Cable diameter |
6.2 mm |
