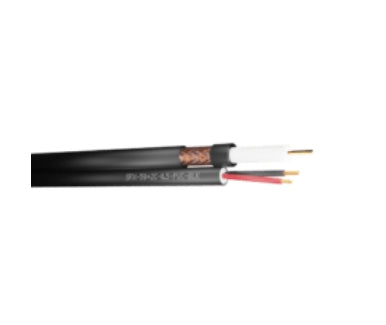

RG59 Coaxial Cable + 2 Power Cores 0.75mm LSF - Black 200m
Description
This type of RG59 cable (also known as shotgun cable) allows for the transmission of video and power signals in just one cable, which helps to save on price and installation time. The two cables which are a 2182 construction, are run in a shotgun style and can be easily separated if required for ease of installation.
Specifications
| Ports & interfaces |
|---|
| Connector 2 |
No |
| Connector 1 |
No |
| Features |
|---|
| Jacket material |
Low smoke and fume (LSF) |
| Jacket thickness |
0.85 mm |
| Conductor material |
Copper |
| Conductor size |
0.58 mm |
| Insulation material |
Solid polyethylene |
| Insulation thickness |
1.6 mm |
| Shield material |
Copper/Aluminium |
| Product colour |
Black |
| Impedance |
75 Ω |
| Connector 2 |
No |
| Connector 1 |
No |
| Cable length |
200 m |
| Technical details |
|---|
| Jacket material |
Low smoke and fume (LSF) |
| Product colour |
Black |
| Impedance |
75 Ω |
| Cable length |
200 m |
| Compliance certificates |
CE, RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 80 °C |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
