Twin Cantilever Arm Flat Screen Wall Mount with UltraGlide Tilt & Swivel
Key Features

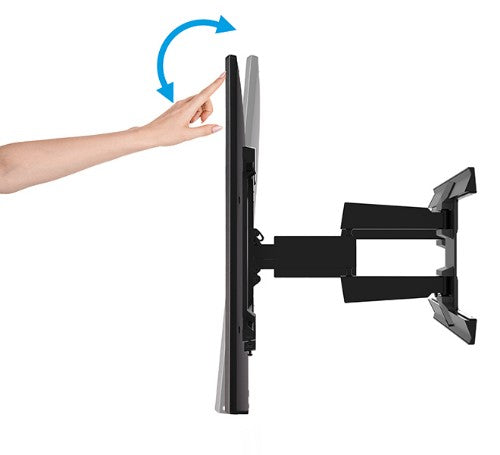

- B-Tech's UltraGlide Tilt technology allows easy, secure screen adjustment

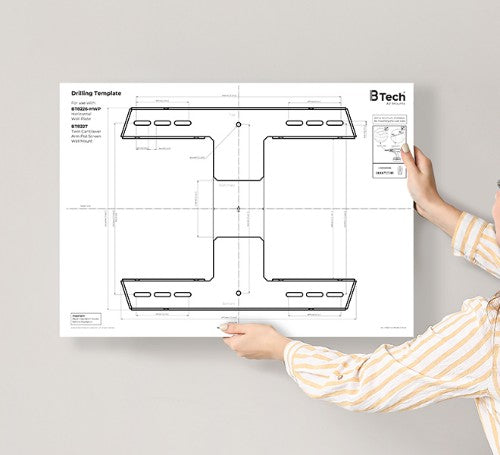

- Printed template for wall drilling makes installation quick and easy

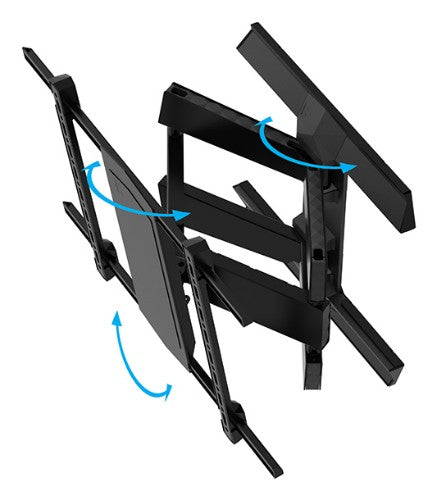

- Swivel points enables quick, smooth screen positioning

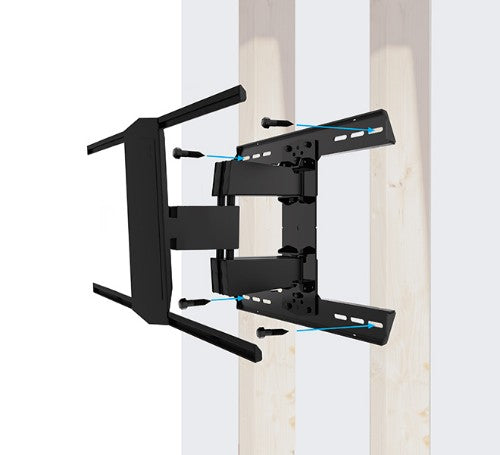

- Ideal for mounting across 16" stud walls
- Integrated cable management throughout the mount
- Suitable for both landscape and portrait mounting
- Tilt can also be fixed at selected angles of -2˚,0˚& 15˚

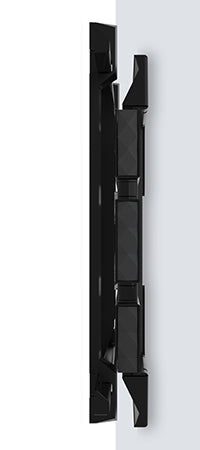

- Slim-line design allows close-to-wall installation when folded flat
- Lateral adjustment of screen after mounting
- Toolless screen levelling
Description
Designed for large screens up to 75", this universal twin-cantilever wall mount combines strength and versatility with effortless usability. B-Tech's UltraGlide Tilt technology allows users to reposition displays up to 50kg with a simple touch, securely holding the tilt in place. Featuring swivel points at the wall and interface, the mount enables quick and smooth screen adjustments, whether folded flat against the wall or fully extended. Compatible with 16" stud walls, brick, and concrete surfaces, this mount is engineered for both commercial and home installations.
Specifications
| Mounting |
|---|
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Maximum VESA mount |
600 x 400 mm |
| Distance to the wall (min) |
6.3 cm |
| Distance to the wall (max) |
58.2 cm |
| Maximum weight capacity |
50 kg |
| Maximum screen size |
190.5 cm (75") |
| Suitable for TV |
Yes |
| Ergonomics |
|---|
| Cable management |
Yes |
| Swivel angle |
180° |
| Tilt angle range |
-3 - 14° |
| Tilt adjustment |
Yes |
| Swivelling |
Yes |
| Design |
|---|
| Product colour |
Black |
| Orientation |
Landscape/Portrait |
| Technical details |
|---|
| Mounting type |
Wall |
| Distance to the wall (min) |
6.3 cm |
| Distance to the wall (max) |
58.2 cm |
| Product colour |
Black |
| Cable management |
Yes |
| Weight & dimensions |
|---|
| Width |
662.6 mm |
| Depth |
582.3 mm |
| Height |
449.6 mm |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Other features |
|---|
| Mounting type |
Wall |
