Description
1/2.9" CMOS, FullHD, 30 fps, PoE, 4.1W
Ideal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that’s easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics.
Compact and discreet

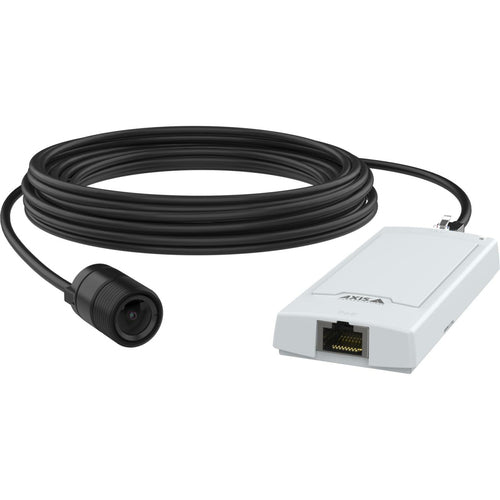

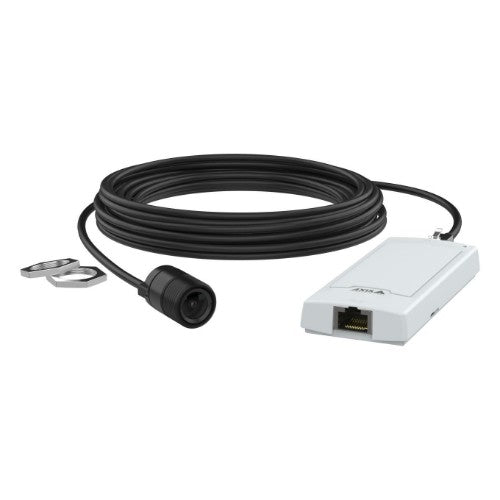

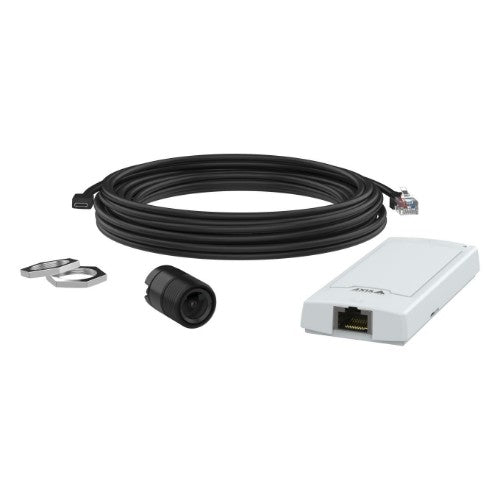

With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.
Highly flexible
Based on the divided modular camera concept, AXIS P1245 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won’t fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it’s easy to integrate with other devices. Including a standard sensor unit, this indoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade
Great image quality and support for advanced analytics
AXIS P1245 Mk II offers 1080p resolution with a wide, 111° field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there’s both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy
Key Features
- Small, thumb-sized sensor unit
- HDTV 1080p with 111° field of view
- Detachable cable up to 15 m
- Support for analytics with deep learning
- AXIS Object Analytics pre-installed
Description
AXIS P1245 Mk II Modular Standard CameraIdeal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that’s easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics.
Compact and discreet
With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.
Highly flexible
Based on the divided modular camera concept, AXIS P1245 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won’t fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it’s easy to integrate with other devices. Including a standard sensor unit, this indoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade
Great image quality and support for advanced analytics
AXIS P1245 Mk II offers 1080p resolution with a wide, 111° field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there’s both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Design | |
| Form factor | Covert |
| Product colour | Black, White |
| Mounting type | Ceiling |
| LED indicators | Yes |
| International Protection (IP) code | IPX3 |
| Housing material | Plastic, Steel |
| Camera | |
| Minimum illumination | 0.2 lx |
| Camera shutter speed | 1/6500 - 1/5 s |
| Lens viewing angle, horizontal | 111° |
| Lens viewing angle, vertical | 61° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.2 m |
| Fixed focal length | 2.8 mm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 480 x 360, 640 x 360, 1024 x 640, 1024 x 768 (XGA), 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Face detection, Human detection, Vehicle detection |
| Video motion detection | Yes |
| Security algorithms | 802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Management features | |
| Behavior analysis | Line crossing detection, Scene change detection |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 4.1 W |
| Power consumption (typical) | 3.4 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 75 g |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Technical details | |
| Doesn't contain | PVC |
| Compliance certificates | RoHS |
