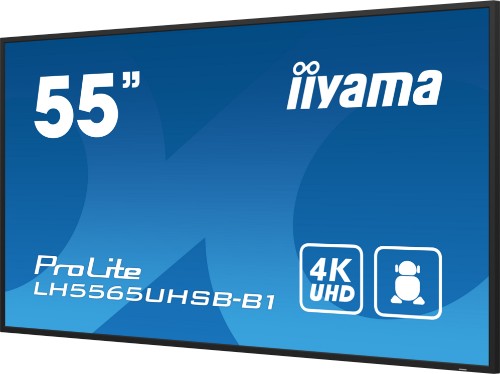

55" Vivid-Bright Display with 4K resolution and 800cd/m² panels for illuminating communication
Reasons To Buy
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
VIVID-BRIGHT DISPLAYS
Designed for maximum exposure, these 800cd/m² vivid-bright displays will illuminate your communication. Entice and captivate your audience with dynamic, show stopping content.

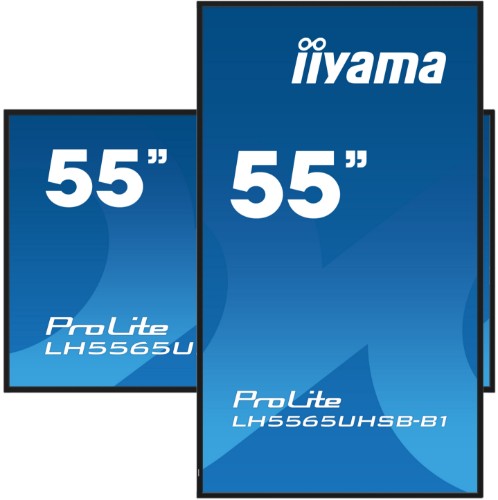

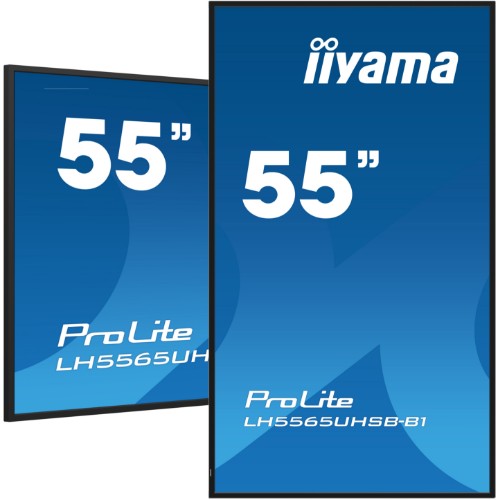

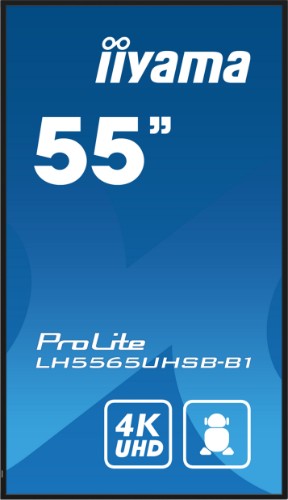

Flexible Orientation
With the option to switch between landscape and portrait mode, these displays let you get creative with any space. Whether it’s messaging, ads, videos, or safety info, you can tailor your content to grab attention exactly how you want.
Speakers
The built-in speakers offer high-quality sound, ensuring crystal-clear audio during multimedia playback.
Cable Management
Cables can be neatly tied and routed with the special cable clips, so they cannot come loose or move around.
Description
Create dynamic, show stopping content, designed to entice and captivate your audience. The LH5565UHSB vivid-bright display, boasting 800cd/m², can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
Specifications
| Display |
|---|
| Panel type |
IPS |
| Display number of colours |
1.07 billion colours |
| Touchscreen |
No |
| Active display area (W x H) |
1209.6 x 680.4 mm |
| Display technology |
LED |
| Display diagonal |
138.7 cm (54.6") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
800 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.315 x 0.315 mm |
| Display diagonal (metric) |
139 cm |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
28 - 160 kHz |
| Native refresh rate |
60 Hz |
| Haze rate |
1% |
| RGB colour space |
NTSC |
| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| DisplayPort version |
1.2 |
| USB port |
Yes |
| HDMI version |
2.0 |
| RS-232C |
Yes |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
1 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
2 |
| Audio (L/R) in |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Kiosk design |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
1.49 cm |
| Bezel width (side) |
1.49 cm |
| Bezel width (bottom) |
1.49 cm |
| Product colour |
Black |
| Panel mounting interface |
400 x 400 mm |
| VESA mounting |
Yes |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Commercial |
| Operating hours (hours/days) |
24/7 |
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
Simplified Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Number of OSD languages |
8 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
78 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
E |
| Energy consumption (SDR) per 1000 hours |
78 kWh |
| Computer system |
|---|
| Computer system |
Yes |
| Processor cores |
8 |
| Processor family |
ARM Cortex |
| Operating system installed |
Android 11 |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| On-board graphics card model |
ARM Mali-G52 |
| Processor architecture |
ARM Cortex-A73 |
| Weight & dimensions |
|---|
| Display width |
1237.5 mm |
| Display depth |
55 mm |
| Display height |
710 mm |
| Display weight |
14.6 kg |
| Packaging data |
|---|
| Package width |
1386 mm |
| Package depth |
1386 mm |
| Package height |
845 mm |
| Package weight |
19.8 kg |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Cables included |
HDMI, Power, RS-232 |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Cables included |
HDMI, Power, RS-232 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
-20 - 60% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Technical details |
|---|
| VESA mounting |
Yes |
| Power supply type |
Internal |
| Panel type |
IPS |
| DisplayPort version |
1.2 |
| Thin Client |
|---|
| Processor family |
ARM Cortex |
| Operating system installed |
Android 11 |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Other features |
|---|
| Power supply type |
Internal |
| Panel type |
IPS |
| DisplayPort version |
1.2 |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Display technology |
LED |
| Bezel width (top) |
1.49 cm |
| Bezel width (side) |
1.49 cm |
| Bezel width (bottom) |
1.49 cm |
| Quick start guide |
Yes |
| Energy efficiency scale |
A to G |
