Description

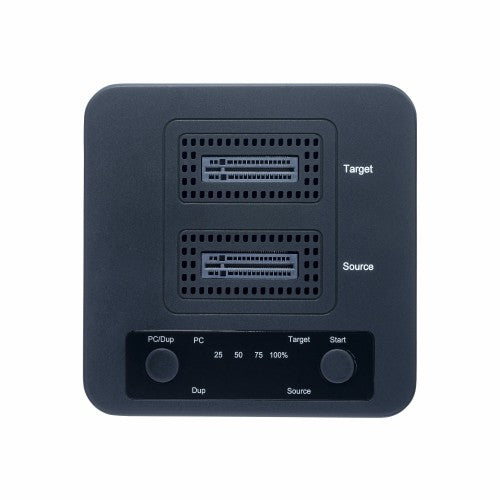

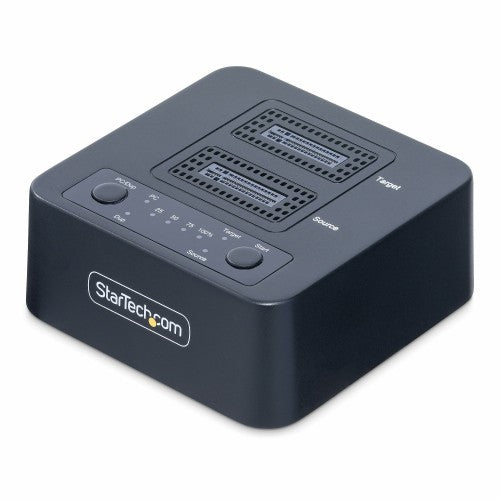

StarTech.com 1:1 M.2 NVMe Drive Duplicator, 90GBpm Standalone M.2 SSD Cloner/Copier, USB-C 3.2 20Gbps M.2 Dual-Bay Drive Dock
This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.
High-Speed M.2 NVMe Duplication
Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.
NVMe Drive Access over USB 3.2 Gen2x2

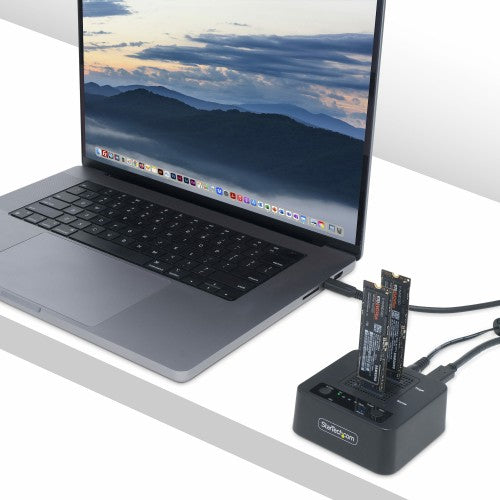

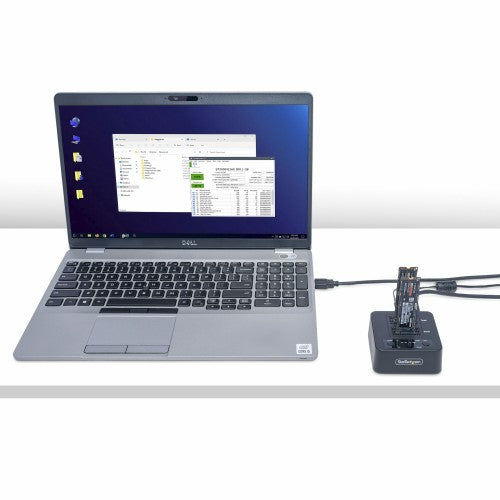

The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.
Compact and User-Friendly
The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.
The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
Key Features
- STANDALONE M.2 DUPLICATOR: Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer; High performance sector-by-sector duplication rates of up to 90GBpm; Works with any file format and copies the entire drive
- M.2 DRIVE DOCK: USB 3.2 Gen2x2 (20Gbps) host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need to install the drives internally
- COMPACT & USER-FRIENDLY: Small form factor requires minimal desktop or storage space; LEDs indicate power, progress, and SMART status; Audible buzzer confirms duplication completion; Active and passive cooling ensure optimal performance
- COMPATIBILITY: No drivers or software required; Top-loading (toaster-style) design ensures all PCIe M.2 (M-Key) will fit, even those with pre-installed heat sinks; Supports 4Kn sector size; Target disk must be equal to or larger than the source disk
- APPLICATIONS: Standalone solution for cloning M.2 NVMe drives without using computer resources; Ideal for data backup, hardware upgrades, IT system imaging and support tasks, routine maintenance, and educational environments
Description
Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USBThis M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.
High-Speed M.2 NVMe Duplication
Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.
NVMe Drive Access over USB 3.2 Gen2x2
The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.
Compact and User-Friendly
The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.
The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
Specifications
| Technical details | |
|---|---|
| Product type | HDD/SSD duplicator |
| Chipset | JMS586U |
| Number of fans | 1 fan(s) |
| LED indicators | Yes |
| Fan diameter | 6 cm |
| Housing material | Plastic |
| USB connector type | USB Type-C |
| Hot-swap drive bays | No |
| Plug and Play | Yes |
| Package width | 160 mm |
| Package height | 95 mm |
| Number of simultaneous copies | 1 copies |
| Interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Duplicator operating modes | Copy |
| Transfer rate | 20000 MB/s |
| Transfer rate | 90 GB/min |
| Product colour | Black |
| Package depth | 90 mm |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 338 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 20 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Features | |
| Product type | HDD/SSD duplicator |
| Chipset | JMS586U |
| Number of fans | 1 fan(s) |
| LED indicators | Yes |
| Fan diameter | 6 cm |
| Housing material | Plastic |
| USB connector type | USB Type-C |
| Hot-swap drive bays | No |
| Plug and Play | Yes |
| Number of simultaneous copies | 1 copies |
| Interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Duplicator operating modes | Copy |
| Transfer rate | 20000 MB/s |
| Transfer rate | 90 GB/min |
| Product colour | Black |
| Compliance certificates | RoHS |
| Hard drive | |
| SSD support | Yes |
| SSD interface | M.2 |
| Power | |
| Output voltage | 12 V |
| Output current | 2 A |
| Input current | 0.6 A |
| AC input voltage | 100 - 240 V |
| Power plug type | Type M |
| Included power plug types | ANZ, EU, NA, UK |
| Power consumption (typical) | 0.1 W |
| Weight & dimensions | |
| Weight | 129 g |
| Dimensions (WxDxH) | 77 x 77 x 44 mm |
| Packaging data | |
| Package width | 160 mm |
| Package height | 95 mm |
| Package weight | 140 g |
| Package depth | 90 mm |
| Manual | Yes |
| Cables included | USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| AC adapter included | Yes |
| Packaging content | |
| Manual | Yes |
| Cables included | USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| AC adapter included | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 55 °C |
| Operating temperature (T-T) | 5 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Colour | |
| Product colour | Black |
| Other features | |
| Output voltage | 12 V |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 338 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 20 pc(s) |
