Description
50W, 4 x 2.5 GbE RJ45, 12 x GbE RJ45, 2 x 10G SFP+, Layer 3, SGCC steel
Key Features

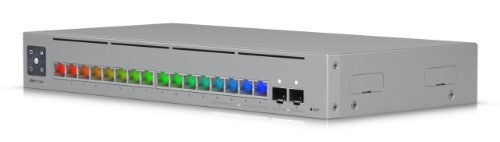

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (4) 2.5 GbE RJ45 ports
- (12) GbE RJ45 ports
- (2) 10G SFP+ ports
- Versatile desktop, wall, and rack** mounting
- Silent, fanless cooling system
Description

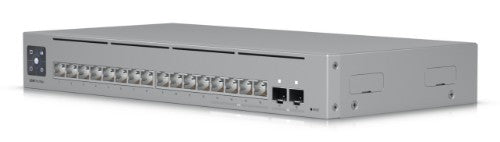

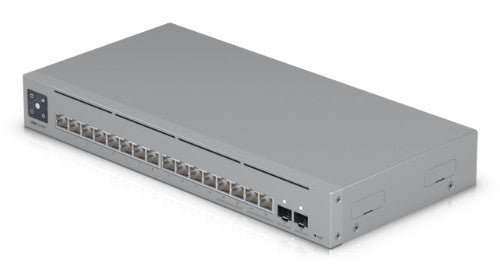

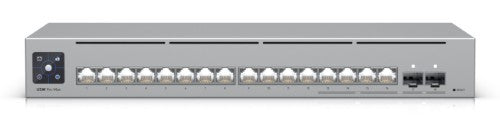

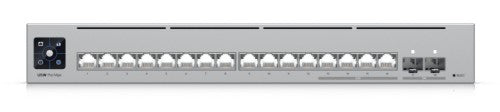

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 12 |
| Power connector | AC/DC |
| 2.5G Ethernet (copper) ports quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Voice VLAN |
| IPv4 routes | 512 |
| IGMP snooping | Yes |
| Data transmission | |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 84 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 62 Mpps |
| Throughput | 42 Gbit/s |
| Number of VLANs | 1000 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCP snooping |
| Design | |
| Reset button | Yes |
| Display type | LCM |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Link, Network, Speed, Status |
| Housing material | SGCC |
| Rack mounting | Yes |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 1.5 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 25 W |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Input voltage | 4.8 - 5.2 V |
| Input current | 5 A |
| Power connector | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 85.3 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Virtual LAN features | Voice VLAN |
| Weight & dimensions | |
| Width | 325.1 mm |
| Depth | 160 mm |
| Height | 43.7 mm |
| Weight | 1.95 kg |

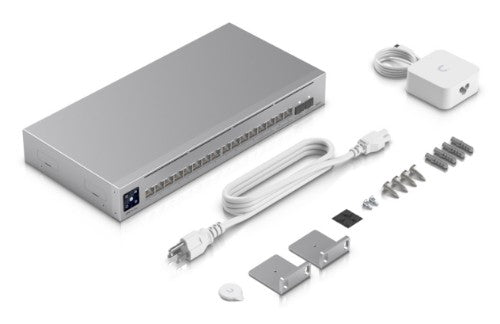

| Packaging content | |
| Rack mount kit | Yes |
| Cables included | Power |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | Yes |
| Housing material | SGCC |
| Rack mounting | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Indication | |
| LED indicators | Link, Network, Speed, Status |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | Power |
| Other features | |
| Input voltage | 4.8 - 5.2 V |
