Description
Vigor 2865Lax-5G
Key Features
- VDSL2 (Superfast Fibre) and Gigabit Ethernet WAN Router
- Multi-WAN Gigabit Performance Router with Load-Balancing & Failover
- Up to 950Mbps Firewall Throughput for Ethernet WAN
- 5+1 Gigabit RJ-45 LAN Ports
- Up to 800Mbps VPN Throughput with IPsec acceleration
- 32 LAN-to-LAN & Remote Teleworker VPN Tunnels
- 16 DrayTek SSL VPN or OpenVPN Tunnels
- 5G / LTE with Dual-SIMs for Second Backup Telco – New!
- AX3000 – Wi-Fi 6 Dual Band Wireless
- 8 LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Optional VigorCare Available
- Compatible with VigorACS Central Management Platform
Description

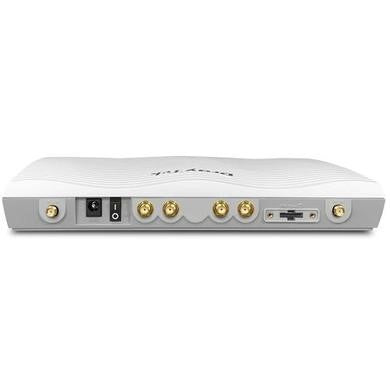

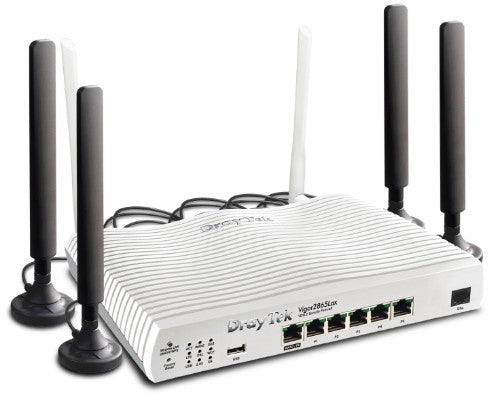

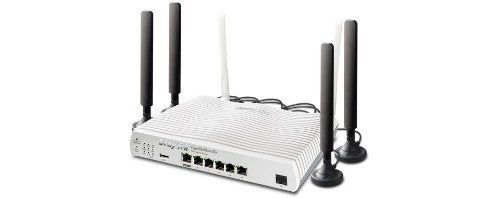

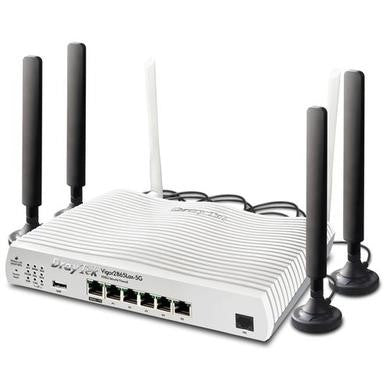

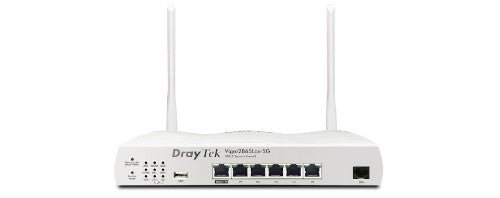

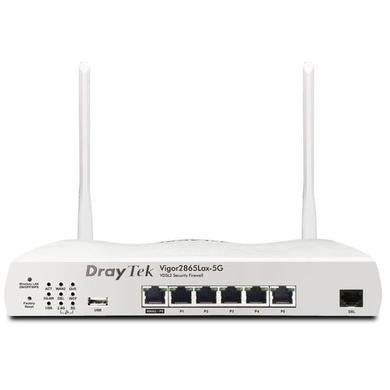

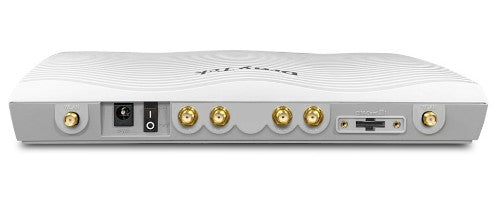

Vigor 2865Lax-5G AX3000 wireless VDSL router with integrated 5G modemSpecifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Full duplex | Yes |
| DSL features | |
| DSL WAN | Yes |
| Internal modem | Yes |
| ADSL | Yes |
| ADSL2 | Yes |
| ADSL2+ | Yes |
| VDSL | Yes |
| VDSL2 | Yes |
| Mobile network | |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| Mobile network generation | 5G |
| Network | |
| Wake-on-LAN ready | Yes |
| Routing protocols | BGP, IP, RIP-1, RIP-2, RIPng |
| Network address translation (NAT) | Yes |
| Management protocols | HTTP, HTTPS, Telnet, SSH, FTP, TR-069 |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| VPN tunnels quantity | 32 |
| VPN support | IPsec, SSL, OpenVPN, WireGuard, PPTP, L2TP |
| Port forwarding | Yes |
| Full duplex | Yes |
| Automatic channel selection | Yes |
| Port triggering | Yes |
| Number of guest networks (5 GHz) | 4 |
| Number of guest networks (2.4 GHz) | 4 |
| Wireless Distribution System (WDS) bridge | Yes |
| VPN server | IPsec, SSL, OpenVPN, WireGuard, PPTP, L2TP |
| VPN Passthrough | Yes |
| Static route | Yes |
| SSID-based VLAN assignment | Yes |
| Policy-based routing | Yes |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| Protocols | |
| DMZ support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Routing protocols | BGP, IP, RIP-1, RIP-2, RIPng |
| Management protocols | HTTP, HTTPS, Telnet, SSH, FTP, TR-069 |
| DHCP server | Yes |
| DHCP client | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| WPS push button | Yes |
| Web-based management | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Bandwidth control | Yes |
| Web-based setup wizard | Yes |
| Intelligent Mesh technology | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Security | |
| VPN tunnels quantity | 32 |
| VPN support | IPsec, SSL, OpenVPN, WireGuard, PPTP, L2TP |
| URL filtering | Yes |
| System event log | Yes |
| Security algorithms | 3DES, AES, HTTPS, IPSec, MD5, MSCHAPv2, SHA-1, SHA-2, SHA-256, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS, TLS, WEP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-Personal, WPA2-RADIUS, WPA2-TKIP, WPA3, WPA3-EAP, WPA3-Enterprise, WPA3-PSK, WPA3-Personal |
| Network address translation (NAT) | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Firewall | Yes |
| DoS attack prevention | Yes |
| DMZ support | Yes |
| Filtering | Yes |
| Schedule access | Yes |
| Parental control | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Access Control List (ACL) | Yes |
| DDoS protection | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Automatic channel selection | Yes |
| Internal modem | Yes |
| Web-based setup wizard | Yes |
| Packaging content | |
| Package type | Box |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| Antenna included | Yes |
| Mounting kit | Yes |
| Packaging content | •4x 1m LTE Extension Base •4x Detachable LTE Antennas |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-11, RJ-45, USB |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RJ-11 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| DC-in jack | Yes |
| Design | |
| Product type | Rack/wall router |
| Wall mountable | Yes |
| On/off switch | Yes |
| Housing material | Plastic |
| Indication light | Yes |
| Rack capacity | 1U |
| Other features | |
| Internal modem | Yes |
| Antenna | |
| Antenna design | External |
| Detachable antenna(s) | Yes |
| Antenna direction type | Omni-directional |
| Features | |
| Firmware upgradeable | Yes |
| Operating system installed | DrayOS |
| Power | |
| Power source type | AC |
| Power consumption (typical) | 31.2 W |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 241 mm |
| Weight | 670 g |
| Height | 44 mm |
| Depth | 165 mm |
| Packaging data | |
| Quick start guide | Yes |
| Package type | Box |
| Cables included | LAN (RJ-45) |
| Antenna included | Yes |
| Technical details | |
| Vendor code | Vigor 2865Lax-5G |
