Description

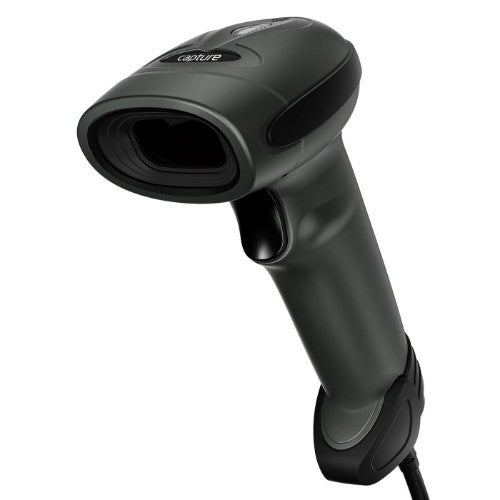

Viper - Corded 1D/2D Barcode Scanner
Key Features
- Practical and user-friendly setup
- Supports multilingual data output
- Single-scan configuration with the iCode
- LED-aimer helps users aim faster and with greater accuracy
- Superior first-time read
- Omni-directional scanning
- Reads electronic barcodes from smartphone screens
- Reads most challenging and problematic barcodes
- Withstands drops from up to 1.8m onto concrete
Description
The Capture Viper handheld scanner is built to deliver maximum value. The Viper not only brings exceptional reading performance, but can also output data in numerous languages to cover a vast range of scanning requirements. Supported by the latest imaging technology it rapidly scans barcodes from product labels, membership cards, and electronic coupons, whether 1D or 2D. Even faded or damaged barcodes.Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Code 128, Code 32, Code 39, GS1 DataBar, IATA, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, Telepen, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Codablock, Code 16K, Code 49, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Motion tolerance (cm/s) | 62.7 |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | -55 - 55° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Bluetooth Low Energy (BLE) | Yes |
| Standard interfaces | USB |
| Performance | |
| Programming function | Yes |
| Protection features | Bump resistant, Dust resistant, Splash proof |
| LED indicators | Battery level, Power, Status |
| Housing material | Acrylonitrile butadiene styrene (ABS), Synthetics |
| Built-in display | No |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Bump resistant, Dust resistant, Splash proof |
| LED indicators | Battery level, Power, Status |
| Housing material | Acrylonitrile butadiene styrene (ABS), Synthetics |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Power | |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Weight & dimensions | |
| Width | 97 mm |
| Depth | 65 mm |
| Height | 155 mm |
| Weight | 156 g |
| Package weight | 300 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Bump resistant, Dust resistant, Splash proof |
| LED indicators | Battery level, Power, Status |
| Housing material | Acrylonitrile butadiene styrene (ABS), Synthetics |
| Built-in display | No |
| Safety | Withstands multiple drops from 1.8m (6ft) to concrete |
| Maximum operating distance | 100 m |
| Light source | 660nm LED |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Programming function | Yes |
| Compliance certificates | CE, RoHS |
| Packaging data | |
| Package weight | 300 g |
| External power adapter | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Packaging content | |
| External power adapter | Yes |
| Other features | |
| Safety | Withstands multiple drops from 1.8m (6ft) to concrete |
| Maximum operating distance | 100 m |
| Light source | 660nm LED |
