Description

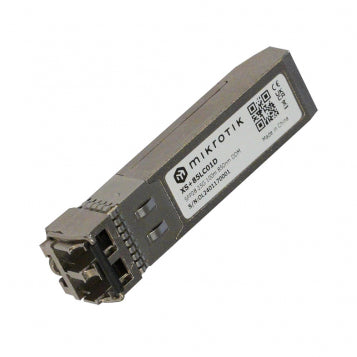

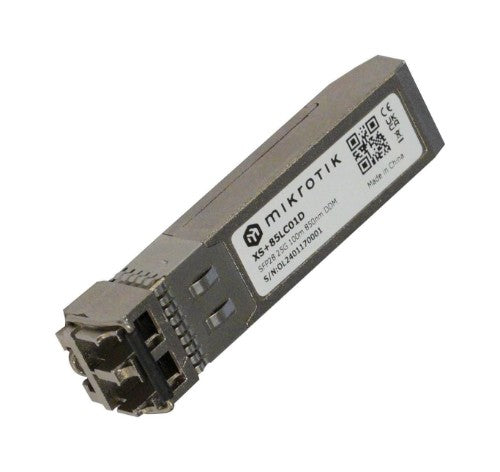

A cost-effective 1.25G SFP, 10G SFP+ and 25G SFP28 module for the 100 meter range
The module has built-in digital diagnostic functions such as optical power, transceiver supply voltage, temperature, laser bias current monitoring, and other key parameter monitoring. These options can be helpful not only to alert the user during abnormal transceiver activity but also if specific customizable operating limits are exceeded. Monitoring allows you to plan ahead, make informed decisions and predict necessary upgrades or maintenance based on the transceiver performance.
Description
A cost-effective 1.25G SFP, 10G SFP+ and 25G SFP28 module for shorter distances: up to 100 meters in full- duplex 25 Gigabit mode. Its compatibility with different speeds and the affordable price makes it a versatile solution for various setups of any scale - including bestsellers like the RB5009, CCR2116, netPower series or a variety of CRS and CSS switches.The module has built-in digital diagnostic functions such as optical power, transceiver supply voltage, temperature, laser bias current monitoring, and other key parameter monitoring. These options can be helpful not only to alert the user during abnormal transceiver activity but also if specific customizable operating limits are exceeded. Monitoring allows you to plan ahead, make informed decisions and predict necessary upgrades or maintenance based on the transceiver performance.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC (UPC) |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Maximum data transfer rate | 25000 Mbit/s |
| Interface type | SFP28 |
| Multi-mode fiber (MMF) supported | Yes |
| Product colour | Stainless steel |
| Features | |
| Product colour | Stainless steel |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC (UPC) |
| Maximum data transfer rate | 25000 Mbit/s |
| Interface type | SFP28 |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
