LinkRunner AT 4000 Advanced Network & Cable Tester - Network Testing, Cable Testing, PoE Testing, Fiber Optic Cable Testing, LAN Cable Testing - LCD - 2 x USB - 2 x Network (RJ-45) - 1.0 Number of Total Expansion Slot(s) - SFP - 1 Number of SFP Slot(s) - Twisted Pair, Optical Fiber - Gigabit Ethernet - 1000Base-T, 1000Base-X, 1000Base-SX, 1000Base-LX, 1000Base-ZX, 100Base-FX - Proprietary Battery Size - Battery Rechargeable - Lithium Ion (Li-Ion)
Key Features
- Discovery – Discover network devices and common problems across multiple VLANs, plus generate Topology Maps in Link-Live
- AutoTest and Profiles – Comprehensive network link test validates all aspects of network connectivity
- Switch Test– Identifies nearest connected switch and critical configuration information
- Path Analysis – Shows switch/router path to any connected device
- Cable Test – Validate cabling for proper termination, test for length, common miswires, and distance to fault
- Ping/TCP Test – Verify connectivity to on or off-network devices, ensure TCP port availability
- Capture – Packet capture to 1Gbps for in-depth analysis
- Reflector – Works with other NetAlly tools for network performance testing
- Link-Live – Collaboration, reporting, and analysis platform for easy logging, documenting, and reporting of test activities
- iPerf – Runs iPerf3 performance test to NetAlly Test Accessory or iPerf server endpoint to ensure adequate client bandwidth
- Wi-Fi Connectivity Support – Requires optional USB adapter for on-the-go connectivity
- Additional Tools and Diagnostics – Download apps from Link-Live app store to accomplish additional tasks
Description

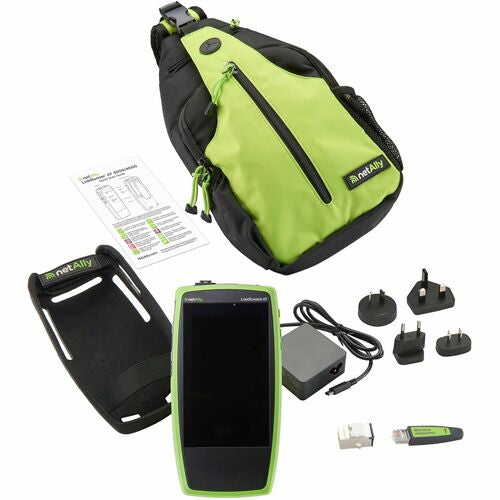

The NetAlly LRAT-4000 LinkRunner AT 4000 Advanced Network and Cable Tester is for Multigigabit NBASE-T and fiber Ethernet networks. Using network discovery and layer 2 and 3 path analysis, it offers comprehensive network visibility to resolve issues impacting multiple devices.
Specifications
| Features |
|---|
| Product type |
PoE tester |
| Supported connectors |
RJ-45, SFP, SFP+ |
| Test type |
PoE testing, Transmission testing |
| Easy to use |
Yes |
| Built-in display |
Yes |
| Display type |
LCD |
| Display diagonal |
12.7 cm (5") |
| Backlight display |
Yes |
| Fiber mode structure |
Multi-mode |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| LED indicators |
Battery level |
| Product colour |
Black, Green |
| RJ-45 ports quantity |
1 |
| Power |
|---|
| Battery voltage |
3.63 V |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Charging time |
180 min |
| Certificates |
|---|
| Compliance certificates |
Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
75 - 90% |
| Weight & dimensions |
|---|
| Width |
102 mm |
| Depth |
42 mm |
| Height |
196 mm |
| Weight |
480 g |
| Technical details |
|---|
| Product type |
PoE tester |
| Supported connectors |
RJ-45, SFP, SFP+ |
| Test type |
PoE testing, Transmission testing |
| Easy to use |
Yes |
| Built-in display |
Yes |
| Display type |
LCD |
| Display diagonal |
12.7 cm (5") |
| Backlight display |
Yes |
| Fiber mode structure |
Multi-mode |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| LED indicators |
Battery level |
| Product colour |
Black, Green |
| RJ-45 ports quantity |
1 |
| Compliance certificates |
Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC) |
