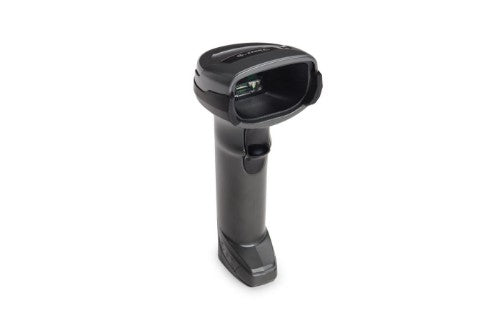

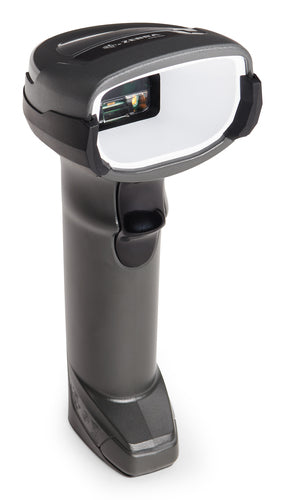

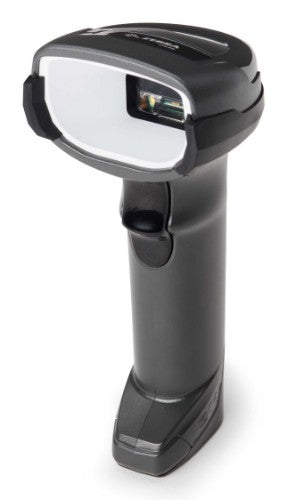

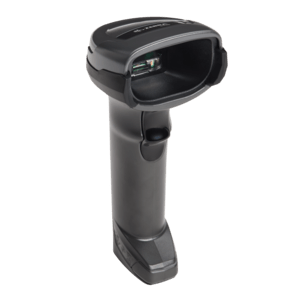

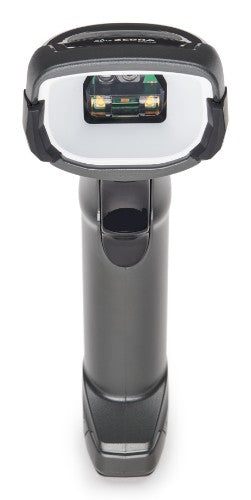

Handheld, LED, 1D/2D, 1280x800, High Density, Direct Part Marks, Area imager, Electronics DPM, cordless, white illumination, Twilight Black, vibration, 13 hours (2,500 mAh), 16.8 x 6.6 x 10.7 cm, 225 g
Key Features
- Scan Type: 2D, 1D
- Image Sensor: 1280x800 pixels
- Scan Range: High Density, Direct Part Marks
- Corded/Cordless: Cordless
- Battery Capacity: 13 hours (2,500 mAh)
Description
The cordless DS4678-DPE is purpose built to capture whatever type of barcodes are found in your electronics manufacturing operations-from laser etched direct part marks, high density and low contrast codes, to 4-inch wide barcodes. It's battery delivers more than 50,000 scans in a single charge.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1 |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Yaw reading angle |
-60 - 60° |
| Tilt reading angle |
0 - 360° |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Pitch reading angle |
-60 - 60° |
| Light levels (direct sunlight) |
0 - 107000 lx |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| Horizontal field of view |
31.6° |
| Vertical field of view |
22.6° |
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Bluetooth version |
5.2 |
| Bluetooth Low Energy (BLE) |
Yes |
| Standard interfaces |
Bluetooth |
| Performance |
|---|
| LED indicators |
Yes |
| Built-in processor |
Yes |
| Processor frequency |
800 MHz |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Image formats supported |
BMP, JPEG, TIFF |
| Vibration function |
Yes |
| Light levels (direct sunlight) |
0 - 107000 lx |
| Design |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Yes |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
|---|
| Power source type |
Battery |
| Charging time |
2.25 h |
| Number of reads per charge |
50000 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
2500 mAh |
| Weight & dimensions |
|---|
| Width |
66 mm |
| Depth |
107 mm |
| Height |
168 mm |
| Weight |
225 g |
| Technical details |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Yes |
| Built-in processor |
Yes |
| Processor frequency |
800 MHz |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Warranty period |
3 year(s) |
| Compliance certificates |
Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Drop resistance |
1.8 m |
| Light levels (direct sunlight) |
0 - 107000 lx |
