RAM Mounts RAM-GDS-CHARGE-V3CH-2U mobile device charger Black DC Auto

5-15V, 3A, USB-C

Key Features

• Hardwire charger includes USB Type-C male connection with input of 30-64VDC and output of 5-15VDC
• Supports Power Delivery
• When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
• Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application

Description

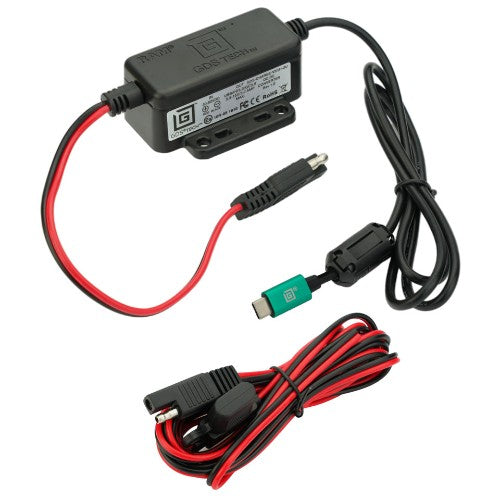

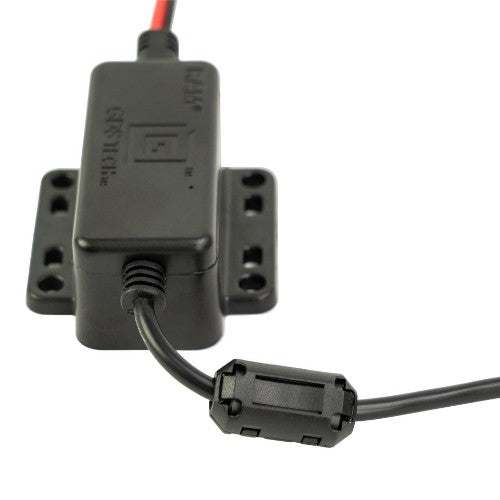

GDS Modular 30-64V Power Delivery Hardwire Charger with Male USB Type-C

The GDS Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS vehicle solution. By connecting directly to the power source of your vehicle, the GDS Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery.

Specifications

Performance
Charger type	Auto
Power source type	DC
Power protection features	Over voltage, Reverse polarity, Short circuit
Certification	CE, RCM, FCC, UL 62368-1
Number of simultaneously connected devices (max)	1
Design
Product colour	Black
Cable length	1 m
Power
Input voltage	30 - 64 V
Maximum output voltage	15 V
Minimum output voltage	5 V
Output current (15V)	3 A
Technical details
Charger type	Auto
Power source type	DC
Power protection features	Over voltage, Reverse polarity, Short circuit
Compliance certificates	RoHS, WEEE
Ports & interfaces
Cable length	1 m
Weight & dimensions
Weight	213.1 g
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-20 - 70 °C
Colour
Product colour	Black
Certificates
Certification	CE, RCM, FCC, UL 62368-1
