Modular Compute Solution for MeetingBoard
Key Features
- Support TPM2.0
- Support CEC
Description

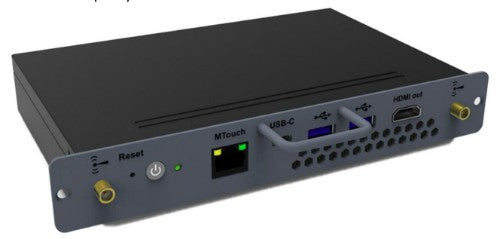

Yealink MCore-OPS is a modular computing solution specially designed for interactive whiteboards. Pluggable computing module (Windows) with a built-in customized Teams Rooms image, can be connected to the OPS interface of MB65/86 as a secondary system for MB65/86.
Specifications
| Processor |
|---|
| Processor generation |
11th gen Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i5 |
| Processor model |
i5-1135G7 |
| Processor cores |
4 |
| Processor boost frequency |
4.2 GHz |
| Processor socket |
BGA 1449 |
| Processor cache |
8 MB |
| Processor cache type |
Smart Cache |
| System bus rate |
4 GT/s |
| Processor lithography |
10 nm |
| Processor operating modes |
64-bit |
| Configurable TDP-down |
12 W |
| Tjunction |
100 °C |
| Configurable TDP-down frequency |
0.9 GHz |
| Configurable TDP-up frequency |
2.4 GHz |
| Configurable TDP-up |
28 W |
| Memory |
|---|
| Internal memory |
8 GB |
| Internal memory type |
DDR4-SDRAM |
| Memory layout (slots x size) |
2 x 4 GB |
| Storage |
|---|
| Total storage capacity |
128 GB |
| Storage media |
SSD |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board graphics card dynamic frequency (max) |
1300 MHz |
| Network |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Software |
|---|
| Operating system installed |
Windows 10 IoT Enterprise |
| Operating system architecture |
64-bit |
| Compatible operating systems |
• Windows 11 loT Enterprise x64 operating system
• Windows 11 loT Enterprise Lisence
• Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
• Yealink RoomConnect |
| Power |
|---|
| DC input voltage |
12 - 19 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
180 mm |
| Depth |
119 mm |
| Height |
30 mm |
| Weight |
700 g |
| Package width |
267 mm |
| Package depth |
215 mm |
| Package height |
65 mm |
| Package weight |
890 g |
