Wall mount, gang box mount, 10/100 MbE RJ45 port, PoE+, IP55, Polycarbonate, aluminum alloy, white
Key Features

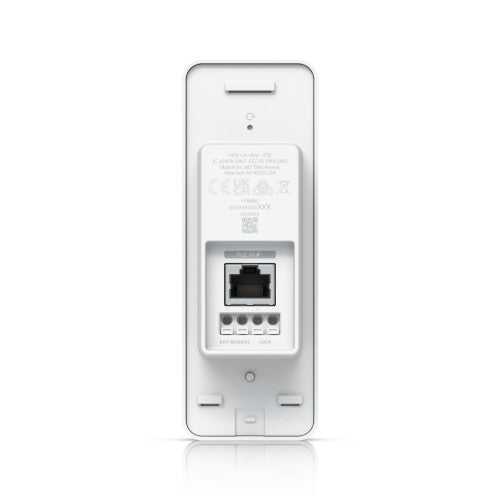

- (1) Lock terminal (12V/1A)
- (1) Exit request input
- Unlock using an NFC card or UniFi Identity mobile app
- IP55 weather resistance (-30 to 40° C)
Description
Tamper-resistant access reader with a built-in hub for complete, single-door entry control from one device.
Specifications
| Technical details |
|---|
| Recommended usage |
Indoor & outdoor |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Type |
Basic access control reader |
| Authentication type |
Access chip/card |
| Fingerprint reader |
No |
| Access chip/card reader |
Yes |
| Product colour |
White |
| Housing material |
Aluminium, Polycarbonate (PC) |
| International Protection (IP) code |
IP55 |
| Near Field Communication (NFC) |
Yes |
| Buzzer |
Yes |
| LED indicators |
Status |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Tamper protection |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Display |
|---|
| Built-in display |
No |
| Camera |
|---|
| Front camera |
No |
| Ports & interfaces |
|---|
| Ethernet LAN data rates |
10,100 Mbit/s |
| Near Field Communication (NFC) |
Yes |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| DC current (max) |
1 A |
| DC voltage range |
12 V |
| Power consumption (max) |
18 W |
| Weight & dimensions |
|---|
| Width |
45 mm |
| Weight |
140 g |
| Height |
126 mm |
| Depth |
37.5 mm |
| Packaging content |
|---|

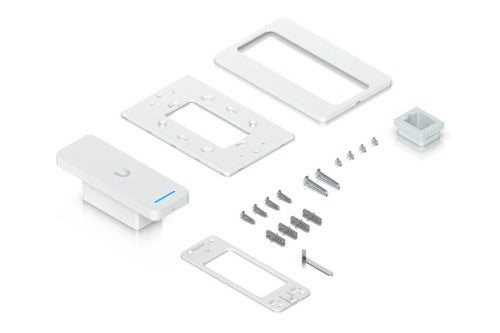

| Mounting bracket(s) included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 40 °C |
| Operating relative humidity (H-H) |
5 - 90% |
