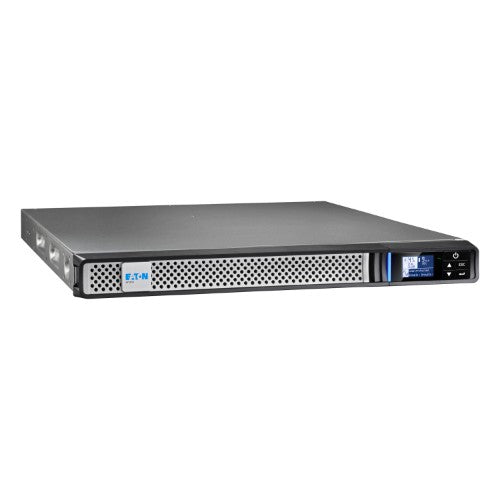

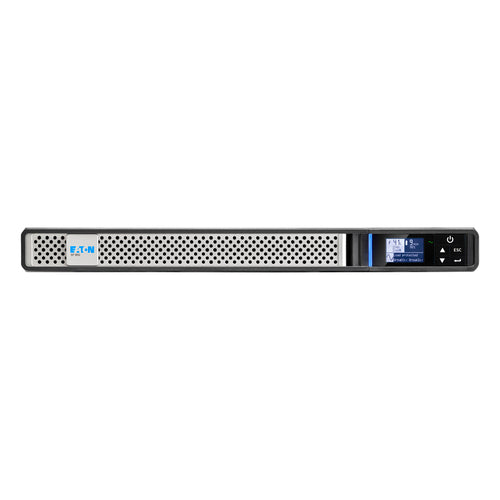

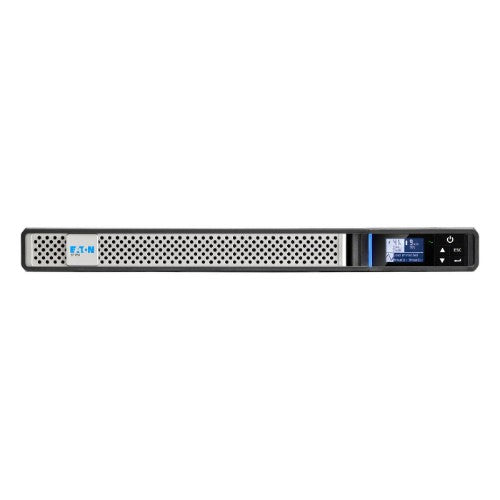

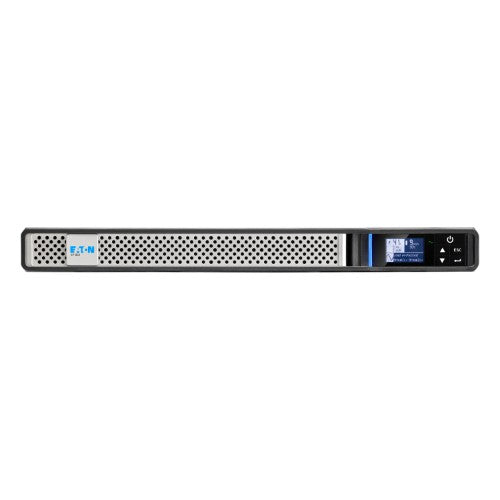

Eaton 5P850IRG2 uninterruptible power supply (UPS) Line-Interactive 0.85 kVA 680 W 4 AC outlet(s)

5P Gen2 UPS, 850 VA, 680 W, Input: C14, Outputs: (4) C13, Rack, 1U

Description

5P 850i Rack 1U G2

Specifications

Power
Output power	680 W
Input operation voltage (min)	150 V
Input operation voltage (max)	294 V
Output operation voltage (max)	240 V
Efficiency	98%
Output power capacity	0.85 kVA
Performance
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Noise level	35 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Output power	680 W
Input operation voltage (min)	150 V
Input operation voltage (max)	294 V
Output operation voltage (max)	240 V
Efficiency	98%
Noise level	35 dB
Output power capacity	0.85 kVA
Input frequency	47/70 Hz
Heat dissipation	307 BTU/h

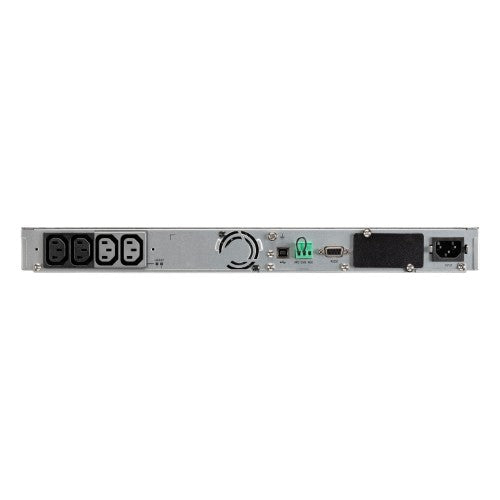

Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
USB port type	USB Type-B
Battery
Number of batteries supported	4
Battery voltage	6 V
Battery capacity	7 Ah
Battery technology	Sealed Lead Acid (VRLA)
Design
Rack capacity	1U
Form factor	Tower
Product colour	Black, Silver
Certification	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Certificates
Certification	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Weight & dimensions
Weight	13.7 kg
Width	438 mm
Height	43.2 mm
Depth	509 mm
