Conceptronic ZEUS08E 1500VA 900W UPS, IEC

ZEUS08E 1500VA 900W UPS, IEC

Key Features

• Built-in AVR protects against voltage fluctuation
• Powerful microprocessor design
• AC auto restart
• DC Start
• Modem / LAN Internet protection
• Provides HID compatible USB connection

Description

The Conceptronic UPS provides long-lasting, reliable battery backup for the home or small office. The unit is simple to install and operate, offering an easy and safe way of protecting your systems from harmful power surges and failures. The UPS comes with modem/LAN protection, a powerful microprocessor and a fault indicator which warns against dangerous wiring. Stylish, compact design makes the UPS ideal for limited office and home working spaces.

Specifications

Power
Output power	900 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output power capacity	1.5 kVA
Performance
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Power protection features	Short circuit
Features
Country of origin	China
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Output power	900 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Power protection features	Short circuit
Output power capacity	1.5 kVA

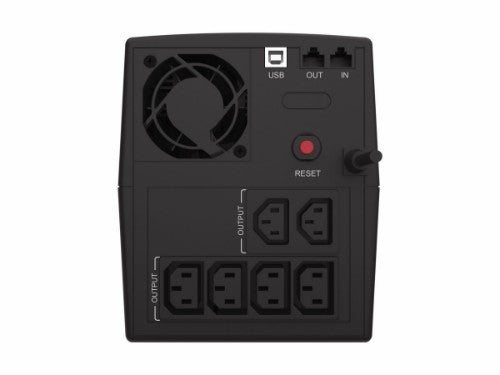

Ports & interfaces
USB port	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type-B
Battery
Battery voltage	12 V
Battery capacity	9 Ah
Battery recharge time(90%)	8 h
Battery capacity	108 Wh
Design
Country of origin	China
International Protection (IP) code	IP20
Form factor	Compact
Product colour	Black
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Technical details
Harmonized System (HS) code	8504402000
Compliance certificates	CE, RoHS
Weight & dimensions
Package width	255 mm
Package depth	376 mm
Package height	268 mm
Weight	9.8 kg
Width	148 mm
Package weight	10.6 kg
Height	178 mm
Depth	298 mm
Packaging data
Cables included	Output power cable, USB cable
Package width	255 mm
Package depth	376 mm
Package height	268 mm
Package weight	10.6 kg
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	272 mm
Master (outer) case length	397 mm
Master (outer) case height	293 mm
Master (outer) case gross weight	11.2 kg
Products per pallet	48 pc(s)
Pallet gross width	120 cm
Pallet gross length	80 cm
Pallet gross height	2.04 m
Harmonized System (HS) code	8504402000
Packaging content
Cables included	Output power cable, USB cable
