Description

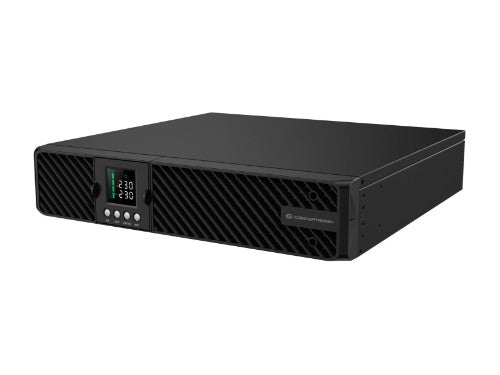

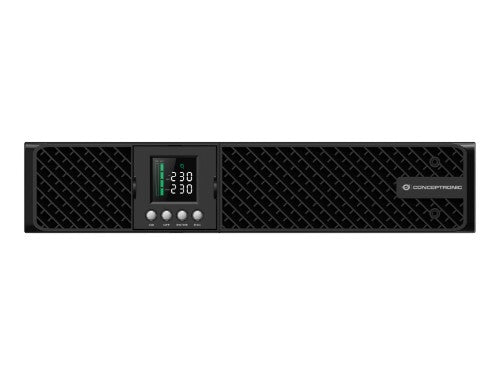

ZEUS51E3K 3000VA 3000W Online UPS, IEC
The Conceptronic Online UPS includes a HID-compatible USB connection for seamless communication with your devices and an Emergency Power Off (EPO) port for added safety during emergencies. The easy battery replacement feature allows for convenient maintenance. Additionally, the outlet programmable management feature enables you to customize power distribution according to your needs.
Simple to install and operate, the Conceptronic Online UPS offers a dependable and efficient way to protect your systems from power surges and failures, ensuring the smooth operation of your critical equipment.
Key Features
- Output power factor 1.0
- ECO mode for energy saving
- Generator compatible
- Provides HID compatible USB connection
- Emergency Power Off (EPO) port
- Easy battery replacement
- THDi≤5%
- Outlet programmable management
Description
The Conceptronic Online UPS is the ultimate solution for reliable battery backup in your home or office. With an output power factor of 1.0, this UPS ensures maximum efficiency and performance. The ECO mode feature helps save energy, making it an environmentally friendly choice. Designed for compatibility with generators, it provides continuous power even during extended outages.The Conceptronic Online UPS includes a HID-compatible USB connection for seamless communication with your devices and an Emergency Power Off (EPO) port for added safety during emergencies. The easy battery replacement feature allows for convenient maintenance. Additionally, the outlet programmable management feature enables you to customize power distribution according to your needs.
Simple to install and operate, the Conceptronic Online UPS offers a dependable and efficient way to protect your systems from power surges and failures, ensuring the smooth operation of your critical equipment.
Specifications
| Power | |
|---|---|
| Output power factor | 1 |
| Output power | 3000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 16 A |
| Emergency Power Off (EPO) | Yes |
| Input current Total Harmonic Distortion (THD) | 5% |
| Output power capacity | 3 kVA |
| ECO mode | Yes |
| Performance | |
| Audible alarm modes | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Programmable sockets | Yes |
| Features | |
| Country of origin | China |
| Audible alarm modes | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power factor | 1 |
| Output power | 3000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 16 A |
| Emergency Power Off (EPO) | Yes |
| Input current Total Harmonic Distortion (THD) | 5% |
| Output power capacity | 3 kVA |
| ECO mode | Yes |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |

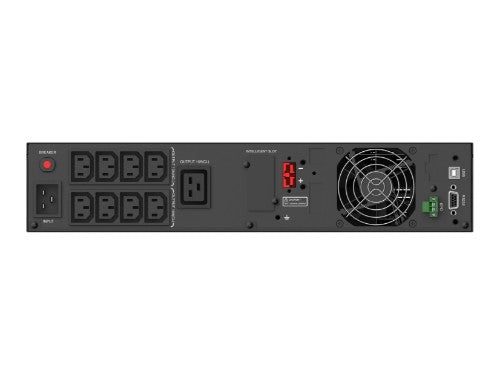

| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C19 coupler |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Programmable sockets | Yes |
| USB port type | USB Type-B |
| Battery | |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery recharge time | 4 h |
| Battery capacity | 108 Wh |
| Design | |
| Country of origin | China |
| Form factor | Desktop |
| Product colour | Black |
| Cooling type | Active |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Harmonized System (HS) code | 8504402000 |
| Compliance certificates | CE, RoHS |
| Cooling | |
| Cooling type | Active |
| Weight & dimensions | |
| Weight | 27.3 kg |
| Width | 438 mm |
| Height | 88 mm |
| Depth | 610 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable, RS-232, USB cable |
| Screws included | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case width | 550 mm |
| Master (outer) case length | 746 mm |
| Master (outer) case height | 226 mm |
| Master (outer) case gross weight | 30.3 kg |
| Products per pallet | 16 pc(s) |
| Pallet gross width | 76 cm |
| Pallet gross length | 110 cm |
| Pallet gross height | 2.14 m |
| Harmonized System (HS) code | 8504402000 |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable, RS-232, USB cable |
| Screws included | Yes |
| Rack mount kit | Yes |
