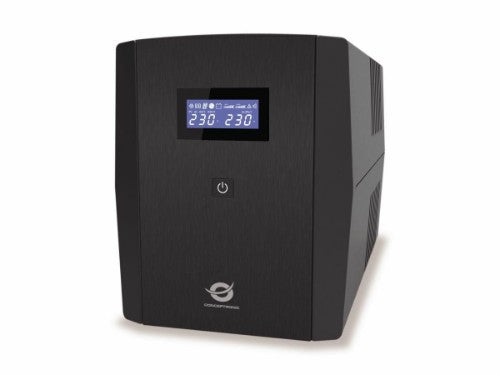

ZEUS08EM 1500VA 900W UPS, IEC, Schuko
Key Features
- Built-in AVR protects against voltage fluctuation
- Powerful microprocessor design
- AC auto restart
- DC Start
- Provides HID compatible USB connection
Description
The Conceptronic UPS provides long-lasting, reliable battery backup for the home or small office. The unit is simple to install and operate, offering an easy and safe way of protecting your systems from harmful power surges and failures. Stylish, compact design makes the UPS ideal for limited office and home working spaces.
Specifications
| Power |
|---|
| Output power |
900 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output power capacity |
1.5 kVA |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Power protection features |
Short circuit |
| Features |
|---|
| Country of origin |
China |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output power |
900 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Power protection features |
Short circuit |
| Output power capacity |
1.5 kVA |
| Ports & interfaces |
|---|
| USB port |
Yes |

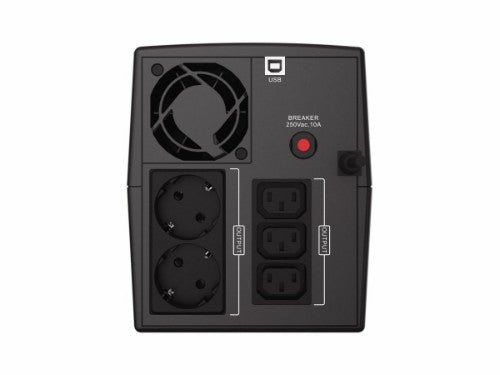

| AC outlets quantity |
5 AC outlet(s) |
| AC outlet types |
C13 coupler, Type F |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB port type |
USB Type-B |
| Battery |
|---|
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery recharge time(90%) |
8 h |
| Battery capacity |
108 Wh |
| Design |
|---|
| Country of origin |
China |
| International Protection (IP) code |
IP20 |
| Form factor |
Compact |
| Product colour |
Black |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Harmonized System (HS) code |
8504402000 |
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Package width |
255 mm |
| Package depth |
376 mm |
| Package height |
268 mm |
| Weight |
9.8 kg |
| Width |
148 mm |
| Package weight |
10.5 kg |
| Height |
178 mm |
| Depth |
298 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, USB cable |
| Package width |
255 mm |
| Package depth |
376 mm |
| Package height |
268 mm |
| Package weight |
10.5 kg |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case width |
272 mm |
| Master (outer) case length |
397 mm |
| Master (outer) case height |
293 mm |
| Master (outer) case gross weight |
11.1 kg |
| Products per pallet |
48 pc(s) |
| Pallet gross width |
120 cm |
| Pallet gross length |
80 cm |
| Pallet gross height |
2.04 m |
| Harmonized System (HS) code |
8504402000 |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, USB cable |
