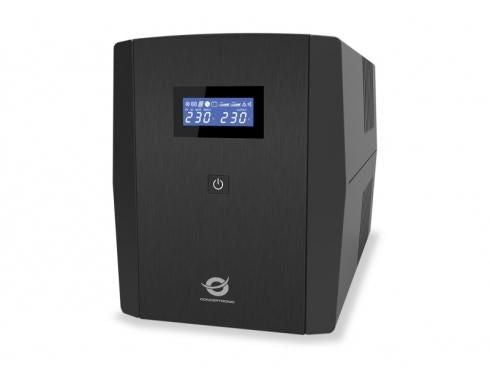

ZEUS 03E, 1200 VA, 720 W, IEC Socket, 220-240 VAC, 9.3 kg
Key Features
- Built-in AVR protects against voltage fluctuation
- Powerful microprocessor design
- AC auto restart
- DC Start
- Modem / LAN Internet protection
- Includes a USB port
Description
The Conceptronic UPS provides long-lasting, reliable battery backup for the home or small office. The unit is simple to install and operate, offering an easy and safe way of protecting your systems from harmful power surges and failures. The UPS comes with modem/LAN protection, a powerful microprocessor and a fault indicator which warns against dangerous wiring. Stylish, compact design makes the UPS ideal for limited office and home working spaces.
Specifications
| Power |
|---|
| Output power |
720 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output power capacity |
1.2 kVA |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |

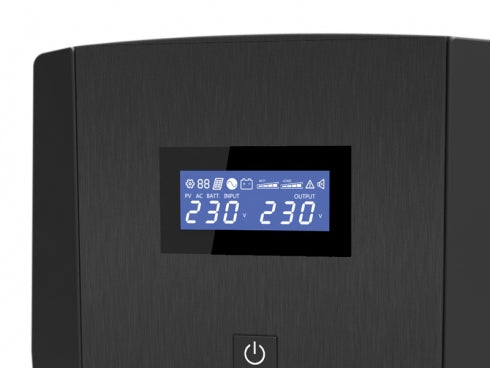

| LED indicators |
Yes |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output power |
720 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Output power capacity |
1.2 kVA |
| Ports & interfaces |
|---|
| USB port |
Yes |

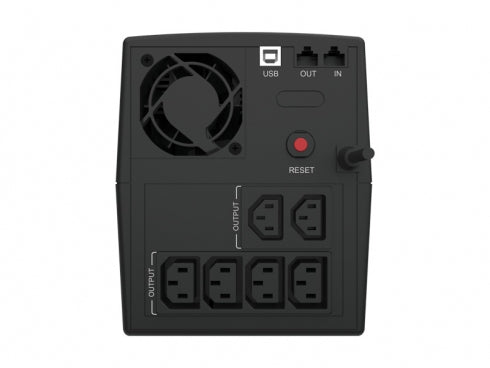

| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
IEC Jumpers |
| Ethernet LAN (RJ-45) ports |
2 |
| Battery |
|---|
| Battery voltage |
24 V |
| Battery recharge time(90%) |
8 h |
| Design |
|---|
| Form factor |
Compact |
| LED indicators |
Yes |
| Product colour |
Black |
| Cooling type |
Active |
| Built-in fan |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Cooling |
|---|
| Cooling type |
Active |
| Built-in fan |
Yes |
| Weight & dimensions |
|---|
| Package width |
193 mm |
| Package depth |
247 mm |
| Package height |
335 mm |
| Weight |
9.3 kg |
| Width |
148 mm |
| Package weight |
9.65 kg |
| Height |
178 mm |
| Depth |
298 mm |
| Package volume |
1 cm³ |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
Output power cable, USB cable |
| Package volume |
1 cm³ |
| Package width |
193 mm |
| Package depth |
247 mm |
| Package height |
335 mm |
| Package weight |
9.65 kg |
| Logistics data |
|---|
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case width |
356 mm |
| Master (outer) case length |
272 mm |
| Master (outer) case height |
600 mm |
| Master (outer) case gross weight |
29.9 kg |
| Harmonized System (HS) code |
85078000 |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
Output power cable, USB cable |
