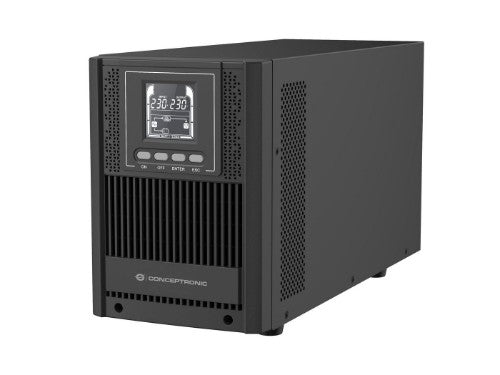

ZEUS52E2K 2000VA 1800W Online Tower UPS, IEC
Key Features
- Output Power Factor 0.9
- ECO Mode for Energy-Saving
- Generator Compatible
- HID USB Communication
- Emergency Power Off (EPO) Port
- THDi≤5%
Description
Introducing the Conceptronic Online Tower UPS, the ultimate power backup solution for your home or office. With an ECO Mode for energy-saving operation and compatibility with generators, this UPS ensures continuous power even during extended outages. Equipped with HID USB communication, you can seamlessly connect and communicate with your devices for enhanced control and monitoring. For added safety during emergencies, the UPS is equipped with an Emergency Power Off (EPO) port, allowing for quick shutdown in critical situations. With its sleek tower design, the Conceptronic Online Tower UPS fits seamlessly into any environment, providing reliable power backup when you need it most.
Specifications
| Power |
|---|
| Output power factor |
0.9 |
| Output power |
1800 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Maximum current |
10 A |
| Emergency Power Off (EPO) |
Yes |
| Input current Total Harmonic Distortion (THD) |
5% |
| Output power capacity |
2 kVA |
| ECO mode |
Yes |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Power protection features |
Short circuit |
| Features |
|---|
| Country of origin |
China |
| Audible alarm modes |
Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Output power factor |
0.9 |
| Output power |
1800 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Maximum current |
10 A |
| Emergency Power Off (EPO) |
Yes |
| Power protection features |
Short circuit |
| Input current Total Harmonic Distortion (THD) |
5% |
| Output power capacity |
2 kVA |
| ECO mode |
Yes |
| Input frequency |
50/60 Hz |

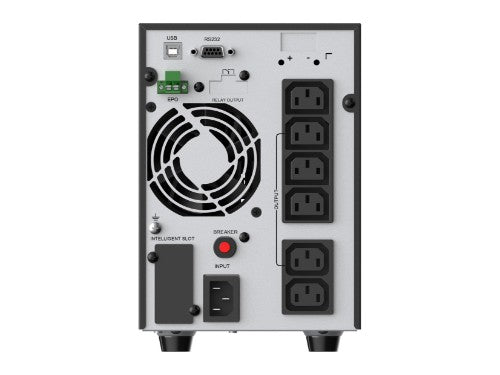

| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
C13 coupler |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| USB port type |
USB Type-B |
| Battery |
|---|
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery recharge time |
4 h |
| Battery capacity |
108 Wh |
| Design |
|---|
| Country of origin |
China |
| Form factor |
Tower |
| Product colour |
Black |
| Cooling type |
Active |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Harmonized System (HS) code |
8504402000 |
| Compliance certificates |
CE, RoHS |
| Cooling |
|---|
| Cooling type |
Active |
| Weight & dimensions |
|---|
| Weight |
17.1 kg |
| Width |
151 mm |
| Height |
225 mm |
| Depth |
394 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, RS-232, USB cable |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case width |
241 mm |
| Master (outer) case length |
510 mm |
| Master (outer) case height |
313 mm |
| Master (outer) case gross weight |
17.6 kg |
| Products per pallet |
30 pc(s) |
| Pallet gross width |
120 cm |
| Pallet gross length |
100 cm |
| Pallet gross height |
12.6 cm |
| Harmonized System (HS) code |
8504402000 |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, RS-232, USB cable |
