17"-32" Dual Monitor Wall-Mounted Bracket
Constructed from high-quality materials, the bracket ensures durability and stability, providing a secure mounting option for your monitors. Its adjustable design allows for flexible positioning, enabling you to tilt, swivel, and rotate each monitor to achieve the optimal viewing angle and reduce glare."
Key Features
- "Max. Load Capacity: 9Kg (Per screen)
- Max. VESA: 100x100
- Screen Rotation: 180°
- Spring-Assisted Mechanism: allows to easily move up and down

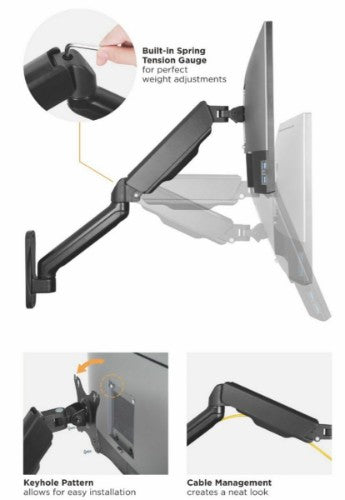

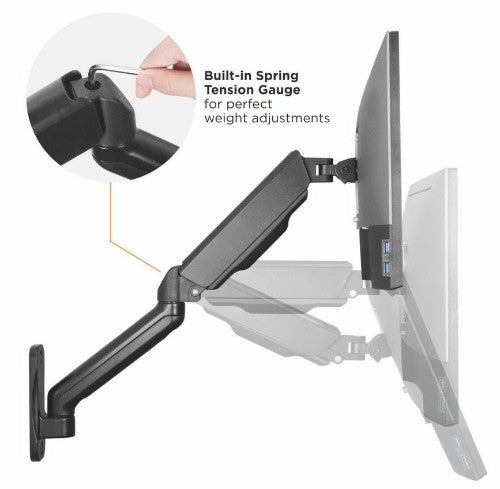

- Built-in Spring Tension Mechanism: for perfect weight adjustments
- Free-Tilting Design: for multiple viewing experiences

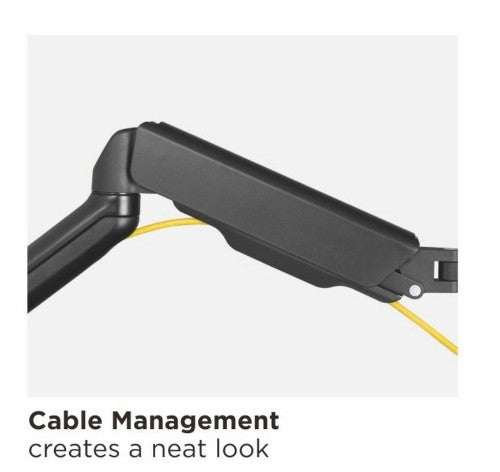

- Built-in Cable management
- VESA standards compliant"
Description
"The Equip 650138 17""-32"" Dual Monitor Wall-Mounted Bracket offers a versatile and space-saving solution for mounting two monitors side by side. Designed to accommodate monitors ranging from 17 inches to 32 inches in size, this bracket is suitable for a variety of setups, whether in the office, home, or gaming environment.Constructed from high-quality materials, the bracket ensures durability and stability, providing a secure mounting option for your monitors. Its adjustable design allows for flexible positioning, enabling you to tilt, swivel, and rotate each monitor to achieve the optimal viewing angle and reduce glare."
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 9 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 2 |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 18 kg |
| Maximum screen size | 81.3 cm (32") |
| Ergonomics | |
| Cable management | Yes |
| Swivel angle | 90° |
| Tilt angle range | -90 - 90° |
| Angle of rotation | 180° |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Aluminium, Plastic, Stainless steel |
| Technical details | |
| Mounting type | Wall |
| Product colour | Black |
| Cable management | Yes |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 969 mm |
| Depth | 101 mm |
| Height | 503 mm |
| Weight | 3.36 kg |
| Package width | 440 mm |
| Package depth | 220 mm |
| Package height | 124 mm |
| Package weight | 3.92 kg |
| Packaging data | |
| Package width | 440 mm |
| Package depth | 220 mm |
| Package height | 124 mm |
| Package weight | 3.92 kg |
| Screws included | Yes |
| Packaging content | |
| Screws included | Yes |
| Other features | |
| Compliance certificates | RoHS |
| Mounting type | Wall |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 220 mm |
| Master (outer) case height | 124 mm |
| Master (outer) case gross weight | 3.92 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8529909090 |
