Basic Flex 19' Cabinet, 26U, 600X800MM, RAL7035 Grey
Key Features
- 26U cabinet, designed for optimal performance in every space
- 600X800MM Server Cabinet
- Ships preassembled for easy setup at your location

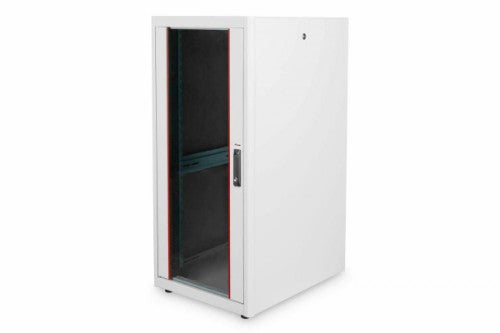

- The cabinet comes with a tempered glass frontdoor to provide unmatched strength while maintaining clear visibility

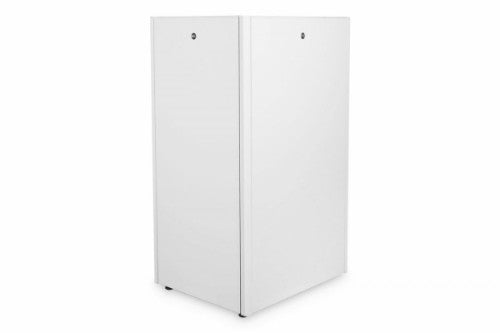

- Sidepanels are removable and lockable
- Backpanel is removable and lockable
Description

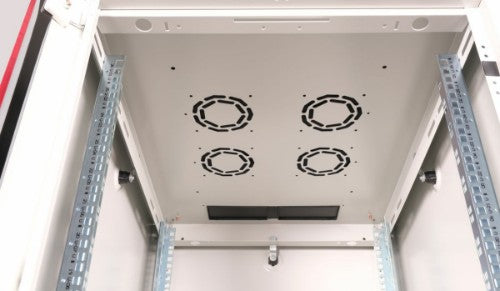

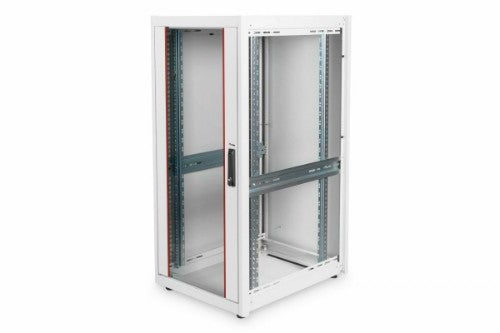

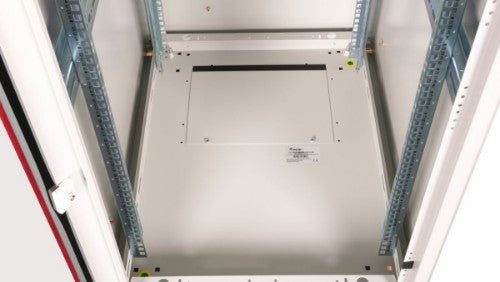

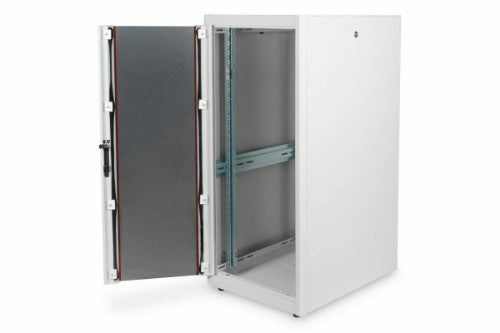

These cabinets, of the Basic Flex Line, are engineered for the efficient and user-friendly installation of both active and passive network components, prioritizing streamlined cable management. Crafted from steel sheets up to 1.5 mm thick, every cabinet guarantees excellent stability, attributed to a unique plate curving technique, forming a sturdy steel framework. They are finished with a powder coating in shades of grey (RAL 7035) and black (RAL 9005). For challenging set-up locations that are less accessible, the cabinet is designed to be disassembled. The doors are easily detachable, and their stops can be switched between right and left orientations. Additionally, the roof is prepped for the integration of an air ventilation unit. Inside, each cabinet houses two sets (4 pieces) of 483 mm (19”) profile rails. These rails, galvanized and marked with height units readable from both directions, are adjustable in depth. To facilitate extensive equipment installations, they're paired with supplementary depth support bars. Cable management is central to the design. The cabinet base features a punched-out cable entry shielded with a metal plate. For the broader 800 mm width cabinets, there are added punched-out cable entries covered with plastic on both sides. These entries are replicated on the roof, with a single one for 600 mm width cabinets and three for the 800 mm width ones. To cater to diverse operational needs, a wide assortment of accessories, including cable management tools and shelves, is readily available.
Specifications
| Features |
|---|
| Size (imperial) |
56.9 cm (22.4") |
| Key lock |
Yes |
| Frame type |
Closed |
| Product design |
4-post |
| Rack capacity |
26U |
| Castor wheels |
No |
| Maximum weight capacity (rolling) |
600 kg |
| Removable back door |
Yes |
| Removable front door |
Yes |
| Removable side panels |
Yes |
| Back door construction |
Steel |
| Front door construction |
Tempered glass |
| Side panel construction |
Steel |
| Cable management |
No |
| Adjustable feet |
Yes |
| Feet adjustment |
3 cm |
| Back door key lock |
Yes |
| Front door key lock |
Yes |
| Side panel key lock |
Yes |
| Type |
Freestanding rack |
| Side panels included |
Yes |
| Maximum weight capacity |
600 kg |
| Material |
Steel |
| Cooling type |
Passive |
| Product colour |
Light grey |
| Adjustable stand |
No |
| Built-in UPS |
No |
| Rack rails |
Yes |
| Stabilising foot screw |
Yes |
| Number of stabilising foot screws |
4 pc(s) |
| Rack rail thickness |
1.5 mm |
| Adjustable depth |
No |
| Assembly required |
No |
| Preassembled |
Yes |
| Soundproof |
No |
| Main PDU |
No |
| Monitoring |
No |
| Door opening angle |
120° |
| Weight & dimensions |
|---|
| Package depth |
880 mm |
| Package width |
680 mm |
| Package height |
1440 mm |
| Inner width |
59.5 cm |
| Inner depth |
79.5 cm |
| Inner height |
115.5 cm |
| Mounting depth (max) |
75 cm |
| Mounting depth (min) |
43 cm |
| Width |
600 mm |
| Depth |
800 mm |
| Height |
1300 mm |
| Weight |
59 kg |
| Size (imperial) |
56.9 cm (22.4") |
| Maximum weight capacity |
600 kg |
| Packaging content |
|---|
| Wall mounting kit |
No |
| Manual |
Yes |
| Quick installation guide |
No |
| Mounting kit |
No |
| Screws included |
No |
| Side panels included |
Yes |
| Packaging data |
|---|
| Wall mounting kit |
No |
| Manual |
Yes |
| Quick installation guide |
No |
| Mounting kit |
No |
| Package depth |
880 mm |
| Package width |
680 mm |
| Package height |
1440 mm |
| Screws included |
No |
| Temperature sensor |
No |
| Plinth panel |
No |
| Grounding kit |
Yes |
| Technical details |
|---|
| Package width |
680 mm |
| Package height |
1440 mm |
| Type |
Freestanding rack |
| Size (imperial) |
56.9 cm (22.4") |
| Side panels included |
Yes |
| Cooling type |
Passive |
| Adjustable stand |
No |
| Pallet net width |
68 cm |
| Pallet net weight |
8 kg |
| Pallet net height |
15 cm |
| Pallet net length |
88 cm |
| Harmonized System (HS) code |
853710980019 |
| Total carbon footprint |
10.089 kg of CO2e |
| Rack capacity |
26U |
| Colour |
|---|
| Product colour |
Light grey |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
Turkey |
| Harmonized System (HS) code |
853710980019 |
