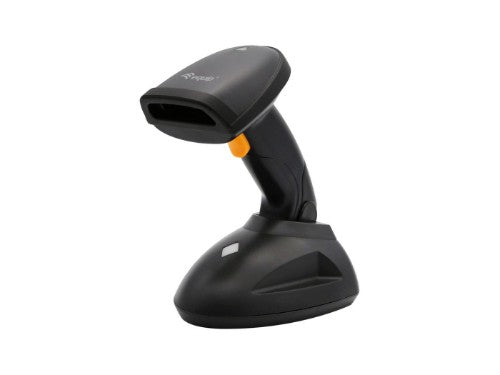

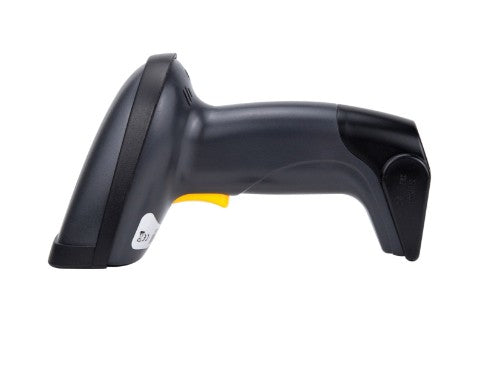

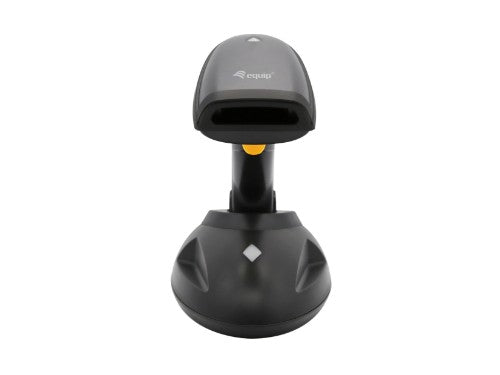

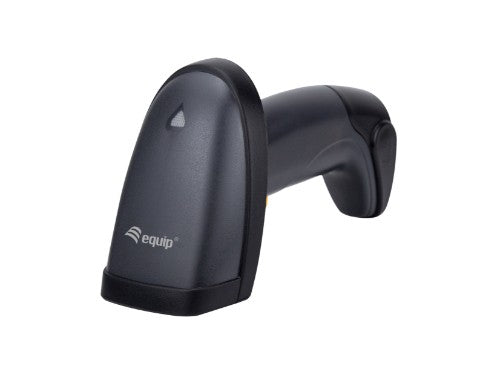

Equip Wireless 2D Barcode Scanner, Long Distance, with Stand

Wireless 2D Barcode Scanner, Long Distance, with Stand

Key Features

• Wireless 2D Laser Barcode Scanner, with frequency 433MHz ISM Band
• Communication range : 100-200 meters in open area
• Precise scanning of 1D & 2D barcodes, ( barcodes & QR code )
• Efficiently deciphers linear barcodes for retail and inventory management.
• Wireless Connectivity: with frequency 433MHz ISM Band
• Durable Construction: Robust design to withstand daily use and potential drops.
• Protected and water-resistant (IP54)
• Wide Scan Range: Reads barcodes from various distances and angles.
• Multiple Scanning Modes: Options for continuous, single, or presentation mode scanning.
• Plug-and-play functionality for quick setup
• Pairing ability base station support up to 20 scanners connection
• Memory save over 2,000 scans data (@ barcode length < 15 bytes)
• Power Source USB from PC / Host system. charging station included.
• Build in battery 3.7V 1500mAh Li-ion. Working time : around 20hours, Standby: 3 months

Description

The Equip Wireless 2D Barcode Scanner with Long-Distance Capability and Stand is a versatile and efficient scanning solution for various industries. This device allows you to effortlessly capture 2D barcodes from a distance, making it ideal for retail, warehousing, and inventory management applications. With the included stand, it can be used hands-free, enhancing productivity and reducing user fatigue. This scanner offers exceptional performance and connectivity options, ensuring seamless integration into your existing systems. Its wireless capabilities provide flexibility, while its long-distance scanning capability ensures reliable data capture, even from a distance. Whether you need to scan barcodes on products, shelves, or packages, this scanner simplifies the process, streamlining operations and improving accuracy.

Specifications

Scanning
Scanner resolution	5 mm
Type	Handheld bar code reader
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417, QR Code
Yaw reading angle	-35 - 35°
Working distance	150 cm
Tilt reading angle	0 - 360°
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	220 reads/s
Pitch reading angle	-30 - 30°
Trigger mode	Auto-induction, Continuous, Manual
Ports & interfaces
Wireless range	200 m
Connectivity technology	Wireless
Operating frequency	433 MHz
Cable length	1.8 m
Standard interfaces	Wireless LAN
Performance
Protection features	Drop proof, Water resistant
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP54
Product colour	Black
Country of origin	China
Design
Type	Handheld bar code reader
Protection features	Drop proof, Water resistant
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP54
Product colour	Black
Power
Power source type	Battery
Number of batteries supported	1
Battery life	20 h
Battery voltage	3.7 V
Battery type	Built-in battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	1500 mAh
Weight & dimensions
Width	111 mm
Depth	175 mm
Height	180 mm
Weight	445 g
Package width	231 mm
Package depth	262 mm
Package height	80 mm
Package weight	685 g
Technical details
Type	Handheld bar code reader
Protection features	Drop proof, Water resistant
Housing material	Acrylonitrile butadiene styrene (ABS)
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mobile operating systems supported	Android, iOS
International Protection (IP) code	IP54
Product colour	Black
Sustainability compliance	Yes
Harmonized System (HS) code	8471900090
Compliance certificates	CE, RoHS
Packaging data
Charging base	Yes
Package width	231 mm
Package depth	262 mm
Package height	80 mm
Package weight	685 g
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Battery
Battery capacity	5.55 Wh
Standby time	3 month(s)
Packaging content
Charging base	Yes
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	485 mm
Master (outer) case gross weight	15 kg
Master (outer) case length	550 mm
Master (outer) case height	420 mm
Harmonized System (HS) code	8471900090
Other features
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mobile operating systems supported	Android, iOS
Quick start guide	Yes
Linux operating systems supported	Yes
