Safe Outdoor 19' Cabinet, 16U, 600X450MM, RAL7035 Grey
Key Features
- 16U cabinet, designed for optimal performance in every space
- 600X450MM Outdoor Cabinet
- Ships preassembled for easy setup at your location
- The cabinet comes with a robust steel frontdoor to prioritize security and long-lasting durability
Description

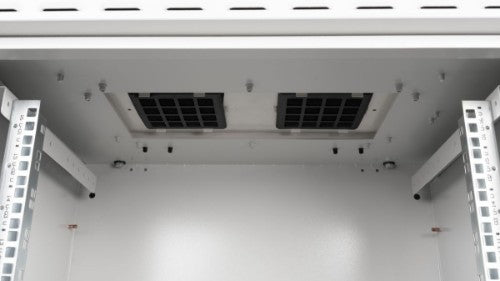

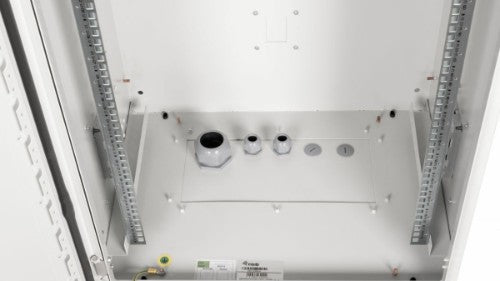

The "Safe Outdoor" Cabinet Line presents the 483 mm (19") IP55 Outdoor Wall Mount Cabinets, tailored for industrial use. Adhering to the IP55 safety standard as per EN 60529, they offer resistance against both water and dirt infiltration. Enhanced security is ensured with a 3-point-locking system complemented by a lockable swing handle and insulated cable entry points. The cabinets also feature integrated air ventilation slots for fresh air circulation, maintaining protection against water and dust as per IP54 standards. These cabinets are ideal for locations exposed to environmental elements like rain, dust, sleet, snow, and splashing water. For more flexibility, these cabinets can be paired with a plinth for standalone setups. When using the plinth, rear mounting holes can be sealed using plugs sourced from the cabinet's base.
Specifications
| Features |
|---|
| Size (imperial) |
34.5 cm (13.6") |
| Key lock |
Yes |
| Frame type |
Closed |
| Product design |
2-post |
| Rack capacity |
16U |
| International Protection (IP) code |
IP55 |
| Castor wheels |
No |
| Removable back door |
No |
| Removable front door |
Yes |
| Removable side panels |
No |
| Back door construction |
Steel |
| Front door construction |
Steel |
| Side panel construction |
Steel |
| Cable management |
No |
| Mounting hole shape |
Square |
| Adjustable feet |
No |
| Back door key lock |
No |
| Front door key lock |
Yes |
| Side panel key lock |
No |
| Type |
Wall mounted rack |
| Side panels included |
No |
| Material |
Steel |
| Cooling type |
Passive |
| Product colour |
Light grey |
| Adjustable stand |
Yes |
| Built-in UPS |
No |
| Rack rails |
No |
| Stabilising foot screw |
No |
| Rack rail thickness |
1.5 mm |
| Adjustable depth |
No |
| Assembly required |
No |
| Preassembled |
Yes |
| Soundproof |
No |
| Main PDU |
No |
| Monitoring |
No |
| Door opening angle |
140° |
| Weight & dimensions |
|---|
| Package depth |
480 mm |
| Package width |
690 mm |
| Package height |
910 mm |
| Inner width |
59.5 cm |
| Inner depth |
44.5 cm |
| Inner height |
71.1 cm |
| Mounting depth (max) |
38.5 cm |
| Mounting depth (min) |
26 cm |
| Width |
600 mm |
| Depth |
450 mm |
| Height |
891 mm |
| Weight |
41 kg |
| Size (imperial) |
34.5 cm (13.6") |
| Packaging content |
|---|
| Wall mounting kit |
Yes |
| Manual |
No |
| Quick installation guide |
No |
| Mounting kit |
No |
| Nuts included |
Yes |
| Number of nuts |
1 |
| Screws included |
No |
| Side panels included |
No |
| Packaging data |
|---|
| Wall mounting kit |
Yes |
| Manual |
No |
| Quick installation guide |
No |
| Mounting kit |
No |
| Nuts included |
Yes |
| Number of nuts |
1 |
| Package depth |
480 mm |
| Package width |
690 mm |
| Package height |
910 mm |
| Screws included |
No |
| Temperature sensor |
No |
| Plinth panel |
No |
| Grounding kit |
Yes |
| Technical details |
|---|
| Package width |
690 mm |
| Package height |
910 mm |
| Type |
Wall mounted rack |
| Size (imperial) |
34.5 cm (13.6") |
| Side panels included |
No |
| Cooling type |
Passive |
| Adjustable stand |
Yes |
| Master (outer) cases per pallet |
8 pc(s) |
| Pallet net width |
110 cm |
| Pallet net weight |
16 kg |
| Pallet net height |
2 m |
| Pallet net length |
130 cm |
| Pallet gross weight |
366.4 kg |
| Harmonized System (HS) code |
853710980019 |
| Total carbon footprint |
7.011 kg of CO2e |
| Rack capacity |
16U |
| International Protection (IP) code |
IP55 |
| Colour |
|---|
| Product colour |
Light grey |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Country of origin |
Turkey |
| Harmonized System (HS) code |
853710980019 |
| Other features |
|---|
| Master (outer) cases per pallet |
8 pc(s) |
