LevelOne Hilbert 28-Port Industrial Gigabit Smart Lite Switch, 24x RJ45, 4x SFP/RJ45 Combo

Hilbert 28-Port Industrial Gigabit Smart Lite Switch, 24x RJ45, 4x SFP/RJ45 Combo

Key Features

• 24 Gigabit Ethernet ports and 4 Gigabit SFP/RJ45 Combo
• Web-based and smart lite Management
• Supports LevelOne IP Locator for easier IP management.
• Supports 8K MAC address auto-learning and auto-aging
• 9K jumbo frames to increase data transfer rates
• IP Multicast Filtering through IGMP Snooping V1 / V2
• 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
• IEEE 802.1p QoS with 4 priority queues
• Supports unknown unicast / broadcast / multicast storm control
• Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
• -40°C to 75°C operating temperature range
• 4KV surge protection, 6KV contact / 8KV air ESD protection
• 19-inch rackmount kit included

Description

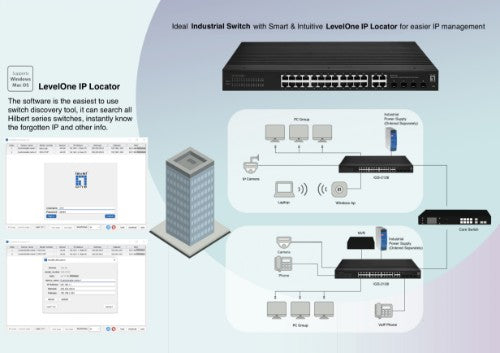

The LevelOne IGS-2128 Hilbert Industrial gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. IGS-2128 delivers 24 (10M/100M/1G) RJ45 ports and 4 Combo GbE RJ45/SFP ports. With the standard 19" Rack mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne IGS-2128 provides high HW performance and environment flexibility for Enterprises. IGS-2128 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	28
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
Gigabit Ethernet (copper) ports quantity	24
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Network
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	32
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
Virtual LAN features	Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Jumbo frames support	Yes
Number of VLANs	32
Security
IGMP snooping	Yes
Queue scheduling algorithms	Priority queuing (PQ)
Multicast features
Multicast support	Yes
Design
International Protection (IP) code	IP30
Product colour	Black
LED indicators	Power, Link, Activity
Rack mounting	Yes
Country of origin	China
Performance
Noise level	0 dB
Mean time between failures (MTBF)	43800 h
Flash memory	2 MB
Fanless	Yes
Packet buffer memory	4.1 MB
Harmonized System (HS) code	8517620090
Power
Power supply included	No
Power protection features	Surge protection
Surge protection voltage	4 kV
Power consumption (typical)	20 W
Redundant power supply (RPS) support	Yes
DC input voltage	12 - 57 V
Surge protection	Yes
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Power protection features	Surge protection
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	68.24 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	32
Virtual LAN features	Port-based VLAN, Tagged VLAN
Weight & dimensions
Width	440 mm
Depth	244 mm
Height	45 mm
Weight	3.4 kg
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Terminal block included	Yes
Packaging data
Terminal block included	Yes
Package type	Box
Package width	510 mm
Package depth	375 mm
Package height	93 mm
Package weight	4 kg
Rack mount kit	Yes
Quick start guide	Yes
Sustainability
Sustainability compliance	Yes
Technical details
Product colour	Black
Noise level	0 dB
Mean time between failures (MTBF)	43800 h
Rack mounting	Yes
Layers per pallet (air)	16 pc(s)
Pallet gross width	120 cm
Pallet gross length	80 cm
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Memory
Packet buffer memory	4.1 MB
Flash memory	2 MB
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Indication
LED indicators	Power, Link, Activity
Other features
Country of origin	China
Logistics data
Country of origin	China
Master (outer) case width	540 mm
Master (outer) case length	320 mm
Master (outer) case height	400 mm
Master (outer) case gross weight	12.5 kg
Products per master (outer) case	3 pc(s)
Pallet gross height	174.4 cm
Harmonized System (HS) code	8517620090
