LevelOne Hilbert 10-Port Industrial Gigabit PoE Smart Lite Switch, 2 x SFP, 8 PoE Outputs, 802.3at/af PoE

Hilbert 10-Port Industrial Gigabit PoE Smart Lite Switch, 2 x SFP, 8 PoE Outputs, 802.3at/af PoE

Key Features

• 8 PoE-Plus Gigabit Ethernet ports supports PoE Watchdog and 2 Gigabit SFP slots
• IEEE 802.3af/at PoE compliant to simplify deployment and installation
• 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
• Supports 4K MAC address auto-learning and auto-aging
• 9K jumbo frames to increase data transfer rates
• IP Multicast Filtering through IGMP Snooping V1 / V2
• 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
• IEEE 802.1p QoS with 4 priority queues
• Supports unknown unicast / broadcast / multicast storm control
• Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
• -40°C to 75°C operating temperature range

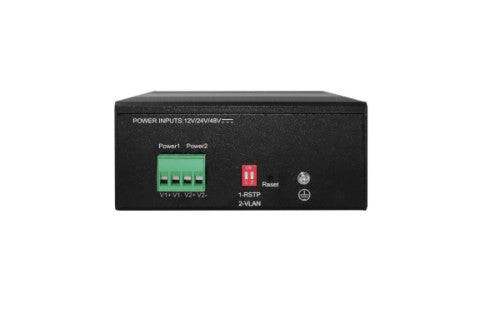

• Redundant power inputs with Terminal Block
• 4KV surge protection, 6KV contact / 8KV air ESD protection
• Web-based and smart lite Management

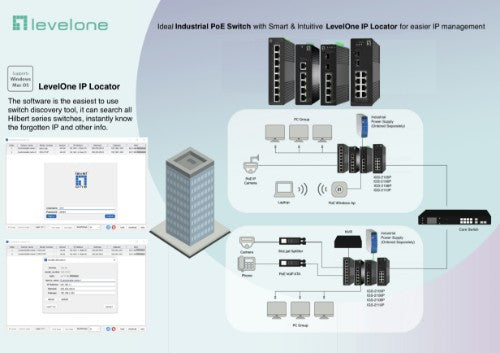

• Supports LevelOne IP Locator for easier IP management.

Description

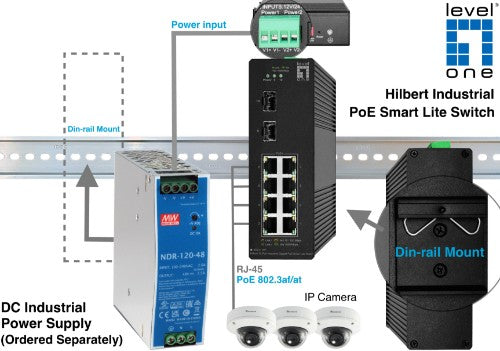

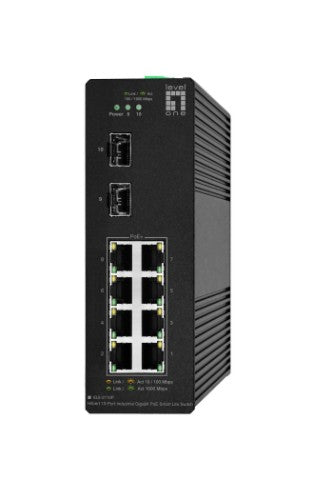

The LevelOne IGS-2110P Hilbert Industrial gigabit PoE smart lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. IGS-2110P delivers 8 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af) ports and 2 Gigabit SFP ports. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne IGS-2110P provides high HW performance and environment flexibility for Enterprises. IGS-2110P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
Fiber uplink ports quantity	2
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Network
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	32
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	1.5 MB
MAC address table	4000 entries
Switching capacity	20 Gbit/s
Jumbo frames support	Yes
Forwarding rate	14.88 Mpps
Number of VLANs	32
Security
IGMP snooping	Yes
Queue scheduling algorithms	Priority queuing (PQ)
Multicast features
Multicast support	Yes
Design
International Protection (IP) code	IP30

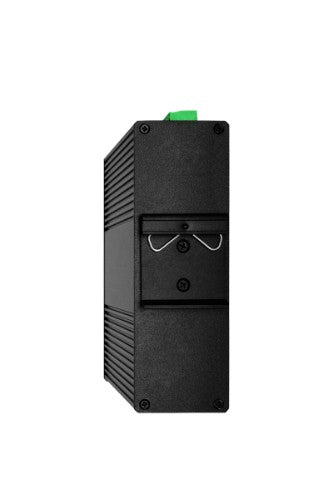

DIN rail mounting	Yes
Product colour	Black
LED indicators	Power, Link, Activity
Country of origin	China
Performance
Noise level	0 dB
Mean time between failures (MTBF)	43800 h
Flash memory	2 MB
Fanless	Yes
Packet buffer memory	1.5 MB
Auto-negotiation	Yes
Harmonized System (HS) code	8517620090
Power
Power supply included	No
Power protection features	Surge protection
Surge protection voltage	4 kV
Power consumption (typical)	120 W
Redundant power supply (RPS) support	Yes
DC input voltage	44 - 57 V
Surge protection	Yes
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	110 W
Power over Ethernet (PoE)	Yes
Power protection features	Surge protection
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	81.89 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	32
Virtual LAN features	Port-based VLAN, Tagged VLAN
Weight & dimensions
Width	149.5 mm
Depth	122.5 mm
Height	50 mm
Weight	550 g
Packaging content
Quick start guide	Yes
Terminal block included	Yes
DIN rail included	Yes
Packaging data
Terminal block included	Yes
Package type	Box
DIN rail included	Yes
Package width	230 mm
Package depth	160 mm
Package height	73 mm
Package weight	780 g
Quick start guide	Yes
Sustainability
Sustainability compliance	Yes
Technical details
Product colour	Black
Noise level	0 dB
Mean time between failures (MTBF)	43800 h
Layers per pallet (air)	16 pc(s)
Pallet gross width	120 cm
Pallet gross length	80 cm
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Memory
Packet buffer memory	1.5 MB
Flash memory	2 MB
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Indication
LED indicators	Power, Link, Activity
Other features
Country of origin	China
Logistics data
Country of origin	China
Master (outer) case width	480 mm
Master (outer) case length	395 mm
Master (outer) case height	350 mm
Master (outer) case gross weight	16 kg
Products per master (outer) case	20 pc(s)
Pallet gross height	154.4 cm
Harmonized System (HS) code	8517620090
