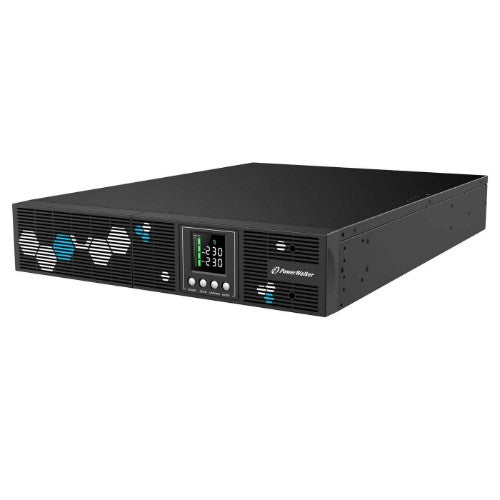

Line-Interactive (VI), 3000VA / 2700W, 8 x IEC – UK Out, 1 x C20-UK In, 6 x 12.0V/9.0Ah
Key Features
- UPS with real programmable outlets!
- Remote, Reboot, Schedule, and Individual switching of the Outlets!
- Remote IP-Response Checking
- Low Own Power Consumption in Normal Mode – Energy Saving Function
- Automatic Voltage Regulator with Pure Sine Wave output
- USB with Human Interface Device (HID) support
- It includes an Intelligent Slot for communication cards
- Rotatable LCD & Selectable Charging Current
- Back-up Times can be extended with Battery Packs!
- Cable Management Tray for your cable retention (optional accessory)
Description
The PowerWalker VI RLP is a compact 2U Line-Interactive series with rack design. This UPS is the perfect outlet manager and will let you control the outlets individually. Remote switching, reboot each outlet, organize a schedule for the outlets, the possibilities are endless! With an output power factor of 0.9 and pure sine wave output, even the small models can cover most needs and loads. Batteries are easily replaceable by every user.
Specifications
| Power |
|---|
| Output voltage regulation |
10% |
| Output frequency regulation |
1 Hz |
| Output power |
2700 W |
| Input operation voltage (min) |
165 V |
| Input operation voltage (max) |
290 V |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Output power capacity |
3 kVA |
| Efficiency (On-line mode) |
98.8% |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
6 ms |
| LED indicators |
Yes |
| Power protection features |
Overload |
| Noise level |
45 dB |
| Programmable sockets |
Yes |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Output voltage regulation |
10% |
| Output frequency regulation |
1 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
6 ms |
| Output power |
2700 W |
| Input operation voltage (min) |
165 V |
| Input operation voltage (max) |
290 V |
| Emergency Power Off (EPO) |
Yes |
| Power protection features |
Overload |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
45 dB |
| Output power capacity |
3 kVA |
| Efficiency (On-line mode) |
98.8% |
| Input frequency |
45/65 Hz |
| Power source type |
AC |
| Detachable power cord |
Yes |
| Ports & interfaces |
|---|
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| SmartSlot |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
C20 coupler |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| Programmable sockets |
Yes |
| USB port type |
USB Type-B |
| Battery |
|---|
| Number of batteries supported |
6 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery recharge time |
4 h |
| Typical backup time at half load |
9 min |
| Typical backup time at full load |
2.5 min |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| LED indicators |
Yes |
| Product colour |
Black |
| Cooling type |
Active |
| Built-in fan |
Yes |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE |
| Certificates |
|---|
| Compliance certificates |
CE |
| Cooling |
|---|
| Cooling type |
Active |
| Built-in fan |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Package width |
556 mm |
| Package depth |
740 mm |
| Package height |
231 mm |
| Weight |
35.8 kg |
| Width |
438 mm |
| Package weight |
38.4 kg |
| Height |
88 mm |
| Depth |
610 mm |
| Packaging data |
|---|
| Package width |
556 mm |
| Package depth |
740 mm |
| Package height |
231 mm |
| Bundled software |
PowerMaster |
| Package weight |
38.4 kg |
| Other features |
|---|
| Nominal output voltage |
230 V |
| Packaging content |
|---|
| Bundled software |
PowerMaster |
