Description
50 VA, 520 W, Input: C14, Outputs: (4) C13, Rack, 1U, BS Input cord
Description

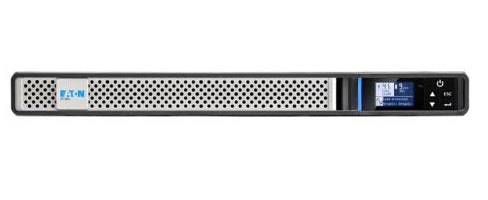

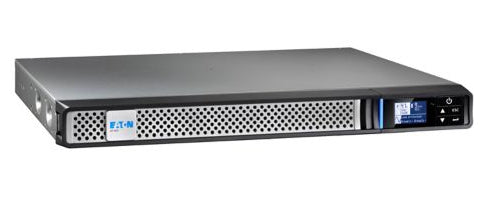

Eaton 5P Gen2 650i - UPS (rack-mountable) - AC 200/208/220/230/240 V - 520 Watt - 650 VA - 1-phase - 9 Ah - RS-232 USB - output connectors: 4 - 1U - 19 - black/silverSpecifications
| Power | |
|---|---|
| Output power factor | 0.8 |
| Output power | 520 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 294 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 97% |
| Output power capacity | 0.65 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Noise level | 35 dB |
| Features | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.8 |
| Output power | 520 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 294 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 97% |
| Noise level | 35 dB |
| Output power capacity | 0.65 kVA |
| Input frequency | 47/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |

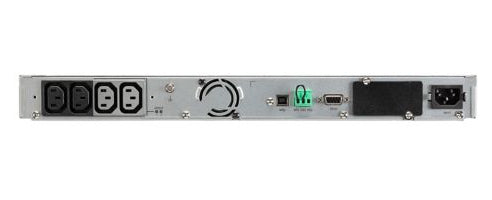

| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Serial ports quantity | 1 |
| Battery | |
| Battery voltage | 6 V |
| Battery capacity | 9 Ah |
| Battery technology | Lead-Acid |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount |
| Product colour | Black, Silver |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Compliance certificates | BIS, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RoHS, UKCA, WEEE, cTUVus |
| Certificates | |
| Compliance certificates | BIS, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RoHS, UKCA, WEEE, cTUVus |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | Yes |
| Weight & dimensions | |
| Weight | 8.86 kg |
| Width | 438 mm |
| Height | 43.2 mm |
| Depth | 361 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | Yes |
