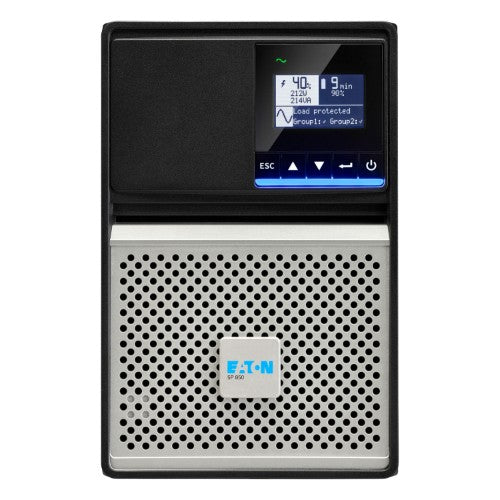

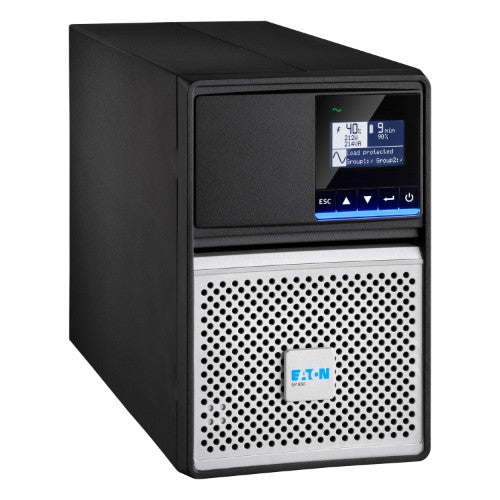

Eaton 5P850IG2BS uninterruptible power supply (UPS) Line-Interactive 680 W 6 AC outlet(s)

5P Gen2 UPS, 850 VA, 680 W, Input: C14, Outputs: (6) C13, Tower, BS Input cord

Description

Eaton 5P 850i - Gen 2 - UPS - tower - AC 200/208/220/230/240 V - 680 Watt - 850 VA - 1-phase - 7 Ah - RS-232 USB - output connectors: 6 - black/silver

Specifications

Power
Output power	680 W
Input operation voltage (min)	150 V
Input operation voltage (max)	294 V
Output operation voltage (max)	240 V
Efficiency	98%
Performance
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Noise level	35 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
Output power	680 W
Input operation voltage (min)	150 V
Input operation voltage (max)	294 V
Output operation voltage (max)	240 V
Efficiency	98%
Noise level	35 dB
Input frequency	47/70 Hz
Heat dissipation	307 BTU/h

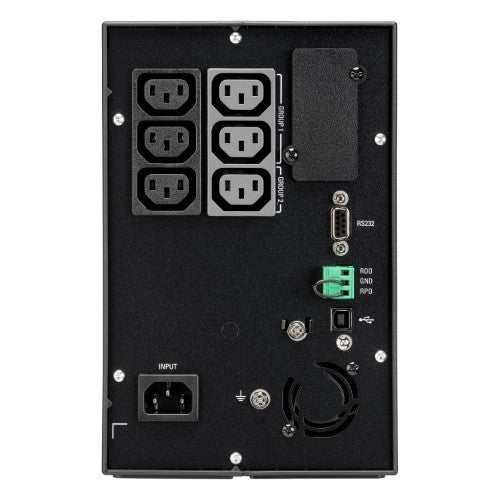

Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
USB port type	USB Type-B
Battery
Number of batteries supported	2
Battery voltage	12 V
Battery capacity	7 Ah
Battery technology	Sealed Lead Acid (VRLA)
Design
Form factor	Tower
Product colour	Black, Silver
Certification	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Technical details
Output frequency	50/60 Hz
Weight & dimensions
Weight	10.5 kg
Width	150 mm
Height	233 mm
Depth	345 mm
Packaging data
Rack mount kit	No
Certificates
Certification	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Packaging content
Rack mount kit	No
