0.65" 4K-UHD, 3840x2160, 5200 RGB Laser Lum, F=2.5-3.26, f=20.911-32.62mm, 30"-300"
Key Features
- Innovative home installation projector with RGB laser technology
- Unmatched color performance with 100% coverage of the BT.2020 color space
- 5,200 RGB Laser Lumens for uninterrupted big-screen fun in any lighting condition
- True 4K HDR immersive visuals and high contrast enabled by a 0.65-inch DMD chip
- Flexible installation options: 1.6x optical zoom, vertical lens shift, and H/V keystone correction
- 1440p@120Hz for immersive gaming experience with Xbox and PS5
Description
The LX700-4KE RGB projector sets a new standard in home cinema with its RGB laser technology, enhancing image quality for an exceptional viewing experience. Utilizing advanced laser projection, it achieves 100% BT.2020 color gamut coverage, delivering vivid, lifelike colors that bring your favorite shows to life. With 5,200 RGB Laser Lumens, 4K UHD resolution, and HDR/HLG support, it ensures a bright, crystal-clear, vibrant viewing experience at any time. The projector's high contrast ratio, powered by the Texas Instruments 0.65-inch DMD chip, reveals intricate details in dark scenes and enriches blacks for complete visual immersion. Its 1.6x optical zoom, vertical lens shift, and side projection capabilities, complemented by H/V keystone and 4-corner adjustment, offer versatile installation options, making setup and home cinema upgrades effortless. As one of the first “Designed for Xbox” projectors, it also provides outstanding gaming performance at an optimal 1440p@120Hz, ensuring total immersion in all your home entertainment pursuits.
Specifications
| Projector |
|---|
| Number of colours |
1.07 billion colours |
| Projector native resolution |
UHD 4K (3840x2160) |
| Native aspect ratio |
16:9 |
| Supported aspect ratios |
16:9 |
| Screen size compatibility |
762 - 7620 mm (30 - 300") |
| Projection distance |
0.93 - 14.88 m |
| Contrast ratio (typical) |
3500000:1 |
| Zoom capability |
Yes |
| Vertical scan range |
23 - 240 Hz |
| Horizontal scan range |
15 - 225 kHz |
| Keystone correction, vertical |
-30 - 30° |
| Keystone correction, horizontal |
-30 - 30° |
| Lamps |
|---|
| Light source type |
Laser |
| Light source |
|---|
| Light source type |
Laser |
| Lens system |
|---|
| Zoom capability |
Yes |
| Focal length range |
20.911 - 32.62 mm |
| Aperture range (F-F) |
2.5 - 3.26 |
| Vertical lens shift range |
-15 - 0% |
| Throw ratio |
1.4 - 2.24 |
| Offset |
137% |
| Scanning frequency |
|---|
| Vertical scan range |
23 - 240 Hz |
| Horizontal scan range |
15 - 225 kHz |
| Video |
|---|
| Full HD |
Yes |

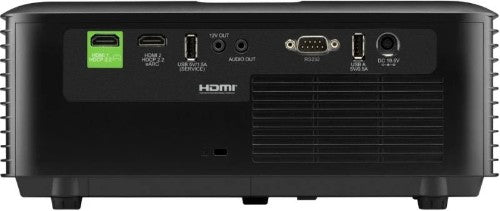

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| HDMI ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Audio (L/R) out |
1 |
| Serial interface type |
RS-232 |
| Network |
|---|
| Ethernet LAN |
No |
| Sound emission |
|---|
| Noise level |
30 dB |
| Noise level (economic mode) |
27 dB |
| Technical details |
|---|
| DC-in jack |
Yes |
| Product colour |
Black |
| Performance |
|---|
| Market positioning |
Education |
| Vertical scan range |
23 - 240 Hz |
| Horizontal scan range |
15 - 225 kHz |
| Noise level |
30 dB |
| Noise level (economic mode) |
27 dB |
| Features |
|---|
| Noise level |
30 dB |
| Noise level (economic mode) |
27 dB |
| Design |
|---|
| Market positioning |
Education |
| Product type |
Standard throw projector |
| Product colour |
Black |
| LED indicators |
Yes |
| Placement |
Ceiling |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC adapter output voltage |
19.5 V |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power source |
AC |
| Power consumption (typical) |
145 W |
| Power consumption (standby) |
0.5 W |
| Packaging data |
|---|
| Package width |
400 mm |
| Package depth |
280 mm |
| Package height |
155 mm |
| Package weight |
4 kg |
| Indication |
|---|
| LED indicators |
Yes |
| Weight & dimensions |
|---|
| Package width |
400 mm |
| Package depth |
280 mm |
| Package height |
155 mm |
| Weight |
2.7 kg |
| Width |
286 mm |
| Depth |
216 mm |
| Height |
129 mm |
| Package weight |
4 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Manual |
Yes |
| AC adapter included |
Yes |
