Description

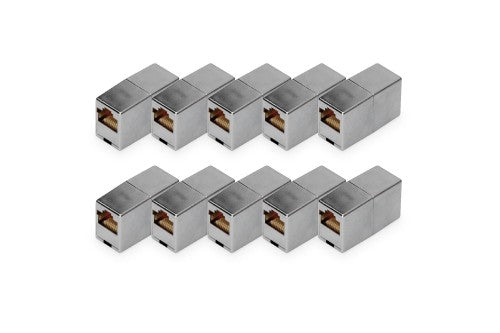

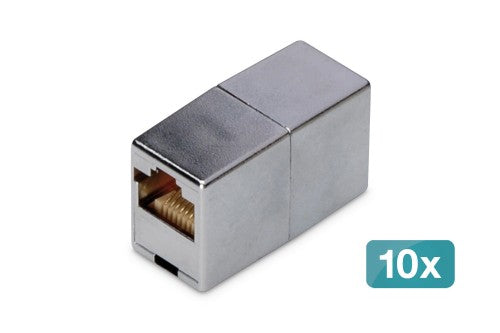

CAT 5e Modular Coupler, shielded RJ45 to RJ45, 10 pc.
- The RJ45 sockets are shielded which provides optimized safety
- The coupler offers a long life time (mating cycles)
The modular CAT5e Class D coupler from DIGITUS® consists of two shielded RJ45 female ports. The assignment is "1:1".
Key Features
- Technical properties:
- Housing material: ABS UL-94V-0
- Contacts coating: Nickel, gold-plated 0.5 µ
- Shielding: Tinned bronze
- PCB:FR4, UL 94V-0
- Material contacts: Phosphor bronze
- Physical properties:
- Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- 10 pieces
Description
- Quick and easy extention of patch cables- The RJ45 sockets are shielded which provides optimized safety
- The coupler offers a long life time (mating cycles)
The modular CAT5e Class D coupler from DIGITUS® consists of two shielded RJ45 female ports. The assignment is "1:1".
Specifications
| Ports & interfaces | |
|---|---|
| Connector contacts plating | Gold |
| Connector 2 | RJ-45 |
| Connector 1 | RJ-45 |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Performance | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Plug and Play | Yes |
| Product colour | Silver |
| Packaging content | |
| Quantity per pack | 10 pc(s) |
| Technical details | |
| Plug and Play | Yes |
| Product colour | Silver |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Design | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | Silver |
