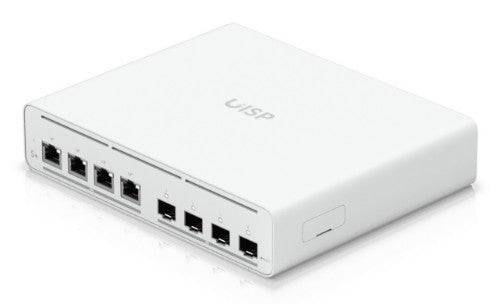

Description
4 x RJ-45, 4 x SFP+, Bluetooth, 100 Gbps, PoE, 210.4 x 170.2 x 43.7 mm, 1750 g
Key Features
- (4) 2.5 GbE RJ45 ports with 27V passive PoE output
- (4) 10G SFP+ ports
- 160W (27V) total PoE availability, 20W/port (2-pair) / 40W/port (4-pair)
- Port isolation, speed limiting, and DHCP snooping functionality
- (1) Power TransPort™ input for DC redundancy
- Desk, wall, 1U rack, and outdoor mounting
- Standalone management through local web interface and UISP Application integration
Description
2.5 GbE PoE switch for ISP applications.Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | AC/DC |
| 2.5G Ethernet (copper) ports quantity | 4 |
| Network | |
| 10G support | No |
| Data transmission | |
| Switching capacity | 100 Gbit/s |
| Forwarding rate | 74.4 Mpps |
| Throughput | 50 Gbit/s |
| Security | |
| DHCP features | DHCP snooping |
| Design | |
| Wall mountable | Yes |
| Form factor | 1U |
| Product colour | White |
| LED indicators | LAN, System |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Steel |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 1400 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A55 |
| Power | |
| Power consumption (max) | 25 W |
| Power supply included | Yes |
| Input current | 7.04 A |
| DC input voltage | 24 - 28 V |
| Power source | AC/DC |
| Power connector | AC/DC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 160 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) voltage | 27 V |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 210.4 mm |
| Depth | 170.2 mm |
| Height | 43.7 mm |
| Weight | 1.75 kg |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Processor frequency | 1400 MHz |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Steel |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Memory | |
| Memory type | DDR4-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication | |
| LED indicators | LAN, System |
| Packaging data | |
| Manual | Yes |
