Description

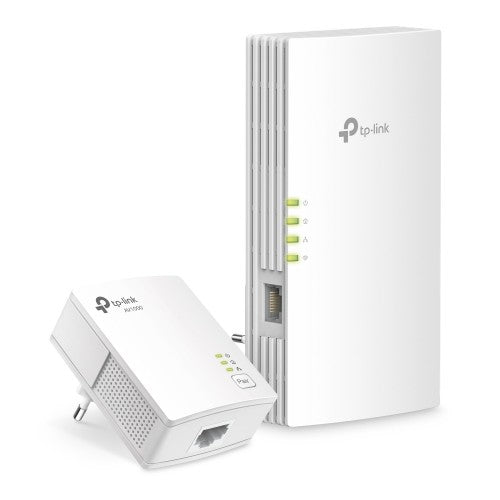

AV1000 Gigabit Powerline AX1500 Wi-Fi 6 Kit
AV1000 Gigabit Powerline AX1500 Wi-Fi 6 Kit

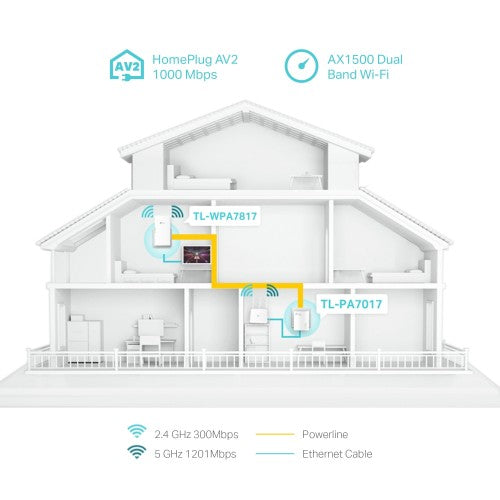

Extend Wired and Wireless Network Using Electrical System
TL-WPA7817 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.
> No need for drilling or wire installation
> Network passes through walls and floors
> Expand coverage by adding more extenders

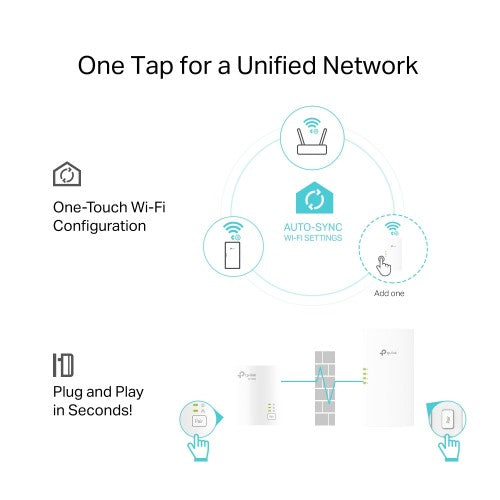

One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup. Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.
AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7817 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters†. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

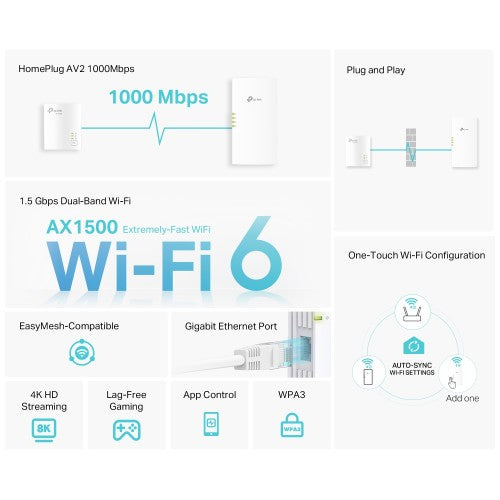

Key Features
- Homeplug AV2 Standard Compliant: Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters‡
- Blazing Fast WiFi 6: AX1500 dual band WiFi (1201 Mbps on 5GHz & 300 Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home†
- Plug, Pair and Play: Quickly set up a secured Powerline network
- Wi-Fi Auto-Sync: Simply copy your router's Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move

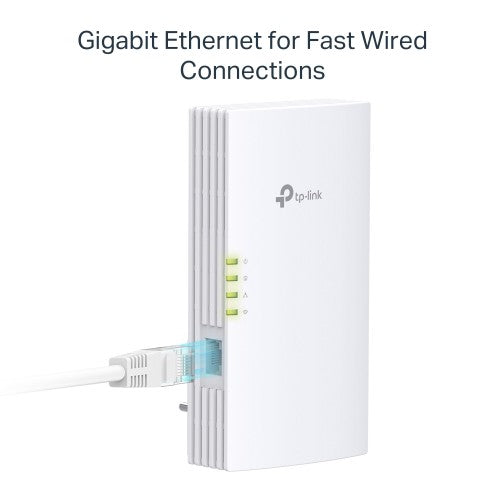

- Gigabit Ethernet Port: Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS
- EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
Description
Extend AX1500 Wi-Fi and Gigabit Networking to Every RoomAV1000 Gigabit Powerline AX1500 Wi-Fi 6 Kit
Extend Wired and Wireless Network Using Electrical System
TL-WPA7817 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.
> No need for drilling or wire installation
> Network passes through walls and floors
> Expand coverage by adding more extenders
One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup. Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.
AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7817 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters†. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Specifications
| Performance | |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Power plug | Type E |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES, WEP, WPA-PSK, WPA2-PSK |
| Maximum operating distance | 300 m |
| Plug and Play | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| Technical details | |
| Antenna type | Internal |
| Ethernet LAN interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Power plug | Type E |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES, WEP, WPA-PSK, WPA2-PSK |
| Maximum operating distance | 300 m |
| LED indicators | Yes |
| Product colour | White |
| Plug and Play | Yes |
| Compliance certificates | CE, RoHS |
| Design | |
| Antenna type | Internal |
| LED indicators | Yes |
| Product colour | White |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 78 mm |
| Depth | 33.9 mm |
| Height | 149 mm |
| Packaging data | |
| Package type | Box |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Packaging content | |
| Quantity per pack | 2 pc(s) |
| Package type | Box |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
