Description
4x 3.5", Alpine AL524, 4-core, 2.0 GHz, 4 GB SODIMM DDR4, 512 MB Flash, 1x 120 mm, Hot-Swap, WOL, PCIe, SFP+, Ethernet, USB, 12 VDC, 226.5 × 170 × 165 mm, 1.99 kg
Quad-core for multitasking
Quad-core 2.0GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)
High-speed 10GbE SFP+
Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.
2.5GbE is a must!
Leverage SMB Multichannel or Port Trunking with built-in dual 2.5GbE ports to increase bandwidth and access speed.
PCIe Gen 3 expandability
Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M.2 SSD slots to the NAS for more I/O potential.
Faster USB transfer and backup
Two USB 3.2 Gen 1 (5Gbps) ports with One Touch Copy support allow faster backup to/from USB devices.
Centralized backup and snapshot protection
Easily back up different types of data and endpoints and create snapshots regularly to prevent ransomware threats.

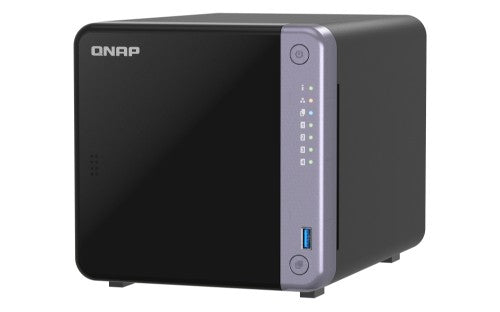

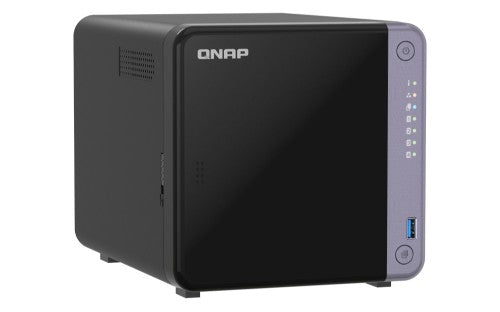

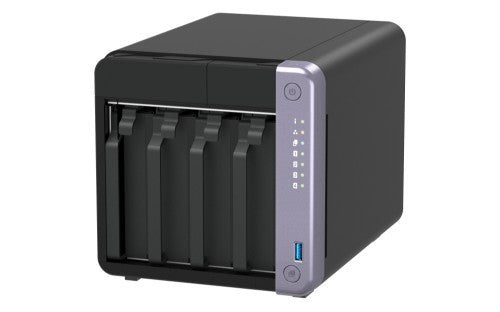

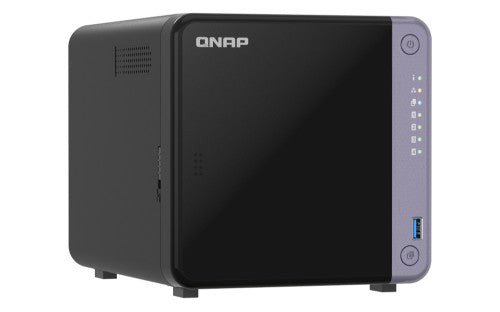

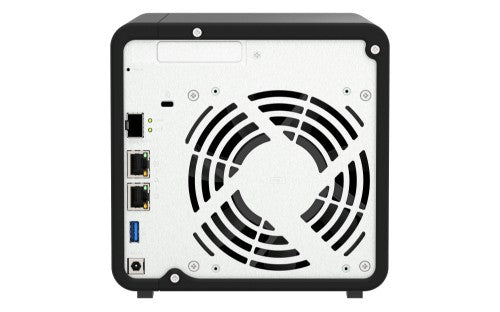

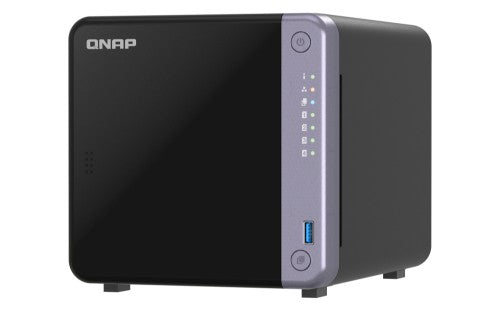

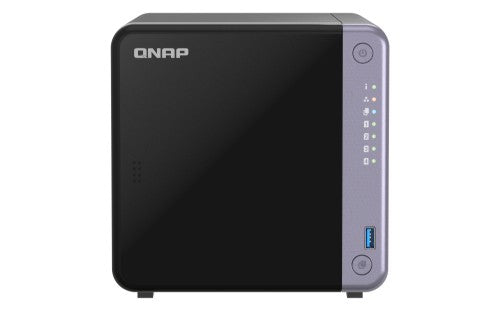

TS-432X-4G
AnnapurnaLabs, an Amazon company Alpine AL524, 4-core, 2.0GHz, 4 GB SODIMM DDR4 (1 x 4 GB)
High-performance yet energy-efficient quad-core processor
The TS-432X adopts a quad-core processor with built-in 4 GB of memory, offering excellent read/write performance at low power consumption, making it reliable for hosting versatile NAS applications in office.
Enhance seamless workflows with 10GbE network
Create a flexible, high-speed network environment to optimize team collaboration.
1. Quick direct access for individuals：Utilize the TS-432X's built-in 2.5GbE and 10GbE ports to achieve faster LAN speeds.
2. Efficient collaboration with multiple users: Implement the TS-432X with expansion cards and QNAP 10GbE SFP+ switches to connect more devices.
Multiply bandwidth for streamlined tasks
By using the built-in network ports or installing an expansion card, you can maximize the network bandwidth of the TS-432X by aggregating two or more same-speed network ports. Choose from the following options according to your needs:
SMB Multichannel：
Suited for small/home office users. Fulfill multiplied available bandwidth between NAS and directly-connected clients to accelerate file transfer speed.
Port Trunking：
Recommended for midsized to large businesses where IT infrastructure involves network switches and multiple end-users.
Abundant I/O capabilities with PCIe expansion
The TS-432X features a PCIe Gen 3 x 4 slot, supporting a variety of expansion cards to maximize application versatility.
Store, backup and video surveillance.
We enable ALL.
Smart storage
QNAP’s exclusive apps provide easy-to-use file storage and collaboration tools. Snapshots also help protect important data from Ransomware.
Simple Backup
Superior hardware performance with an all-in-one Backup Solution to speed up backup/recovery tasks.
Video Surveillance
Turn the TS-432X into a professional, all-in-one Surveillance NAS, which is compatible with over 8,000 IP cameras and ONVIF-compatible cameras.
Host container applications
If you are curious about Docker or are a hobbyist developer, Container Station on the TS-432X integrates Docker® lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub®, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.
Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-432X.
Enhanced cybersecurity and data protection
The TS-432X is loaded with comprehensive privilege settings and protection measures to block malicious attackers and ensure that data in the NAS are secure.
Drive health check & failure prediction
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
Less packaging. More sustainability.
The TS-432X come in a lighter protective package, ensuring their safety while reducing waste.
Description
Unlock the potential of 4-bay storage capacity and harness the speed of 10GbE with the TS-432X! This versatile storage solution offers secure backup, rapid transmission, support for container applications, and much more. Cost-effective yet powerful, the TS-432X streamlines workflow efficiency without exceeding your budget.Quad-core for multitasking
Quad-core 2.0GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)
High-speed 10GbE SFP+
Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.
2.5GbE is a must!
Leverage SMB Multichannel or Port Trunking with built-in dual 2.5GbE ports to increase bandwidth and access speed.
PCIe Gen 3 expandability
Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M.2 SSD slots to the NAS for more I/O potential.
Faster USB transfer and backup
Two USB 3.2 Gen 1 (5Gbps) ports with One Touch Copy support allow faster backup to/from USB devices.
Centralized backup and snapshot protection
Easily back up different types of data and endpoints and create snapshots regularly to prevent ransomware threats.
TS-432X-4G
AnnapurnaLabs, an Amazon company Alpine AL524, 4-core, 2.0GHz, 4 GB SODIMM DDR4 (1 x 4 GB)
High-performance yet energy-efficient quad-core processor
The TS-432X adopts a quad-core processor with built-in 4 GB of memory, offering excellent read/write performance at low power consumption, making it reliable for hosting versatile NAS applications in office.
Enhance seamless workflows with 10GbE network
Create a flexible, high-speed network environment to optimize team collaboration.
1. Quick direct access for individuals：Utilize the TS-432X's built-in 2.5GbE and 10GbE ports to achieve faster LAN speeds.
2. Efficient collaboration with multiple users: Implement the TS-432X with expansion cards and QNAP 10GbE SFP+ switches to connect more devices.
Multiply bandwidth for streamlined tasks
By using the built-in network ports or installing an expansion card, you can maximize the network bandwidth of the TS-432X by aggregating two or more same-speed network ports. Choose from the following options according to your needs:
SMB Multichannel：
Suited for small/home office users. Fulfill multiplied available bandwidth between NAS and directly-connected clients to accelerate file transfer speed.
Port Trunking：
Recommended for midsized to large businesses where IT infrastructure involves network switches and multiple end-users.
Abundant I/O capabilities with PCIe expansion
The TS-432X features a PCIe Gen 3 x 4 slot, supporting a variety of expansion cards to maximize application versatility.
Store, backup and video surveillance.
We enable ALL.
Smart storage
QNAP’s exclusive apps provide easy-to-use file storage and collaboration tools. Snapshots also help protect important data from Ransomware.
Simple Backup
Superior hardware performance with an all-in-one Backup Solution to speed up backup/recovery tasks.
Video Surveillance
Turn the TS-432X into a professional, all-in-one Surveillance NAS, which is compatible with over 8,000 IP cameras and ONVIF-compatible cameras.
Host container applications
If you are curious about Docker or are a hobbyist developer, Container Station on the TS-432X integrates Docker® lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub®, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.
Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-432X.
Enhanced cybersecurity and data protection
The TS-432X is loaded with comprehensive privilege settings and protection measures to block malicious attackers and ensure that data in the NAS are secure.
Drive health check & failure prediction
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
Less packaging. More sustainability.
The TS-432X come in a lighter protective package, ensuring their safety while reducing waste.
Specifications
| Storage | |
|---|---|
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| Auto-rebuild | Yes |
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 4 |
| Storage drive capacity | 0 GB |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, 50, JBOD |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID rebuild | Yes |
| Processor | |
| Processor manufacturer | Annapurna Labs |
| Processor frequency | 2 GHz |
| Processor family | Alpine |
| Processor model | Alpine AL-524 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 4 GB |
| Maximum RAM supported | 16 GB |
| Memory slots | 1 |
| Flash memory | 512 MB |
| Memory form factor | SO-DIMM |
| ECC | Yes |
| Network | |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Supported network protocols | IPv4, IPv6 |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
| Ethernet LAN (RJ-45) ports | 2 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, 50, JBOD |
| Design | |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Built-in display | No |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| LED indicators | HDD, LAN, Power, Status, USB |
| Chassis type | Tower |
| Cable lock slot | Yes |
| Technical details | |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| Built-in display | No |
| Product colour | Black |
| Number of users | 4096 user(s) |
| LED indicators | HDD, LAN, Power, Status, USB |
| Chassis type | Tower |
| Buzzer | Yes |
| Number of fans | 1 fan(s) |
| Performance | |
| Built-in FTP server | Yes |
| System log | Yes |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 Core, Windows Server 2016, Windows Server 2022 |
| Other operating systems supported | Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Reset button | Yes |
| Operating system version | 5.1.7 |
| Operating system installed | QNAP QTS |
| Number of users | 4096 user(s) |
| Buzzer | Yes |
| Access Control List (ACL) | Yes |
| Snapshot | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Security | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Access Control List (ACL) | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 Core, Windows Server 2016, Windows Server 2022 |
| Other operating systems supported | Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Operating system version | 5.1.7 |
| Operating system installed | QNAP QTS |
| Management features | |
| On/off switch | Yes |
| Reset button | Yes |
| Power | |
| Output voltage | 12 V |
| Power supply location | External |
| Power supply unit (PSU) capacity | 90 W |
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 165 mm |
| Height | 226.5 mm |
| Weight | 1.99 kg |
| Package weight | 4.8 kg |
| Packaging content | |
| Number of screws | 28 |
| Package type | Box |
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 Core, Windows Server 2016, Windows Server 2022 |
| Other operating systems supported | Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package weight | 4.8 kg |
| Cables included | AC, LAN (RJ-45) |
