Description
Enterprise Fortress Gateway, 25G, 1.3" touchscreen, 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8"), Aluminium CNC, SGCC steel
Key Features
- Runs UniFi Network for full-stack network management
- Shadow Mode High Availability with automatic failover provides uninterrupted connectivity (VRRP)*
- 12.5 Gbps routing with IDS/IPS
- License-free, real-time inspection of encrypted packets with NeXT AI Inspection (SSL/TLS decryption)

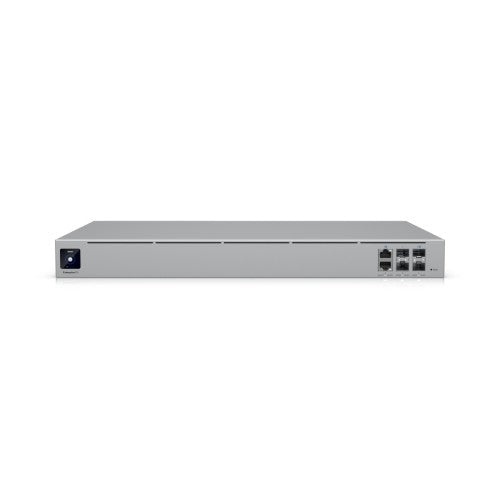

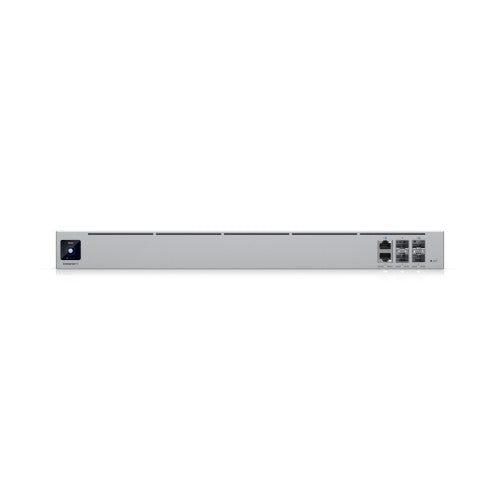

- (2) 25G SFP28**, (2) 10G SFP+**, and (2) 2.5 GbE RJ45 ports (all LAN/WAN remappable)

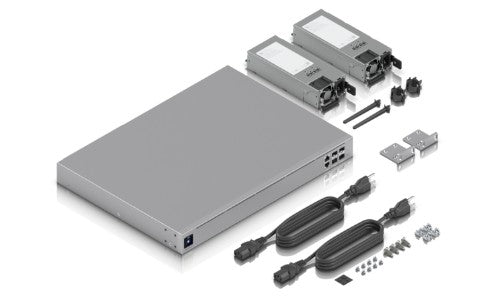

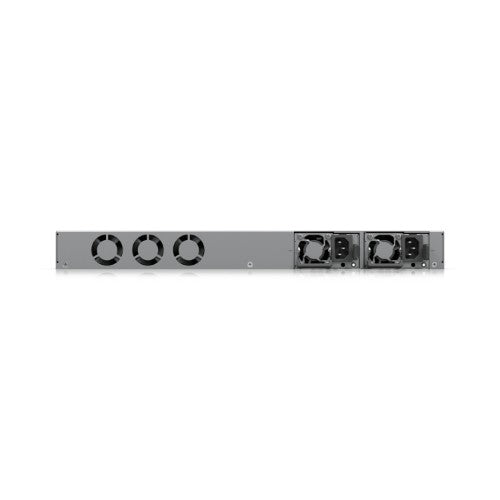

- (2) included hot-swap PSUs for power redundancy
- 1.3" touchscreen
Description
25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.Specifications
| Design | |
|---|---|
| LED indicators | Activity, Link, Ready |
| Mounting type | Rack mounting |
| Rack capacity | 1U |
| Product colour | Grey |
| Enclosure material | Aluminium/SGCC |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 2000 MHz |
| Internal memory | 16000 MB |
| Display type | LCM |
| Control display unit | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Mounting type | Rack mounting |
| Rack capacity | 1U |
| Product colour | Grey |
| Enclosure material | Aluminium/SGCC |
| Protocols | |
| DHCP server | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Sessions per second | 71000 |
| Firewall throughput | 23500 Mbit/s |
| Security | |
| VLAN support | Yes |
| Firewall security | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45), SFP |
| Ethernet LAN (RJ-45) ports | 1 |
| SFP+ ports quantity | 2 |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 7 A |
| Power consumption (max) | 82 W |
| Weight & dimensions | |
| Weight | 6.5 kg |
| Width | 442.4 mm |
| Height | 43.7 mm |
| Depth | 325 mm |
| Packaging content | |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Built-in processor | Yes |
| Processor frequency | 2000 MHz |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication | |
| LED indicators | Activity, Link, Ready |
| Memory | |
| Internal memory | 16000 MB |
| Display | |
| Touchscreen | Yes |
| Display type | LCM |
| Display diagonal | 3.3 cm (1.3") |
| Control display unit | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 2000 MHz |
