GDS Power + Data Dock for Zebra ET4x 8" Tablet with IntelliSkin
Key Features
- Powered dock featuring GDS® Technology™ and RAM® EZ-Roll'r™ with data and charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral; MIL-STD 810G Shock and Vibration tested
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Description

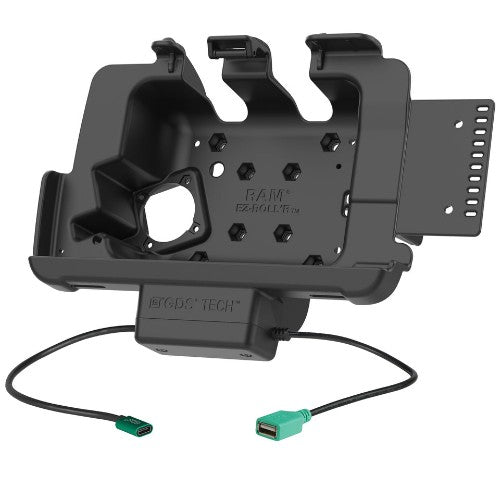

Featuring GDS® Technology™ for data and charging capabilities, the GDS® Vehicle Dock for Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in USB Type A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device.
Specifications
| Design |
|---|
| Device mount type |
Screw mount |
| Orientation |
Horizontal |
| Foldable |
No |
| Mobile device type |
Tablet/UMPC |
| Compatibility |
ET40 8" Tablet with IntelliSkin® Next Gen
ET45 8" Tablet with IntelliSkin® Next Gen |
| Type |
Active holder |
| Proper use |
Universal |
| Product colour |
Black |
| Material |
Composite |
| Interface |
USB |
| Ergonomics |
|---|
| Built-in charger |
Yes |
| Protection features |
Vibration proof, Shockproof |
| VESA mounting |
Yes |
| Maximum VESA mount |
75 x 75 mm |
| Technical details |
|---|
| Mobile device type |
Tablet/UMPC |
| Compatibility |
ET40 8" Tablet with IntelliSkin® Next Gen
ET45 8" Tablet with IntelliSkin® Next Gen |
| Type |
Active holder |
| Proper use |
Universal |
| Product colour |
Black |
| Material |
Composite |
| Interface |
USB |
| Built-in charger |
Yes |
| Performance |
|---|
| Interface |
USB |
| Power |
|---|
| Power source type |
USB |
| Output voltage |
20 V |
| Built-in charger |
Yes |
| Wireless charging |
No |
| Charging port type |
USB Type-C |
| Weight & dimensions |
|---|
| Weight |
576 g |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
