Description
Active holder, Composite, Black

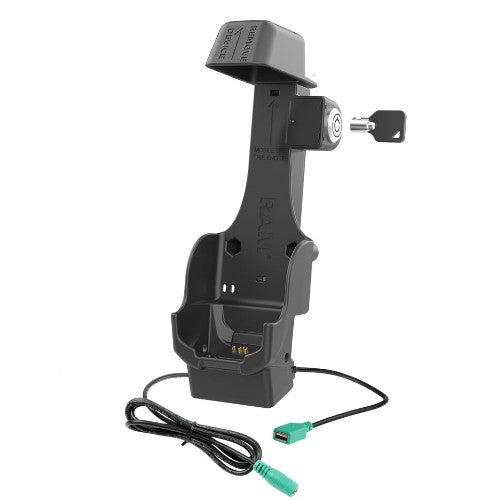

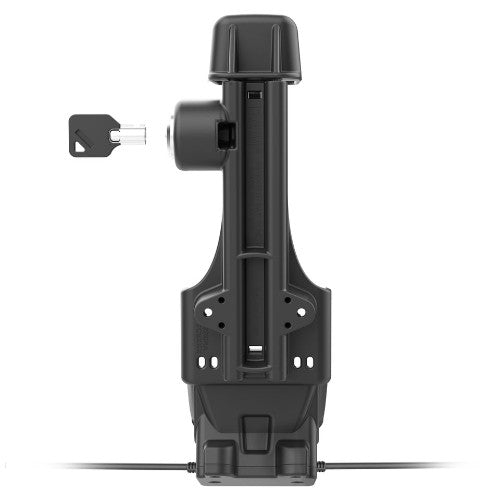

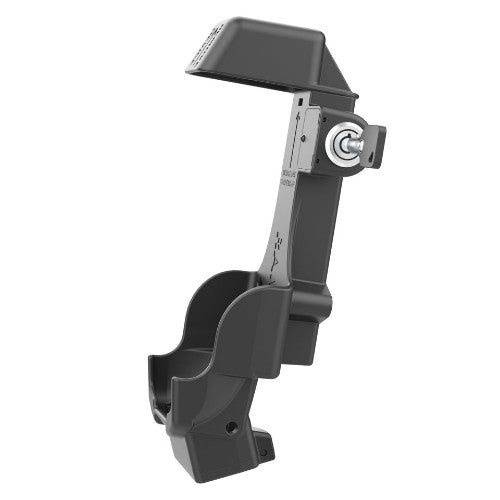

This Locking Power + Data Spring-Loaded Dock (RAM-HOL-ZE26PDLU) features a form-fitting design specifically for the Zebra TC8300. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single peripheral allows for connection to one (1) input device. Thoughtfully designed for easy, one-handed device insertion. Finish the solution by building your mount—these docks are RAM Compatible equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Take advantage of thousands of RAM mounting components to configure the perfect TC8300 solution.
Key Features
- Form-fit powered dock designed specifically for the Zebra TC8300 Touch Computer
- Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device
- Includes a single USB Type-A connector for peripheral support
- Compatible with RAM 2-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Description
RAM Locking Powered Dock + Single USB-A for Zebra TC8300This Locking Power + Data Spring-Loaded Dock (RAM-HOL-ZE26PDLU) features a form-fitting design specifically for the Zebra TC8300. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single peripheral allows for connection to one (1) input device. Thoughtfully designed for easy, one-handed device insertion. Finish the solution by building your mount—these docks are RAM Compatible equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Take advantage of thousands of RAM mounting components to configure the perfect TC8300 solution.
Specifications
| Design | |
|---|---|
| Mobile device type | Handheld mobile computer |
| Type | Active holder |
| Product colour | Black |
| Material | Composite |
| Ergonomics | |
| Built-in charger | Yes |
| Technical details | |
| Mobile device type | Handheld mobile computer |
| Type | Active holder |
| Product colour | Black |
| Material | Composite |
| Built-in charger | Yes |
| Power | |
| Built-in charger | Yes |
| Weight & dimensions | |
| Package type | Polybag |
| Width | 82.5 mm |
| Depth | 103.6 mm |
| Height | 263.1 mm |
| Weight | 435 g |
| Packaging data | |
| Package type | Polybag |
